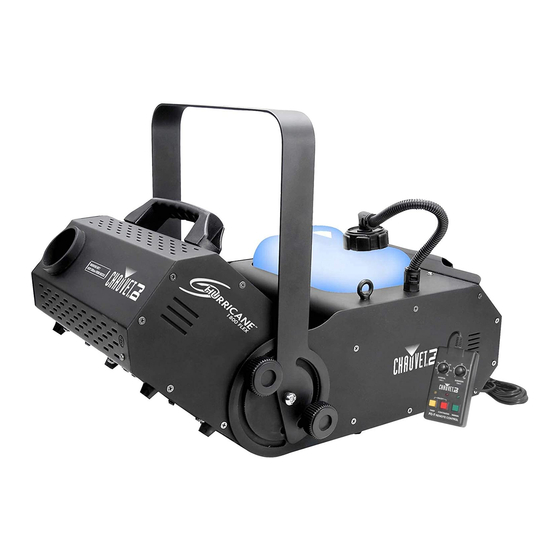

Chauvet Hurricane 1800 Flex User Manual
Hide thumbs
Also See for Hurricane 1800 Flex:
- Quick reference manual (44 pages) ,
- User manual (19 pages) ,
- User manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Chauvet Hurricane 1800 Flex
Summary of Contents for Chauvet Hurricane 1800 Flex

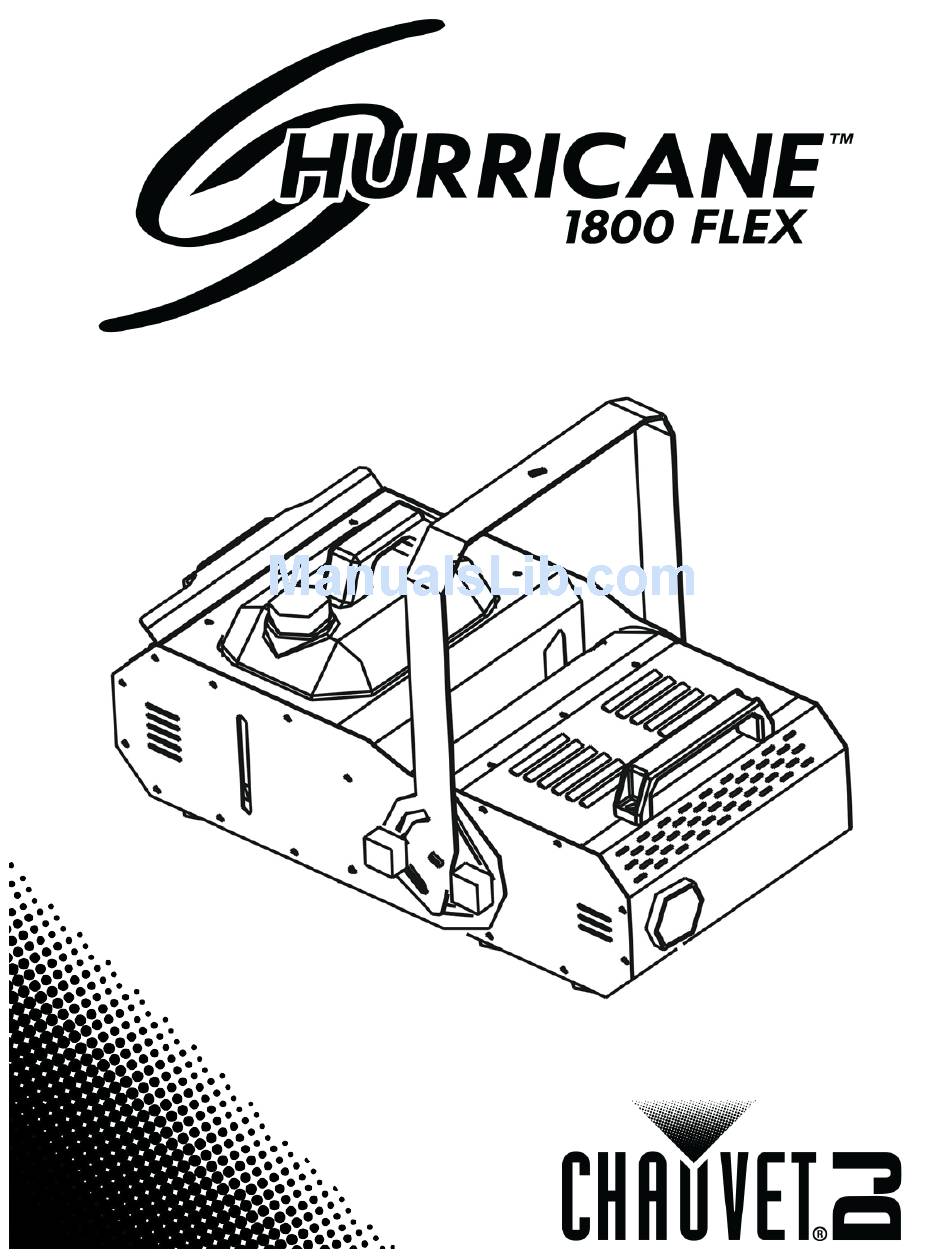

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ............................... 3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance .......................... 4 Safety Notes ............................. 4 2. -
Page 3: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1800 Flex. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your fogger. -
Page 5: Introduction
2. I NTRODUCTION Overview Fog Fluid Tank Remote Control Input 5-Pin DMX DIP Switch In/Out 3-Pin DMX In/Out Breaker Power Cable Manual-Fog Button Back Panel View Power Switch Mounting Bracket Output Nozzle Adjustment Knobs x4 Front View Hurricane 1800 Flex User Manual Rev. 8 Page 5 of 16... -
Page 6: Dimensions
Dimensions 15 in 380 mm 13.4 in 340 mm 22.2 in 563 mm Page 6 of 16 Hurricane™ 1800 Flex User Manual Rev. 8... -
Page 7: Setup
3. S ETUP AC Power This Hurricane 1800 Flex has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation This product may be mounted in a 90° degree angle (horizontal), provided there is adequate room for ventilation. The tank of the product should not move from this position. -
Page 9: Operation
4. O PERATION Remote or The Hurricane™ 1800 Flex can be operated manually, or with the included timer remote controller (FC-T). The Manual button is located on the rear of the unit. See the product Manual Overview. Operation Two other optional remote controls are also available: a manual wired remote (FC-M) and a wireless remote (FC-W). -
Page 10: Auto Cut-Off Feature
Operation information on DMX, download the DMX Primer from Chauvet. Setting the The starting address on the Hurricane™ 1800 Flex is set by using the DIP switch on the rear panel, with a binary version of the address desired. If unfamiliar with binary numbering... -
Page 11: Dmx Quick Reference Chart
DMX Quick Reference Chart DMX Address Quick Reference Chart DIP Switch Position DMX DIP #9 0 0 0 SWITCH SET 0=OFF #8 0 0 0 1=ON #7 0 0 1 X=OFF or ON #6 0 1 0 #1 #2 #3 #4 #5 0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 1 0 0 0 0... -
Page 12: Technical Information
NFORMATION Fogger Do not allow the fogger to become clogged. After every 40 hours of continuous operation, use CHAUVET® Fog Cleaner Quart (FCQ) through the system to prevent the accumulation Maintenance of particulate matter in the heating element. The recommended cleaning procedure is as follows. -
Page 13: General Troubleshooting
45° angle. Empty fluid tank Refill tank with the correct CHAUVET® water-based haze fluid If you still experience problems after trying the solutions presented here, contact Chauvet Technical Support. Hurricane 1800 Flex User Manual Rev. 8... -
Page 14: Technical Specifications
7. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 22.2 in (563 mm) 13.4 in (340 mm) 15 in (380 mm) 27.6 lb (12.5 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection 120 VAC, 60 Hz or... -
Page 15: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 16: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web Pinxton, Nottingham, UK NG16 6NT www.chauvetlighting.co.uk...
