1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂ ash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT2-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

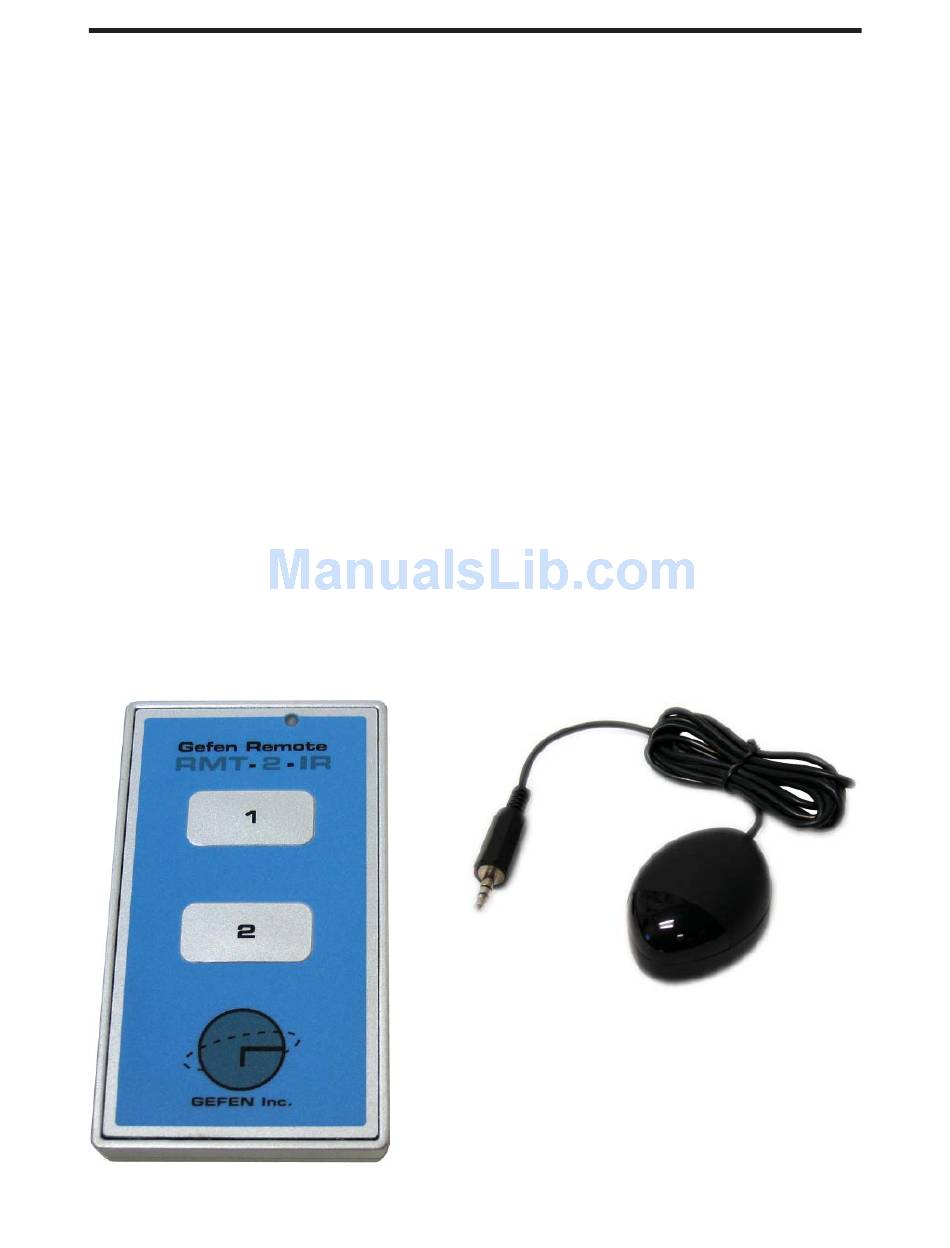

RMT2-IR Installation

The optional IR extender allows you to relo-

cate your 2x1 HDMI Digital Audio Switcher

and still have IR control of the 2x1 HDMI

Digital Audio Switcher
