Summary of Contents for Gefen 1x4

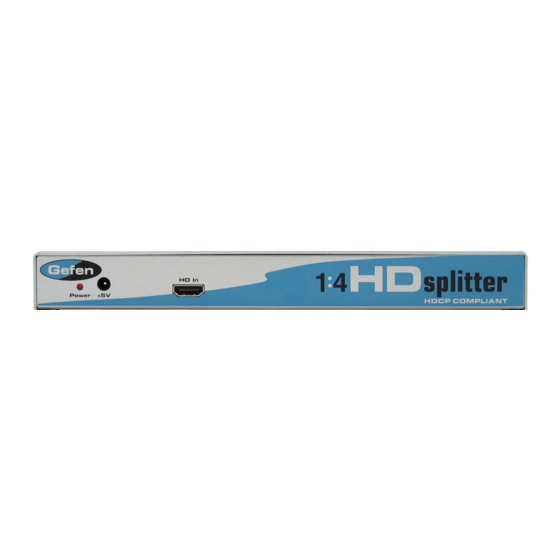

- Page 1 1x4 HD Splitter U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x4 HD Splitter is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved... -
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x4 HD Splitter Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
The 1x4 HD Splitter is connected using a HDMI cable from the HD source to the 1x4 HD Splitter HD input. DVI output 1 is the primary connection and is used for the main dis- play. -
Page 5: Features
• Extends any DVI compliant device by regenerating the DVI signal • Uses a HDMI cable to connect to the input • Uses DVI cables to connect to the output • Installs in seconds Includes: (1) 1x4 HD Splitter (1) 6’ HDMI cable (M-M) (1) 5VDC Power Supply... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 1X4 Hd Splitter
How to Connect the 1x4 HD Splitter to your devices 1- Connect the supplied HDMI cable from the HD device into the 1x4 HD Splitter 2- Connect the cables from your displays (monitor or projector) into the DVI Out slots in the back of the 1x4 HD Splitter 3- Plug the 5v power supply into the 1x4 HD Splitter. -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 GHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200, 1080p HDMI Input Connector ... Type-A 19-pin DVI Output Connector ... DVI-D Power Consumption ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
