Summary of Contents for Gefen GTV-HDMI1.3-142

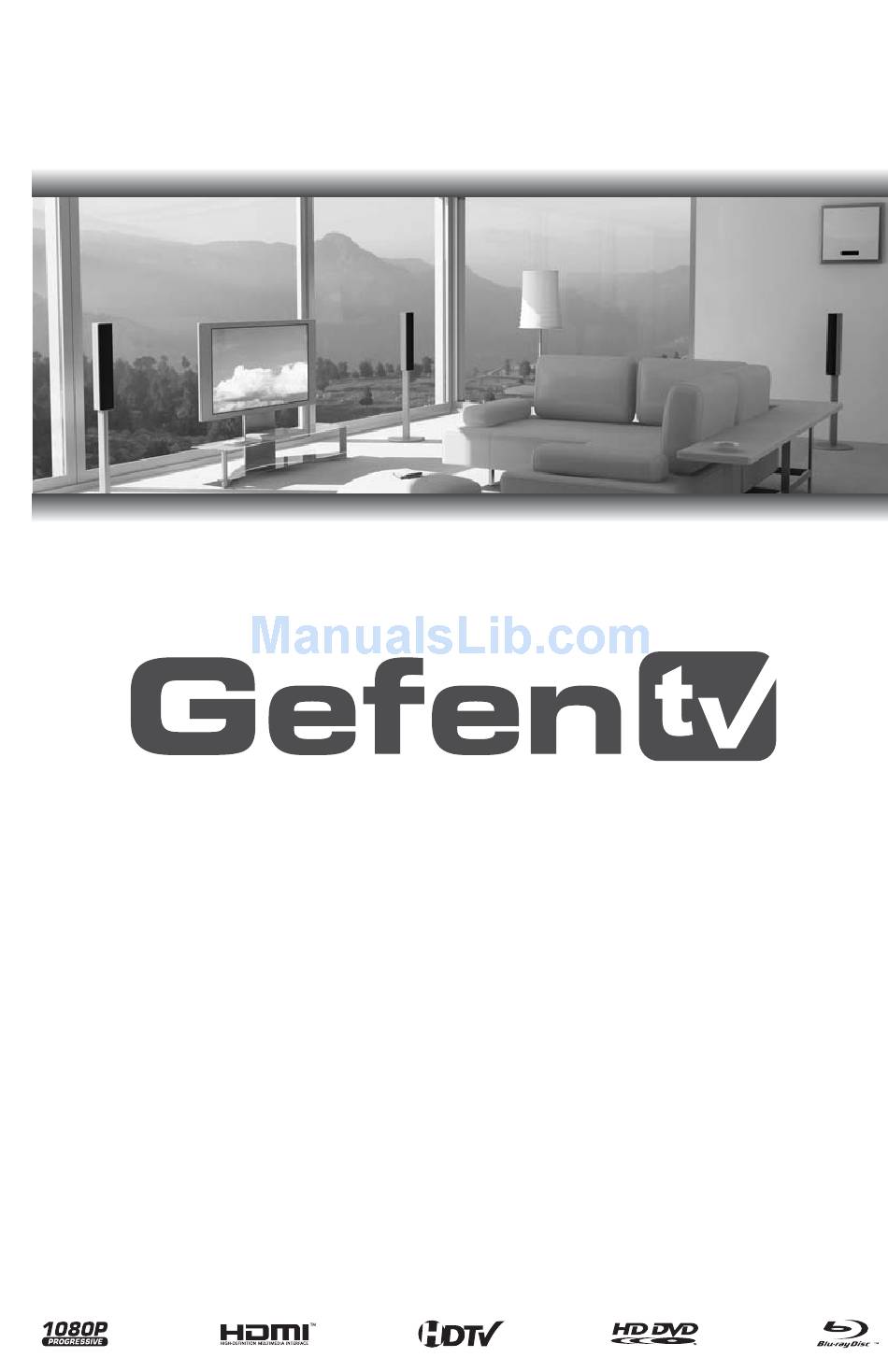

- Page 1 1:2 Splitter For HDMI 1.3 GTV-HDMI1.3-142 User Manual www.gefentv.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Gefen TV 1:2 Splitter For HDMI 1.3 is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Descriptions Connecting And Operating The Gefen TV 1:2 Splitter For HDMI Specifi cations Warranty... -
Page 4: Introduction
How It Works The Gefen TV 1:2 Splitter for HDMI 1.3 is a distribution hub that sends the same HDMI signals to up to two HDTV digital displays. You simply connect your HDMI video source to the 1:2 HDMI 1.3 Splitters HDMI input jack, then connect your HDMI-compatible displays to each of the HDMI outputs. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN TV 1:2 HDMI 1.3 SPLITTER • By default, display information from the display connected to HDMI output port 1 is sent back to the source. Therefore, the other display connected to the 1:2 Splitter for HDMI 1.3 must be capable of accepting the timings... -
Page 6: Features
FEATURES Features • Connects up to two HDMI / DVI displays from one HDMI source • Optionally add more displays by connecting splitters • Easily attains resolutions up to 1080p, 2k, and 1920 x 1200 • HDMI and HDCP compliant HDMI 1.3 Features •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Back Panel Power LED This LED will activate once a valid power source is applied. Internal EDID LED This LED will activate only when the pre-programmed internal EDID is being used. Please see page 6 for more details on the internal EDID. External EDID LED (default EDID routing) This LED will activate only when the external EDID is being used. - Page 8 PANEL DESCRIPTIONS HDMI Input This is the input for the HDMI source device. When a valid source is detected by the splitter, the Link LED will activate. HDMI Out 1 This is the fi rst HDMI output port. Connect a valid HDMI display to this port. When the External EDID mode is active, the EDID form the display connected to this port will be used to send to the source.
-
Page 9: Connecting And Operating The Gefen Tv 1:2 Splitter For Hdmi
CONNECTING AND OPERATING THE 1:2 SPLITTER FOR HDMI 1.3 How to Connect the 1:2 Splitter For HDMI 1.3 Connect the supplied cable from the HDMI source into the 1:2 Splitter for HDMI 1.3 input. 2. Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1:2 Splitter for HDMI 1.3. -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ..............1.2 Volts p-p Input DDC Signal ..............5 Volts p-p (TTL) Single Link Range ............1080p/1920 x 1200 HDMI Connector ............Type A 19 Pin Female Power Supply ..................5V DC Power Consumption ..............
