Summary of Contents for Gefen GTV-HDMI1.3-144
- Page 1 1:4 Gefen TV Splitter GTV-HDMI1.3-144 User Manual www.gefentv.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:4 Gefen TV Splitter is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features / HDMI 1.3 Features / Package Includes Panel Descriptions Connecting and Operating the 1:4 Gefen TV Splitter / EDID Button / Reset Button Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction

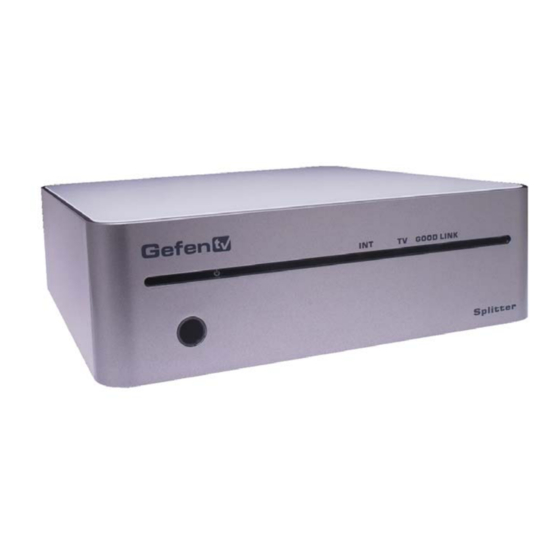

Please call us so we can better assist you with your particular needs. The Gefen TV Splitter The Gefen TV 1:4 Splitter for HDMI allows a single HDMI device to be mirrored to four HDMI displays. When two or more Gefen TV HDMI 1:4 splitter units are connected together, they can be used to create a larger video signal distribution. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 GEFEN TV SPLITTER • Display information (EDID) is sent from the display connected to HDMI output port 1 to the source. If there is no display connected to HDMI output port 1, the remaining HDMI output ports will be scanned in succession and use the fi... -
Page 6: Features / Hdmi 1.3 Features / Package Includes
Deep Color Supported (XV Color Supported) • Color Space Conversion Supported • Dolby TrueHD & DTS HD Master Audio Supported • CEC Pass Through Package Includes (1) Gefen TV Switcher (1) 6' HDMI cable (M-M) (1) 5V DC Power Supply (1) User Manual... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Power Internal EDID Link Indicator LED Indicator Indicator IR Eye Back Panel EDID and Reset HDMI Output 1* Output 2 Output 3 Output 4 Button* Input Power Supply Input *Please see page 5 for additional information... -
Page 8: Connecting And Operating The 1:4 Gefen Tv Splitter / Edid Button / Reset Button
Optionally, you can use a generic 1080i EDID that is pre-stored on the 1:4 Gefen TV Splitter. Please see the below section on how to use this EDID instead of using the EDID from display output 1. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Single Link Range ........1080p/60 12 bit color depth, 1920x1200 HDMI Connector ..............Type A, 19 pin female Dimensions ...............
