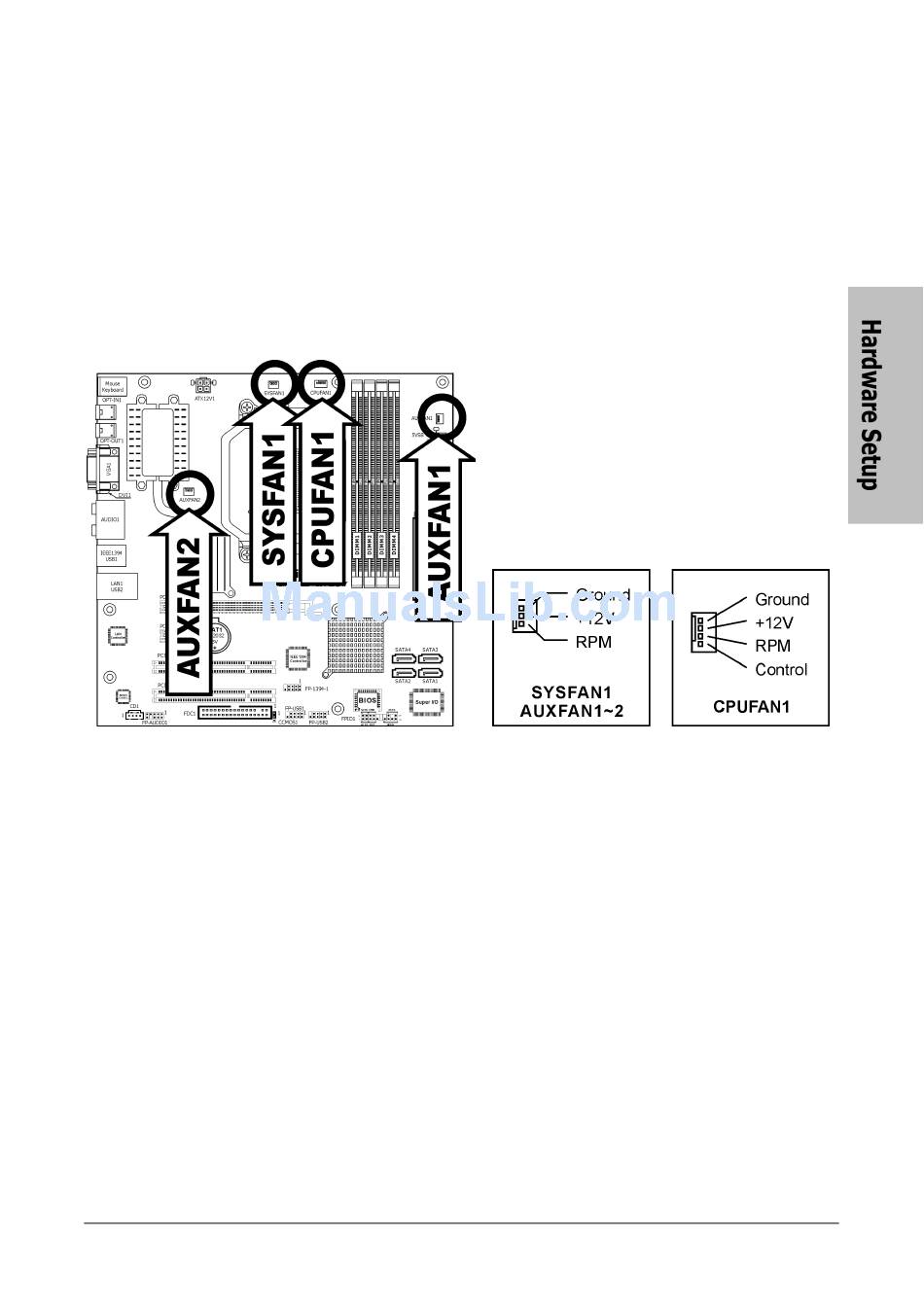

2.4.3 FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
•
CPUFAN1: CPU Fan Power Connector
•
SYSFAN1: System Fan Power Connector
•
AUXFAN1~2: Auxiliary Fan Power Connector
※ These fan connectors are not jumpers. DO NOT place jumper caps on these
connectors.
※ In the situation when connecting a 3-pin CPU fan assembly, and you still want
the speed control function to take effect, you must:
1. Plug the 3-pin CPU fan assembly to "SYSFAN1" fan power connector.
2. In the "PC Health Status" of the BIOS Setup Menu, set the "SYS FanEQ
Reference Temp." from the default "System" to "CPU".
