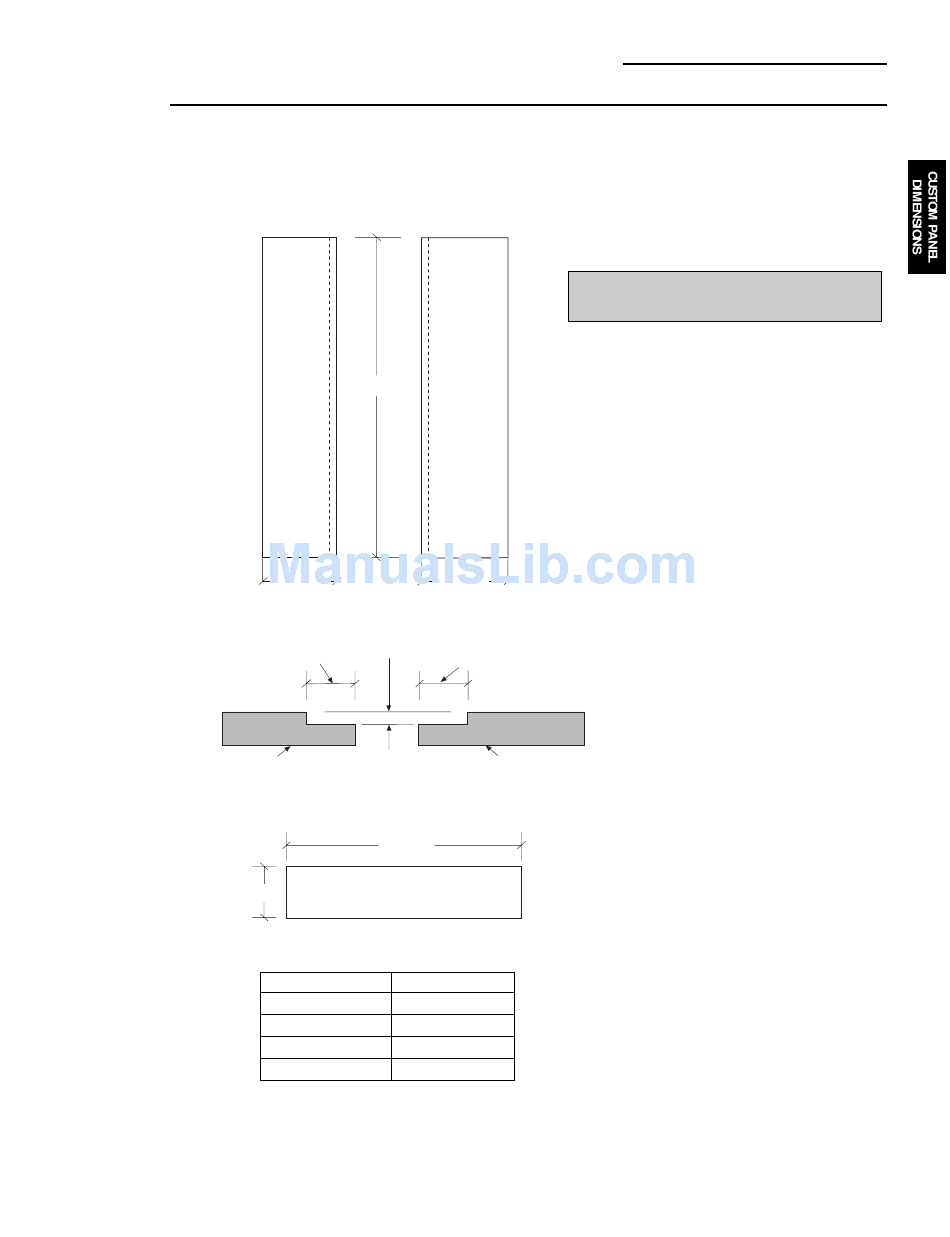

Custom Door Panel Dimensions
Using Trim Kits ZKT42
3/4" thick panel
with custom handle
Freezer Panel
67 15/16"
15 5/16"
Rout panels to specification below on
the handle side of each panel
1 13/16"
1/4"
Freezer Door Face Freezer Door Face
max
Custom Grille Panel
41 1/2"
Over 1/4" Thick (3/4" max) Panel
A
Grille Panel height can vary to fill installation
height.
Installation Height
83"
83-1/2"
84"
84-1/2"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Custom Panel Dimensions
ZIS42N (non-dispenser)
• ZKT42 and ZKHT1 installed together provides for the
installation of 3/4" custom door and grille panels,
using a custom handle, of your choice. Order
ZKHTSS1 for tubular stainless-steel handles. Cut
Fresh Food Panel
panels to size, rout the handle side of the panels as
shown below and install.
Important: Maximum weight for fresh food panels
is 50 pounds and 30 pounds for freezer door panels.
25 5/16"
1 13/16"
Fresh Food Door Face
Dimension A
8-1/4"
8-3/4"
9-1/4"
9-3/4"
42" Built-In Refrigerator
