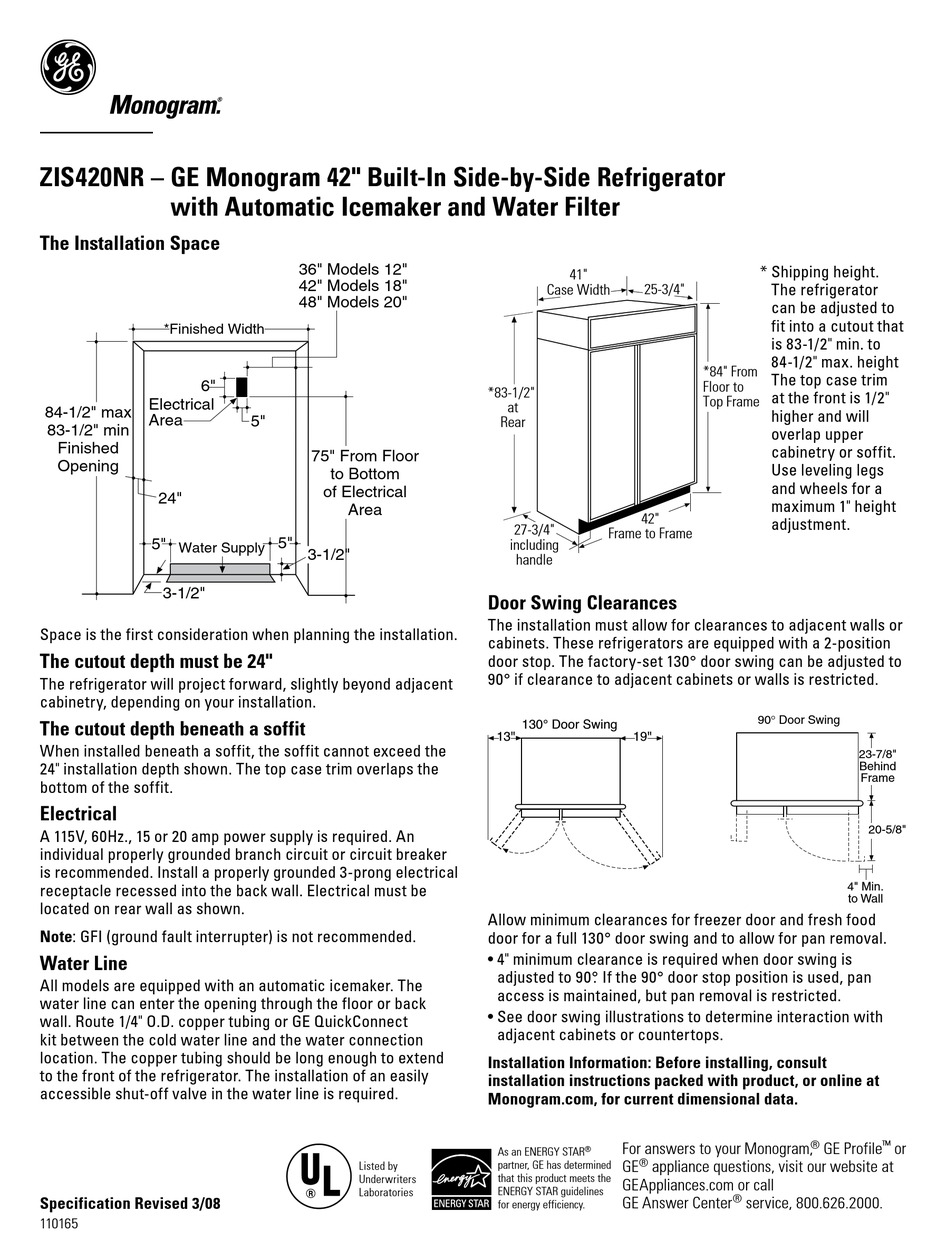

GE Monogram ZIS420NR Datasheet

ZIS420NR – GE Monogram 42" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
The Installation Space
*Finished Width
6"
Electrical
84-1/2" max
Area
83-1/2" min
Finished
Opening
24"
5"
Water Supply
3-1/2"
Space is the first consideration when planning the installation.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
696Dia15
cabinetry, depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route 1/4" O.D. copper tubing or GE QuickConnect
kit between the cold water line and the water connection
location. The copper tubing should be long enough to extend
to the front of the refrigerator. The installation of an easily
accessible shut-off valve in the water line is required.
Specification Revised 3/08
110165
36" Models 12"
42" Models 18"
48" Models 20"
5"
75" From Floor
to Bottom
of Electrical
Area
5"
3-1/2"
Listed by
Underwriters
Laboratories
41"
Case Width 25-3/4"
*83-1/2"
at
Rear
42"
27-3/4"
Frame to Frame
including
handle
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
429Dia8
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
130° Door Swing
13" 19"
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
• 4" minimum clearance is required when door swing is
adjusted to 90° . If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
Installation Information: Before installing, consult
installation instructions packed with product, or online at
Monogram.com, for current dimensional data.
For answers to your Monogram,
®
As an EnErgy StAr
gE ® appliance questions, visit our website at
partner, gE has determined
that this product meets the
gEAppliances.com or call
EnErgy StAr guidelines
gE Answer Center
for energy efficiency.
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2" max. height
*84" From
The top case trim
Floor to
at the front is 1/2"
Top Frame
higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for a
maximum 1" height
adjustment.
90° Door Swing
23-7/8"
Behind
Frame
20-5/8"
4" Min.
to Wall
® gE Profile
®
service, 800.626.2000.
™ or
