9. Warranty
OAKTON warrants this meter to be free from significant deviations in material and
workmanship for a period of one year from date of purchase. OAKTON warrants
this probe to be free from significant deviations in material and workmanship for a
period of six months from date of purchase. If repair or adjustment is necessary and
has not been the result of abuse or misuse within the warrantied time period, please
return—freight prepaid—and correction will be made without charge. OAKTON
alone will determine if the product problem is due to deviations or customer misuse.
Out-of-warranty products will be repaired on a charge basis.
10. Return of items
Authorization must be obtained from your OAKTON distributor before returning
items for any reason. When applying for authorization, please include data regard-
ing the reason the items are to be returned. For your protection, items must be care-
fully packed to prevent damage in shipment and insured against possible damage or
loss. We will not be responsible for damage resulting from careless or insufficient
packing. A restocking charge will be made on all unauthorized returns.
NOTE: We reserve the right to make improvements in design, construction, and
appearance of products without notice.
DISTRIBUTED BY:
OPERATING INSTRUCTIONS
TEMP 4, TEMP 5 and TEMP 6
00702-81
OAKTON WD-35626-00, -10, -20
Acorn Series Meters

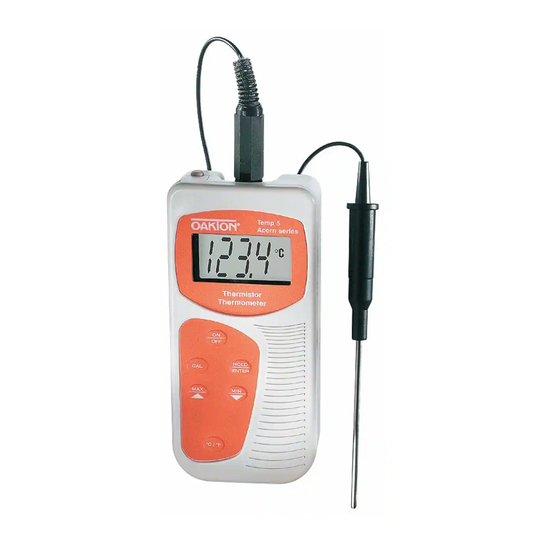

TEMP 5
Acorn series
Thermistor
Thermometer
ON
OFF
HOLD
CAL
ENTER
MAX
MIN
C/ F
Printed in the U.S.A. 6/99
