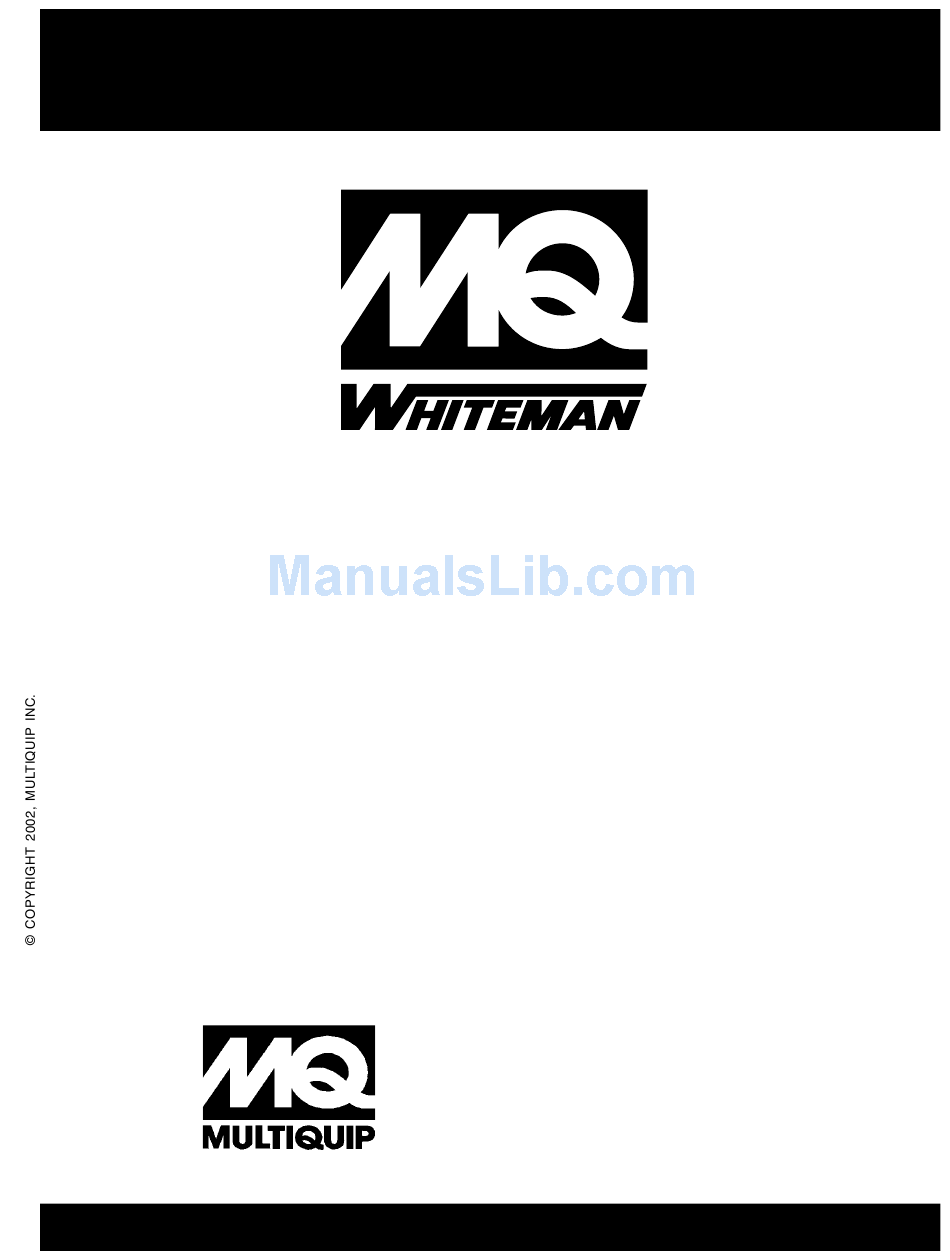

PARTS AND OPERATION MANUAL
Model KD1800/KD6
A.C. GENERATOR
USED WITH MLT SERIES
MODULAR LIGHT TOWERS
Revision #1 (06/16/05)
MULTIQUIP INC. . . . .
18910 WILMINGTON AVE.
CARSON, CALIFORNIA 90746 FAX: 800-672-7877
310-537-3700
800-421-1244
FAX: 310-537-3927
E-mail:mq@multiquip.com
Atlanta • Boise • Dallas • Houston • Newark
Montreal, Canada • Manchester, UK
Rio De Janiero, Brazil • Guadalajara, Mexico
PARTS DEPARTMENT:
800-427-1244
SERVICE DEPARTMENT/TECHNICAL ASSISTANCE:
800-478-1244
FAX: 310-631-5032
•
www:multiquip.com
P/N 29309
