4G6 ENGINE (E - W) -

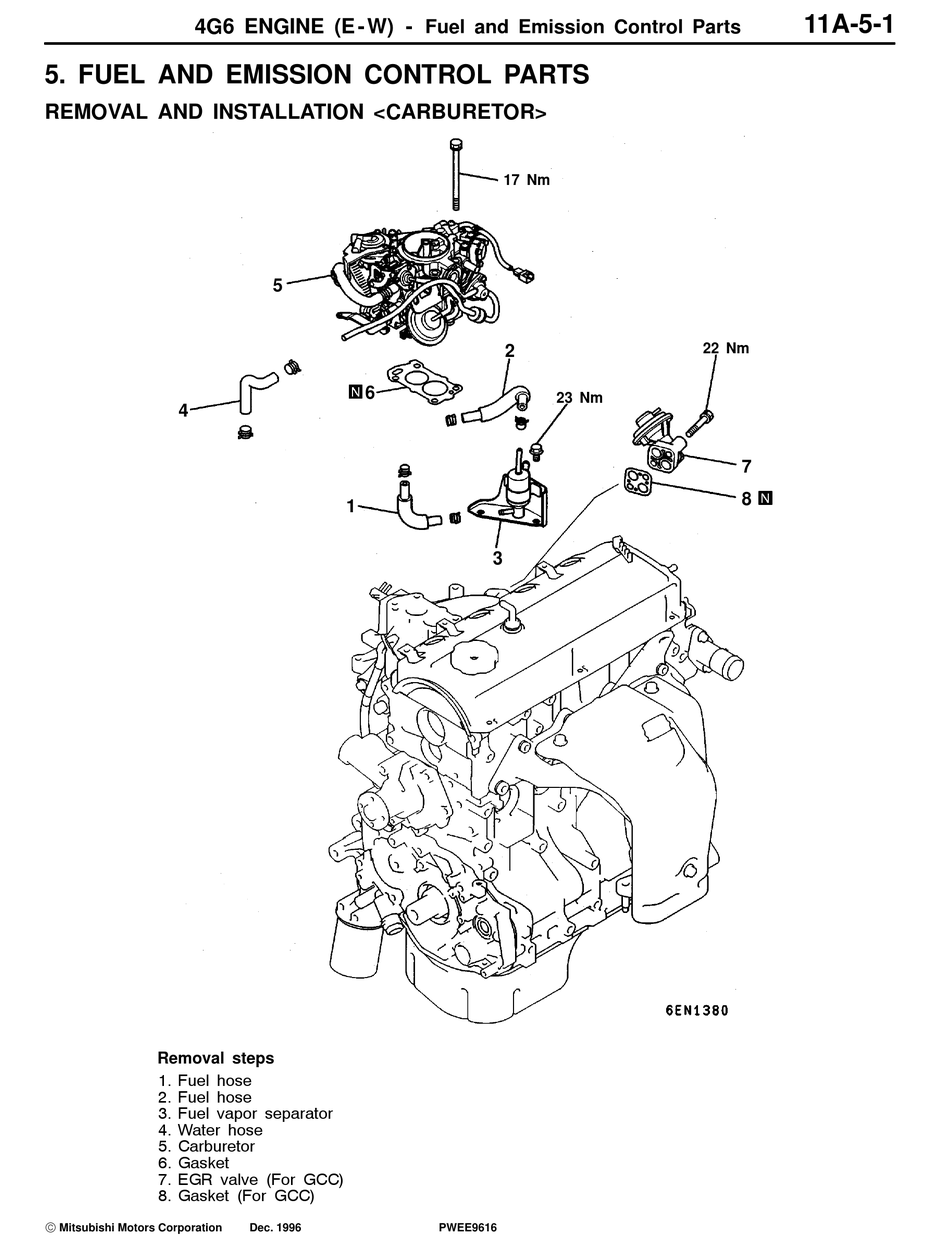

5. FUEL AND EMISSION CONTROL PARTS
REMOVAL AND INSTALLATION <CARBURETOR>
4
Removal steps
1. Fuel hose
2. Fuel hose
3. Fuel vapor separator
4. Water hose
5. Carburetor
6. Gasket
7. EGR valve (For GCC)
8. Gasket (For GCC)
E
Mitsubishi Motors Corporation
Fuel and Emission Control Parts
5
6
1
Dec. 1996
17 Nm
2
23 Nm
3
PWEE9616
11A-5-1
22 Nm
7
8
