Installation instructions.

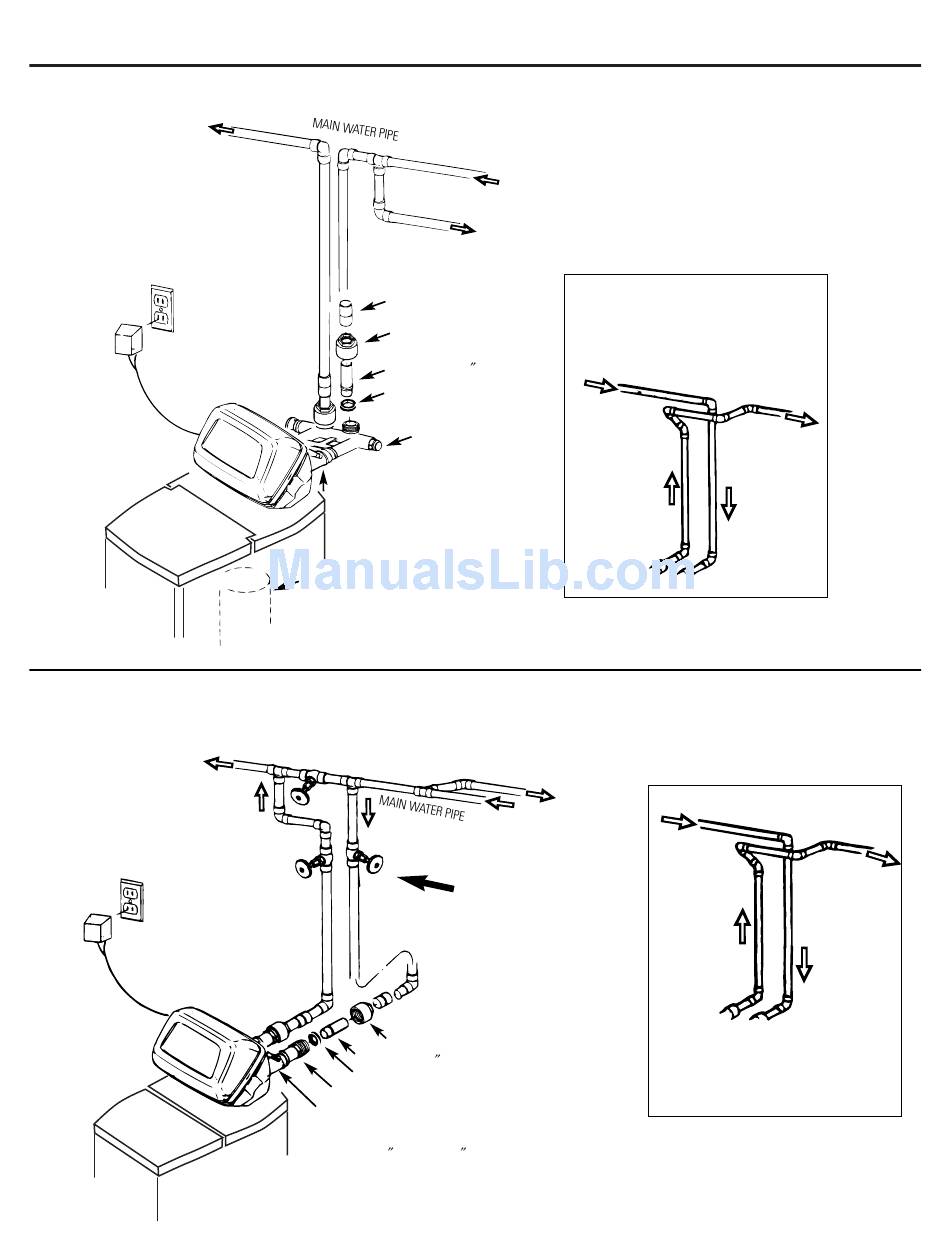

Typical Installation Illustration

Fig. 1
Soft water
120-volt outlet
24V transformer
Optional 3-Valve Bypass Installation Illustration
Adapters for this installation are not supplied with the softener.
To order these adapters, call GE Parts 800-626-2000. Ask for part number WS60X10006.
Fig. 2
Soft water
120-volt outlet
24V transformer
6
Union (2) (not supplied)
Nut (2)
Copper tube, 3/4 (2)
Washer (2)
INLET
Brinewell
NOTE: See Drain Hose
Connections section.
Bypass valve
Inlet valve
Outlet valve
Nut (2)
Copper tube, 3/4 (2)
Washer (2)
Installation adapter (2) (see above)
INLET
Note: Threads on the installation
adapters are 1 male pipe. If 1
pipes are needed, do not use the
copper tubes and nuts included.
Buy 1" pipe thread female
adapter and plumb directly to 1"
threads on installation adapters.
Hard water
Hard water to
outside faucets
Hard water
Bypass Valve
• pull out for service
• push in for bypass
NOTE: Threads on the
bypass valve are 1" male
From softener outlet
pipe. If 1" pipes are
needed, do not use the
copper tubes and nuts
included. Buy 1" pipe
thread female adapter
and plumb directly to 1"
threads.
Hard water to outside faucets
Hard water
3-valve bypass system
For soft water service:
• Open the inlet and outlet
valves
• Close the bypass valve
For bypass hard water:
• Close the inlet and outlet
valves
• Open the bypass valve
CROSS-OVER
Use if water supply flows from the left.
Include single or 3-valve bypass.
Soft water
To softener inlet
Hard water
From softener outlet
CROSS-OVER
Use if water supply flows from the left.
Include single or 3-valve bypass.
Soft water
To softener inlet
