INSTALLATION

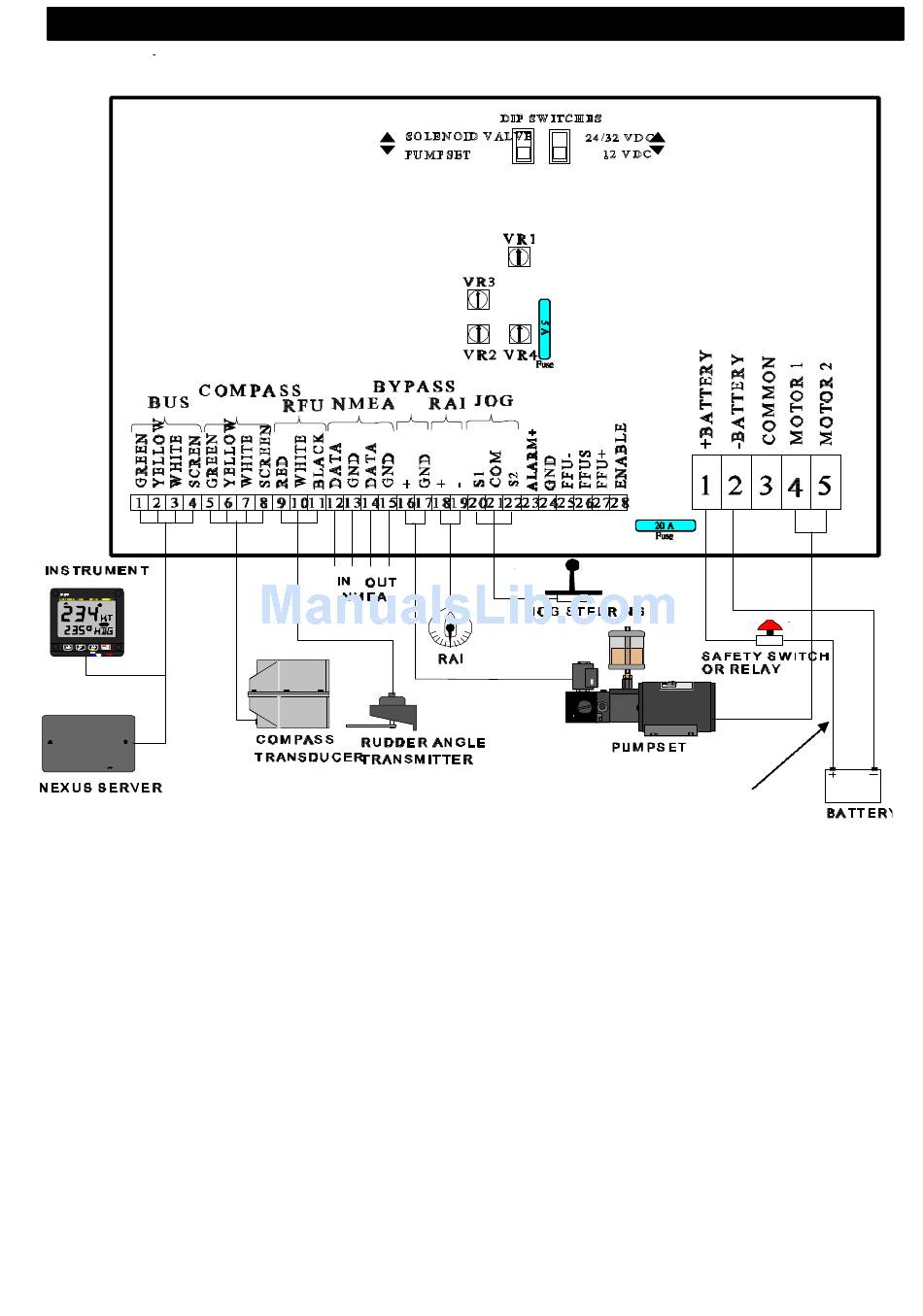

Connect 20 Amp fuse

9.5.4 Safety switch

Important! An external safety switch or circuit breaker (relay) (not supplied) should be
installed in line with power input. Make sure it is rated greater than or equal to 25 Amps.
This switch will serve as your Autopilot ultimate safety OFF switch.

9.5.5 Dip switches

The main circuit board has 2 dip switches which must be pre-set during installation to suit
the installed configuration.
Important! With power turned off to the system, do the following:
a) Locate dip switch for 12 or 24/32 VDC voltage and make sure it is set to the voltage
supply connected.
b) Locate dip switch for "solenoid valve" or "pumpset" and make sure it is set to the type of
drive you have installed.
