4 OPERATION

3 Operation

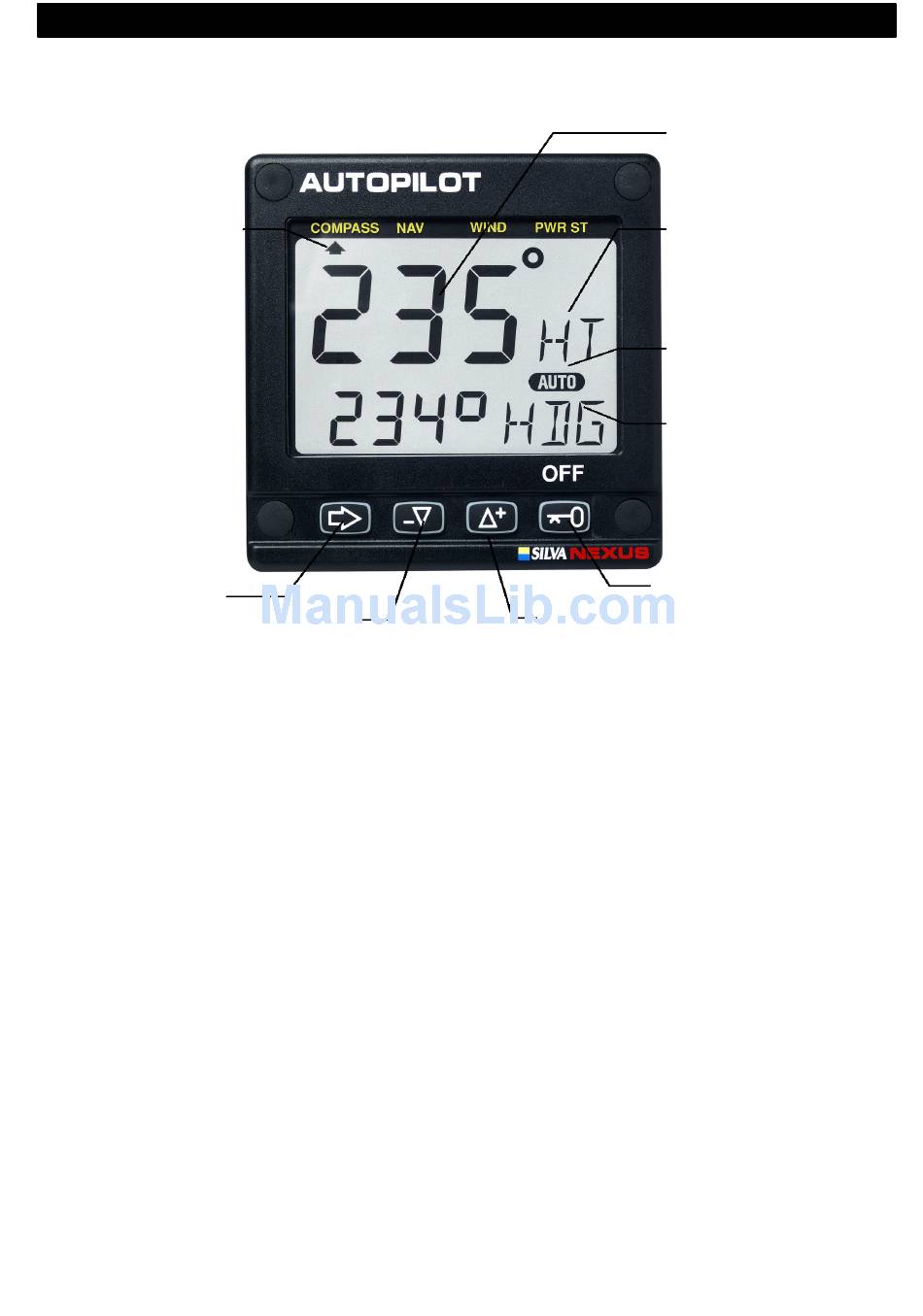

3.1 Instrument overview

Page-
arrow
Reference
course /
angle
MODE

3.1.1 Instrument display

The display consists of two lines, a top-line with 24 mm (1") digits and a
lower-line with 13 mm (0.5") digits.

3.1.2 Instrument pages and functions

The Autopilot instrument has its functions divided into 4 pages. The
page names are printed above the display:
COMPASS, NAV (Navigation), WIND and PWR ST (Power steer)
The selected function is indicated by the page-arrow at top of the dis-
play.

3.1.3 Instrument modes

Standby mode: The instrument functions as a passive compass re-
peater.
Autopilot mode: When any Autopilot function is activated.
Setup mode: It allows calibrating your Network settings.
Edit mode: It allows editing settings (when digits are flashing).

3.1.4 Instrument power on/off

You will switch on/off your Nexus instruments by using the instrument
switch on your electrical panel as the instruments have no separate
power on/off-button.
OPERATION
LEFT
RIGHT
9
Top-line
Heading
Function
on
Autopilot
Lower -line
function text
KEY
