3 OPERATION

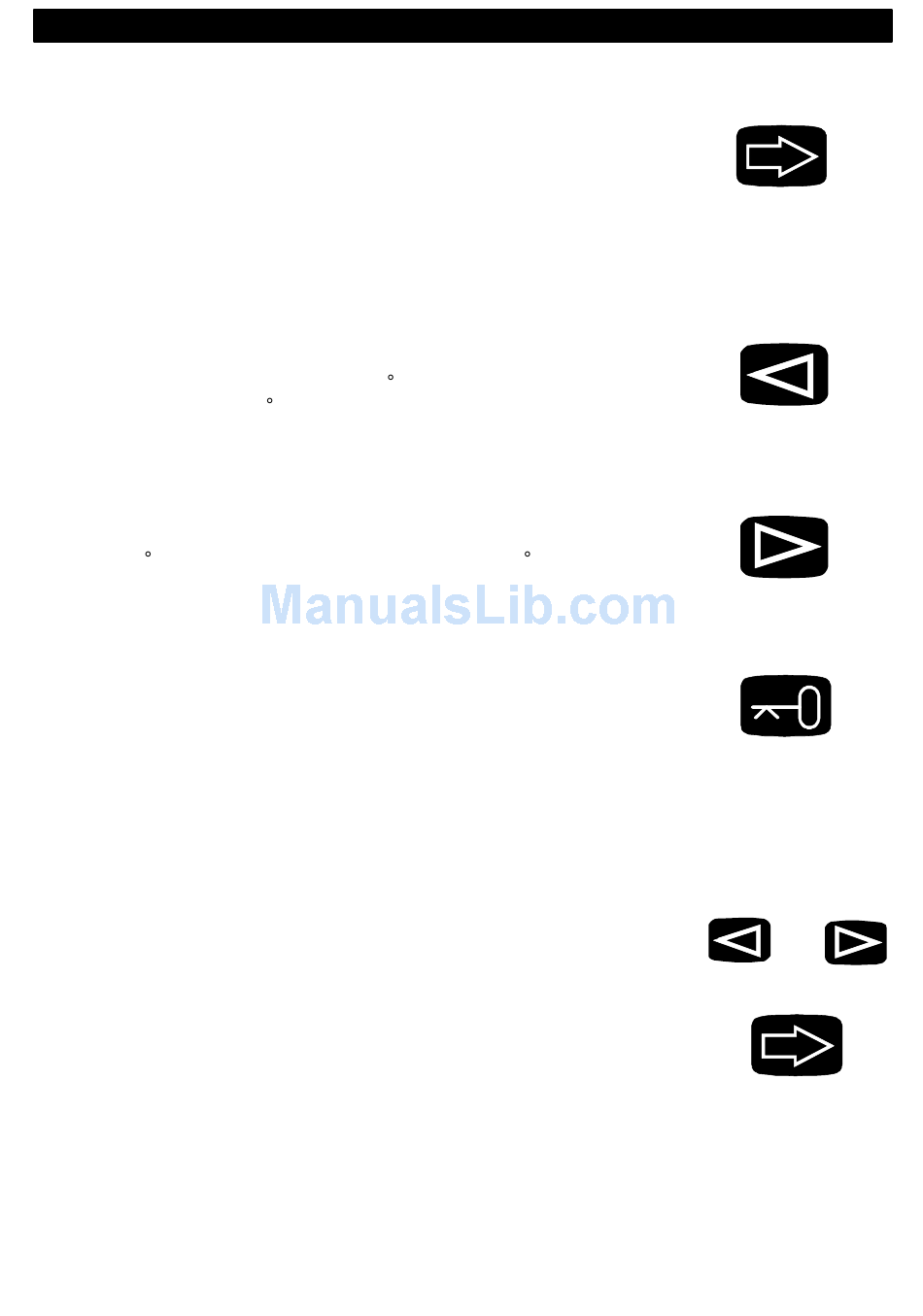

3.2 How to use the push-buttons

3.2.1 MODE

A press on MODE, moves one page to the right, indicated by the page-
arrow at top of the display.
In edit mode, a press on MODE moves the cursor one step to the right.
It scrolls in a circular pattern, one step for every press.

3.2.2 LEFT

When the Autopilot is activated, a short press on LEFT
decreases the course by 1 , a long press decreases the
course by 10
In setup mode a press on LEFT moves to the previous setup function.
In edit mode a press on LEFT decreases a digit by one.

3.2.3 RIGHT

When the Autopilot is activated, a short press on RIGHT increases the
course by 1 , a long press increases the course by 10
In setup mode a press on RIGHT moves to the next setup function.
In edit mode a press on RIGHT increases a digit by one.

3.2.4 KEY

A press on KEY activates the Autopilot in selected steering function.
A second press on KEY turns off the Autopilot.
The text OFF is printed above KEY, which also is coloured red.
In setup mode, a press on KEY unlocks a digit to access edit mode.
When unlocked, the digits are "active" (flashes) and can be edited by
pressing LEFT, RIGHT and MODE as required.
When finished editing, lock the digit by another press on KEY.

3.2.5 Clear

A press on LEFT and RIGHT together, clear digits in edit mode.

3.2.6 Setup mode

To access setup mode, press and hold MODE more than 2 seconds.
[Lit OFF] flashes. To move to next setup group, press MODE again.
To return to standby mode, press KEY when the text return [RET] is
displayed.

3.2.7 Lighting

The instrument uses red back lighting for the display and the 4 push-
buttons. The light can be set at 4 different levels.
