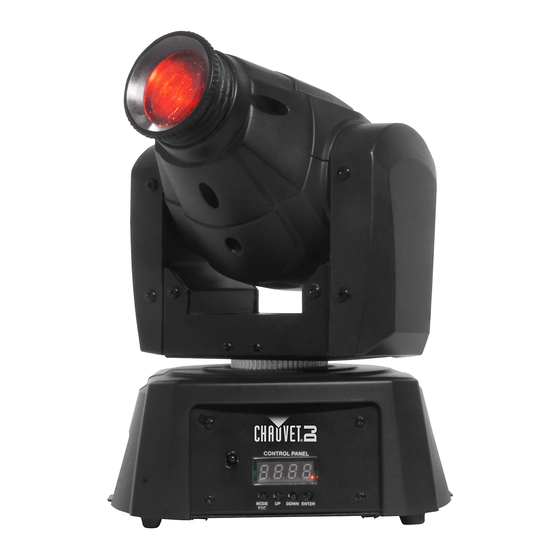

Chauvet Intimidator User Manual
Spot 100 irc
Hide thumbs
Also See for Intimidator:
- Quick reference manual (136 pages) ,
- User manual (28 pages) ,
- Features & specification (1 page)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chauvet Intimidator
Summary of Contents for Chauvet Intimidator

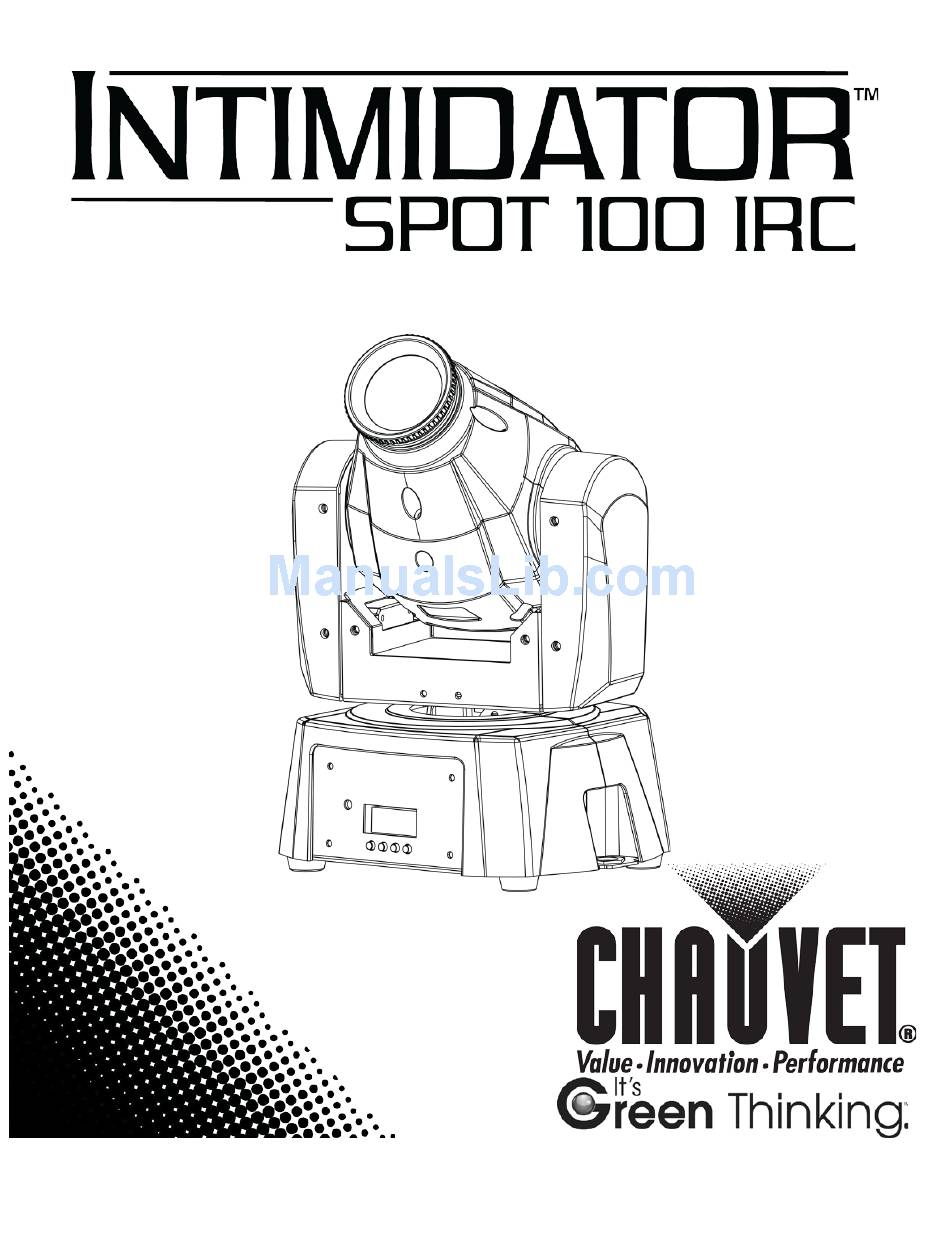

- Page 1 User Manual...
-
Page 2: Table Of Contents
Reset Software ..........................16 Load Factory Defaults ........................16 Master/Slave Mode ..........................17 5. Technical Information ....................18 Product Maintenance ........................ 18 6. Technical Specifications ....................19 Returns ............................. 20 Contact Us ..........................20 Page 2 of 20 Intimidator™ Spot 100 IRC User Manual... -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1—512... -
Page 4: Product At A Glance
This product is not intended for permanent installation. · Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 20 Intimidator™ Spot 100 IRC User Manual... -
Page 5: Introduction
2. I NTRODUCTION Overview Focusing Moving Lens Yoke Control Panel and Buttons Sensor Front Panel View DMX In Power In Fuse Holder Safety Loop Back Panel View DMX Out Intimidator™ Spot 100 IRC User Manual Page 5 of 20... -
Page 6: Dimensions
Dimensions 11.6 in 295 mm 7.8 in 5.8 in 198 mm 148 mm Page 6 of 20 Intimidator™ Spot 100 IRC User Manual... -
Page 7: Setup
3. S ETUP AC Power The Intimidator™ Spot 100 IRC has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or... -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator™ Spot 100 IRC may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
Load LoAd Load factory defaults While in NSti mode, the Intimidator™ 100 IRC also responds to the IRC. When using the IRC in this mode, changes in programming levels and settings will show on the display. Intimidator™ Spot 100 IRC User Manual... -
Page 10: Configuration (Dmx)
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Intimidator™ Spot 100 IRC uses up to 11 DMX channels in its 11-channel personality name/single DMX mode, which defines the highest configurable address to 502. -
Page 11: Dmx Channel Modes, Assignments, And Values
Reset pan 168 ó 187 Reset tilt 188 ó 207 Reset color wheel 208 ó 227 Reset gobo wheel 228 ó 247 Reset all channels 248 ó 255 No function Intimidator™ Spot 100 IRC User Manual Page 11 of 20... -
Page 12: 11-Channel (Cont.)
112 ó 119 Gobo 1 shake, slow to fast 120 ó 127 Open 128 ó 191 Cycle effect with increasing speed 192 ó 255 Reverse cycle effect with increasing speed Page 12 of 20 Intimidator™ Spot 100 IRC User Manual... -
Page 13: Configuration (Standalone)
Press <ENTER>. To select the movement macro: Select NoPr and press <ENTER>. Use <UP> or <DOWN> to select 01—09. Note: No macro is selected if you choose 00. Press <ENTER>. Intimidator™ Spot 100 IRC User Manual Page 13 of 20... -
Page 14: Nsti Operating Mode (Cont.)
Use <UP> or <DOWN> to select 000—100 (slow to fast). Press <ENTER>. While in NSti mode, the Intimidator™ 100 IRC also responds to the IRC. When using the IRC in this mode, changes in programming levels and settings will show on the display. -
Page 15: Irc Operation
IRC Operation Note: Make sure to point the IRC directly at the receiver. The following IRC buttons are used with the Intimidator™ Spot 100 IRC: · <BLACKOUT> - turns LED on/off · <AUTO> - activates Automatic mode · <SOUND> - activates Sound-Active mode ·... -
Page 16: Manual Pan/Tilt Operation
Use <UP> or <DOWN> to select the desired tilt operation. Press <ENTER>. Pan/Tilt Angle You are able to select the range for the pan and tilt angles on the Intimidator™ Spot 100 IRC to achieve the effect you like. Range To select the pan angle range, do the following: Press <MODE/ESC>... -
Page 17: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single Intimidator™ Spot 100 IRC unit (the “master”) to control the actions of one or more Intimidator™ Spot 100 IRC units (the “slaves”) without Mode the need of a DMX controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave mode. -
Page 18: Technical Information
Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint. Always dry the external optics and glass/transparent surfaces carefully after cleaning them. Do not spin the cooling fan/fans using compressed air because you could damage it/them. Page 18 of 20 Intimidator™ Spot 100 IRC User Manual... -
Page 19: Technical Specifications
Cooling System 104 °F (40 °C) Fan-cooled I/O Connectors Connector Type Channel Range 3- XLR Sockets 6, 11 Ordering Product Name Item Code Item Number Intimidator™ Spot 100 IRC 08010755 781462211035 Intimidator™ Spot 100 IRC User Manual Page 19 of 20... -
Page 20: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
