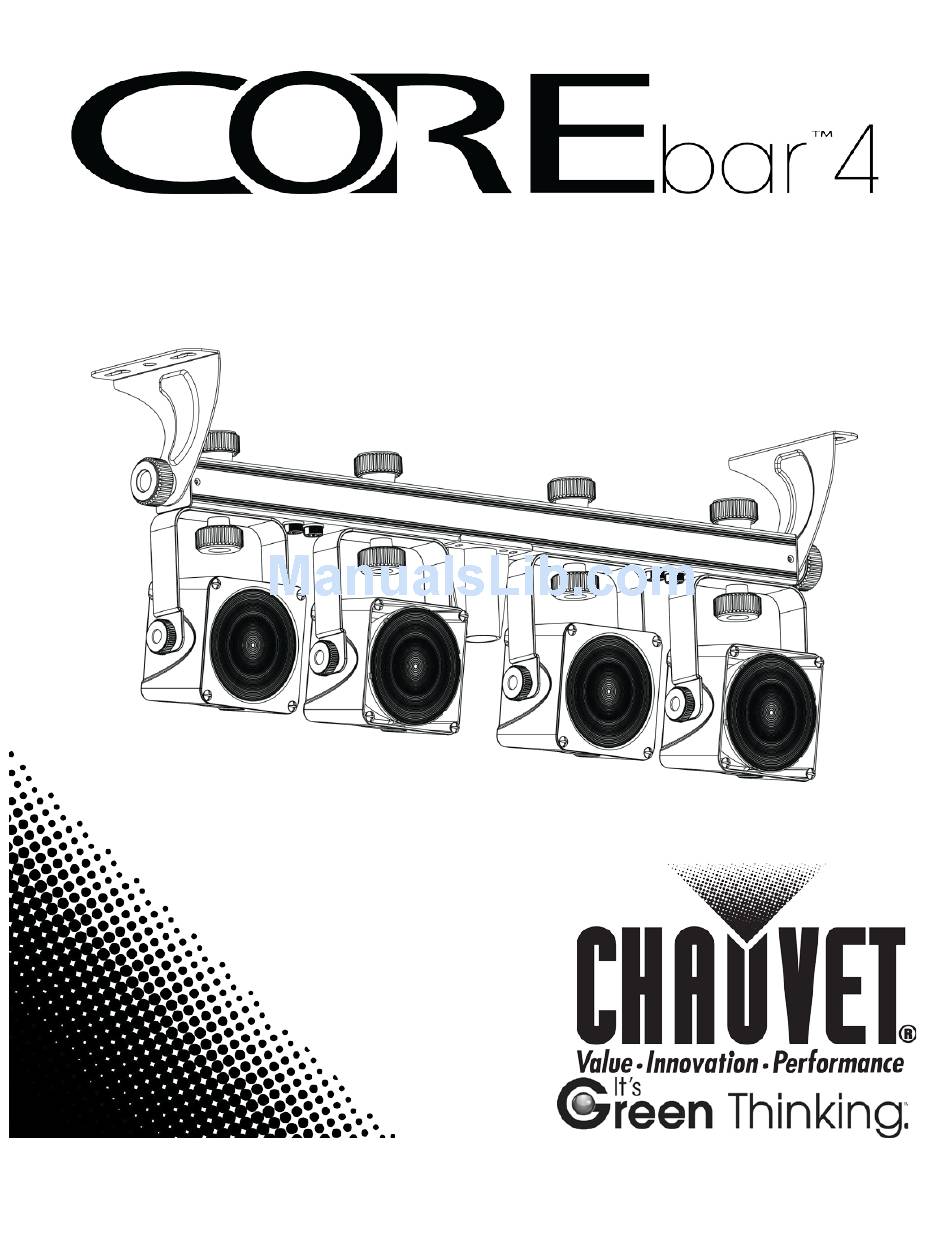

- Page 1 User Manual...
-
Page 2: Table Of Contents
Footswitch Operation ......................... 12 Master/Slave Mode ..........................13 Footswitch Master/Slave Connection ....................13 5. Technical Information ....................14 Product Maintenance ........................ 14 6. Technical Specifications ....................15 Returns ............................. 16 Contact Us ..........................16 Page 2 of 16 COREbar™ 4 User Manual... -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1—512... -

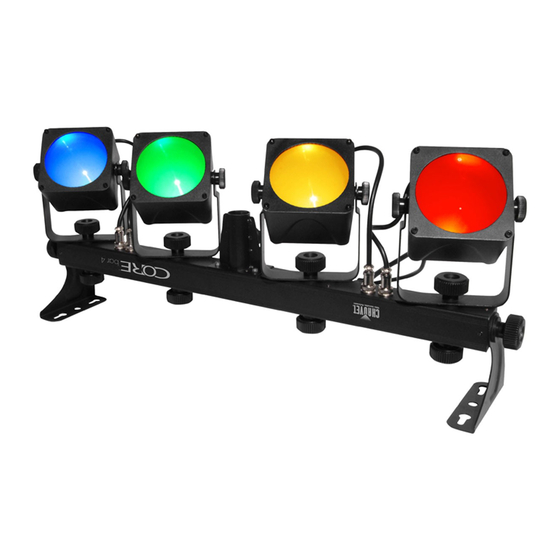

Page 4: Product At A Glance
This product is not intended for permanent installation. · Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 16 COREbar™ 4 User Manual... -
Page 5: Introduction
Overview Sound Sensitivity DMX Out Knob Light Adjustment Footswitch Knob (x 4) Connection Display and DMX In Control Buttons Power In Microphone Fuse Holder Power Outputs for Additional Products Back Panel View COREbar™ 4 User Manual Page 5 of 16... -
Page 6: Dimensions
Dimensions 29.5 in 749 mm 11.2 in 285 mm 5.3 in 135 mm Page 6 of 16 COREbar™ 4 User Manual... -
Page 7: Setup
3. S ETUP AC Power The COREbar™ 4 has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Power Linking
Product Product Additional Products You can power link up to 8 COREbar™ 4 units on 120 VAC or up to 16 COREbar™ 4 units on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET®... -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The COREbar™ 4 may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Address The COREbar™ 4 uses up to 15 DMX channels in its 15-channel DMX mode, which defines the highest configurable address to 498. If unfamiliar with DMX, download the DMX Primer from www.chauvetlighting.com. -
Page 11: Dmx Channel Modes, Assignments, And Values
000 ó 255 0—100% Green 4 (Pod 4) 000 ó 255 0—100% Blue 4 3-Channel Channel Function Value Setting 000 ó 255 0—100% 000 ó 255 0—100% Green 000 ó 255 0—100% Blue COREbar™ 4 User Manual Page 11 of 16... -
Page 12: Configuration (Standalone)
To use the footswitch: Power the product on. Connect the footswitch to the COREbar™ 4 with the 4-pin connection cable with plug. Press pedal #1 (Presets) to activate control. When working, all the LEDs will light white, which is the first function of pedal #1. -
Page 13: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single COREbar™ 4 unit (the “master”) to control the actions of one or more COREbar™ 4 units (the “slaves”) without the need of a DMX Mode controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave mode. -
Page 14: Technical Information
Softly wipe any dirt or grime to the outside edges of the external optics or glass/transparent surface. · Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint. Always dry the external optics and glass/transparent surfaces carefully after cleaning them. Page 14 of 16 COREbar™ 4 User Manual... -
Page 15: Technical Specifications
I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 3, 15 Tripod Stand Height 4.7 to 7.6 ft (1.4 to 2.3 m) Ordering Product Name Item Code UPC Number COREbar™ 4 03030730 781462210786 COREbar™ 4 User Manual Page 15 of 16... -
Page 16: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
