PERIODIC MAINTENANCE AND ADJUSTMENT
1. Do not touch the glass part of the bulb.

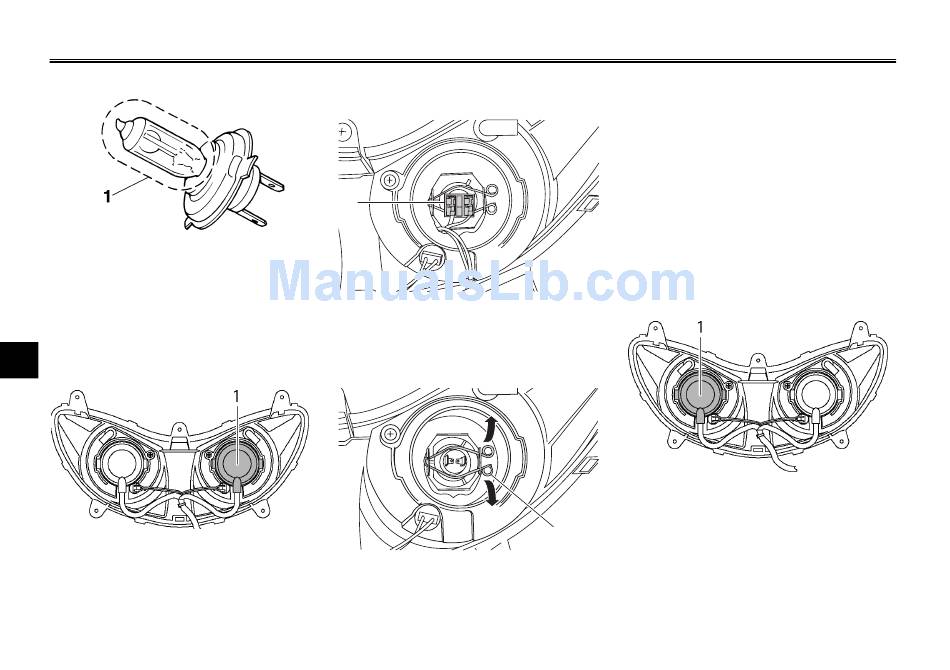

To replace the low beam headlight
bulb
1. Remove panel A. (See page 6-7).
2. Remove the headlight bulb cover.
6
1. Headlight bulb cover
3. Disconnect the headlight coupler.
1
1. Headlight coupler
4. Unhook the headlight bulb hol-
der, and then remove the burnt-
out bulb.
1. Headlight bulb holder
6-27
5. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
6. Connect the headlight coupler.
7. Install the headlight bulb cover.
8. Install the panel.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
To replace the high beam
headlight bulb
1. Remove panel A. (See page 6-7).
2. Remove the bulb cover.
1. Headlight bulb cover
1
3. Unhook the headlight bulb holder
by turning it counterclockwise,
and then remove the burnt-out
bulb.
