Billion BiPAC 6300NX Features & Specifications

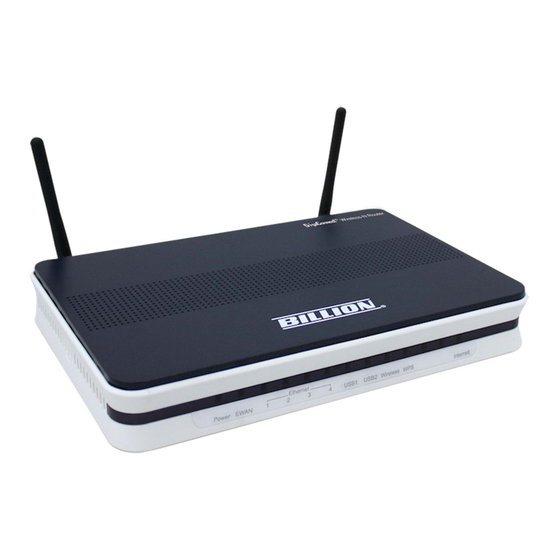

BiPAC 6300NX
Fibre/4G LTE/Cable Gigabit Wireless-N VPN Broadband Router
The BiPAC 6300NX is an advanced broadband router with Gigabit LAN and WAN for home, SOHO and office users
that offers flexible and multiple ways to enjoy high-speed and high-level secure Internet connectivity The Dual WAN
interface allows connection to current superfast fibre connections (FTTC) and future ultra-fast connectivity
(FTTP/FTTH), with WAN throughput in excess of 900Mbps. Two USB ports on the rear of the router will support
3G/4G LTE services from selected dongles for high-speed mobile connectivity, including load-balancing functionality.
Failover between fixed line and mobile connectivity also quickly and smoothly ensures maximum Internet uptime. With
an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN ports, the gateway enables faster
wireless speeds of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mpbs Ethernet LAN. The
BiPAC 6300NX provides a unique Management Center, enabling users to monitor 3G/4G LTE signal strength,
bandwidth, download speed, and much more.
3G/4G Mobility and Always-On Connectivity
With the BiPAC 6300NX you can connect a 3G/4G LTE USB modem to either one or both of its built-in USB ports,
allowing you to watch movies, download music or access e-mail no matter where you are. You can even share your
Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed
line access. In addition, the auto failover feature ensures maximum connectivity and minimum interruption by quickly
and smoothly connecting to a 3G/4G LTE network in the event that your fixed line fails. The BiPAC 6300NX will then
automatically reconnect to the fixed line connection when it's restored, ideal for office situations where a constant and
uninterrupted connection is critical.
Maximize Bandwidth
Via Dual WAN connectivity, the BiPAC 6300NX device supports superfast fibre connections through the Gigabit
Ethernet WAN port and next generation mobile connectivity via two USB 2.0 ports. Using load balancing, both links
can be in use all the time. Moreover, bandwidth can be manually managed in the form of a percentage and load
balancing to maximize bandwidth of outbound traffic.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, the router delivers up to 3 times the wireless coverage of a
802.11b/g network device, so that wireless access is available everywhere in the house or office. If your network
requires wider coverage, the built-in Wireless Distribution System (WDS) allows you to expand your wireless network
without additional wires or cables. The BiPAC 6300NX also supports the Wi-Fi Protected Setup (WPS) standard and
allows users to establish a secure wireless network just by pressing a button. Multiple SSIDs allow users to access
different networks through a single access point. Network managers can assign different policies and functions for
each SSID, increasing the flexibility and efficiency of the network infrastructure.
Secure VPN Connections
The BiPAC 6300NX supports comprehensive and robust IPSec VPN (Virtual Private Network) protocols for business
users to establish private encrypted tunnels over the public Internet to secure data transmission between
headquarters and branch offices. It also supports VPN dial in from smart phones (Android/ iPhone) for secure remote
Internet connection via your home broadband. With a built-in DES/3DES VPN accelerator, the router enhances IPSec
VPN performance significantly.
3G/4G LTE Management Center
The BiPAC 6300NX Cellular Management Center visually displays its current 3G/4G LTE signal status and
upload/download speed. It also calculates the total amount of hours or data traffic used per month, allowing you to
manage your 3G/4G LTE monthly subscriptions.
IPv6 Ready - Pathway to the Future
The BiPAC 6300NX fully supports IPv6 (Internet Protocol Version 6), launched as the current IPv4 range is filling up,
and IPv6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual stack
means the router is capable of running IPv4 and IPv6 in parallel during the transition period. With Billion IPv6 enabled
devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid deployment)
are supported to be adapted easily into service provider's IPv4/IPv6 network. *1
WPA/WPA2
3G/4G LTE
Fibre
Gigabit
Ready
● Dual-WAN ports - Gigabit Ethernet WAN
(EWAN) and 3G/4G LTE for broadband
connectivity
● Auto failover feature to ensure an always-on
connectivity
● 802.11n wireless AP with high-speed
wireless connection up to 300Mbps data rate
● Supports Wi-Fi Protected Setup (WPS) and
WPA-PSK/WPA2-PSK
● Gigabit WAN and LAN
● Fibre (FTTC/FTTP/FTTH) ready with high
WAN throughput
● Embedded IPSec, PPTP and L2TP VPN
endpoint/server with powerful encryption
● 24 VPN tunnels
● 4-port Gigabit Ethernet switches
● IPv6 ready (IPv4/IPv6 dual stack)
● Dual-Stack Lite and 6RD (IPv6 rapid
deployment) *1
● Two USB ports for NAS and 3G/4G LTE USB
modem
● Load balancing to maximize bandwidth of
outbound traffic
● QoS for traffic prioritization and bandwidth
management
● Multiple wireless SSIDs with wireless guest
access and client isolation
● Supports IPTV applications *2
● Ideal for SOHO, office, and home users
