Installing SoundStation IP 3000 - 3COM NBX

Preparing for Installation

If you are installing the SoundStation IP
yourself, first:
Verify that your system administrator
has prepared the network and IP
telephony infrastructure for the
SoundStation IP 3000 - 3COM NBX.
For information on setting up your NBX
Telephony System, please refer to the
applicable 3COM documentation.

Installing and Connecting to the Network

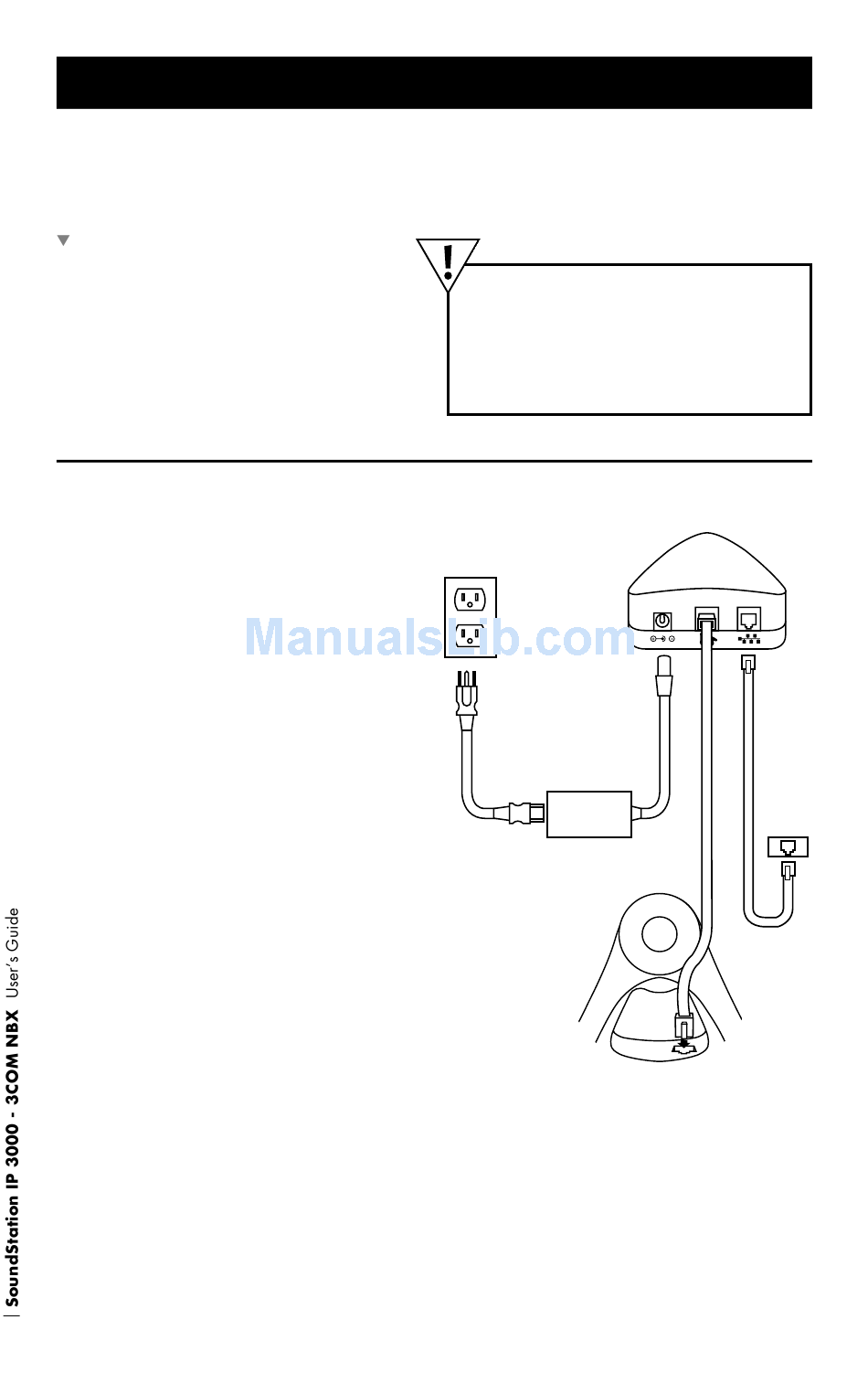

To install the SoundStation IP and connect
it to the network, complete the following
steps.
Place the SoundStation IP on a flat
1
surface (such as a conference room table
or desktop), with a power outlet and a
data network port nearby.
Connect one end of the 6 ft. data cable
2
to your data network port.
Connect the other end to the network
(LAN) port on the PIM.
Connect the 25 ft. data cable to
3
the RJ-45 port on the bottom of the
SoundStation IP. (The other end of this
cable is pre-plugged into the PIM.)
Connect the power adapter to the AC
4
adapter port on the PIM.
Plug the other end into a standard
5
electrical power outlet in the wall.
2
Note: a special license key is required on
the NBX to enable this phone to operate.
Caution: Be sure to read the Release
Notes (online at www.polycom.com)
and both the Parts List and the Safety
Notices sections in this guide before
you set up and use this product.
5
AC Power
4
AC Adapter
3
PIM
2
Data
Network
Port
Bottom of IP 3000
RJ-45 Port
