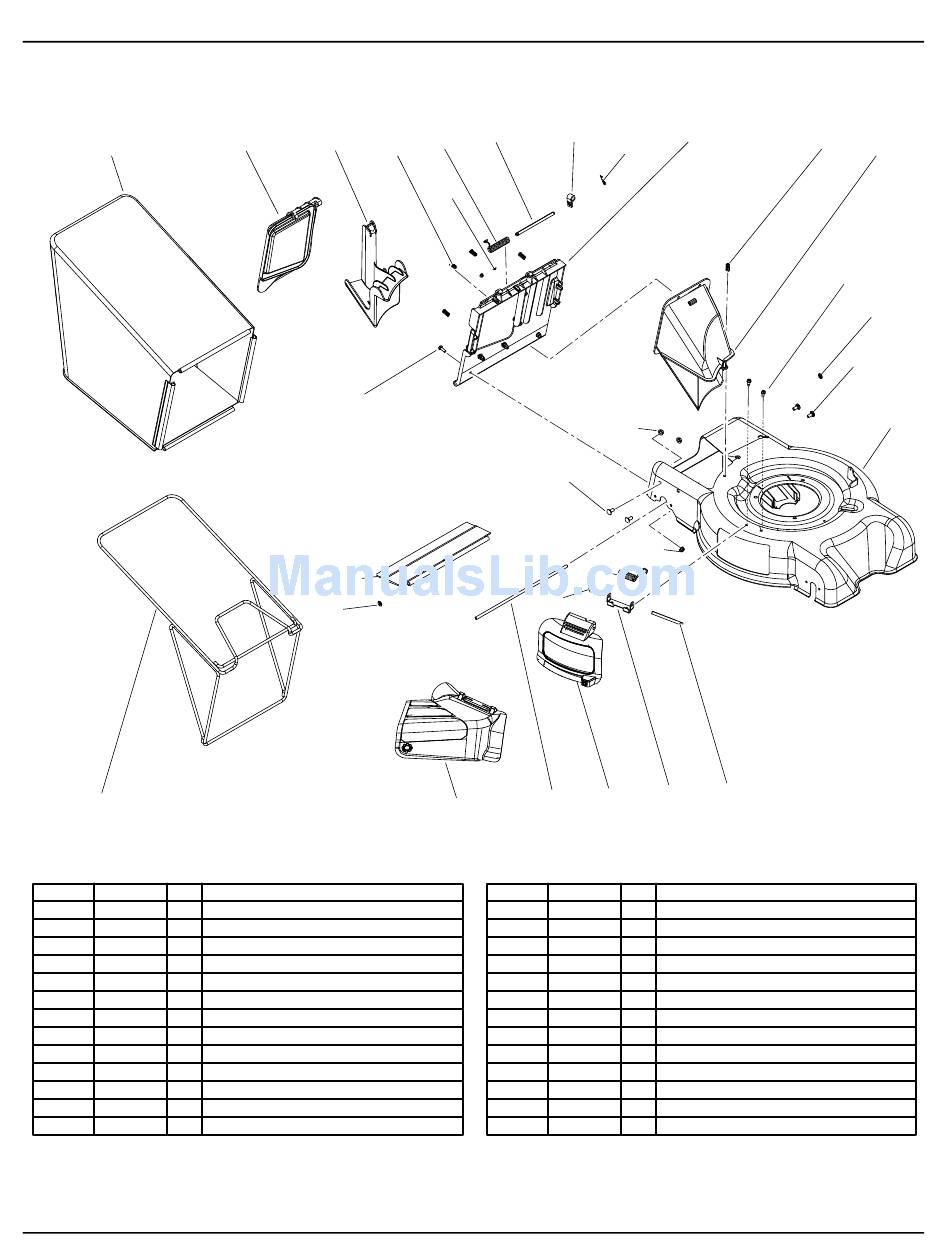

Mower Deck And Bagger - Ariens Razor Push Parts Manual

10
25
BOM ID Number Qty Description
1 00475800 1 PIN, 5/16 X 5.80"
2 04514651 1 BRKT, HINGE LM
3 04514800 1 CHUTE, SIDE DISCHARGE - LM
4 04514900 1 COVER, SIDE DISCHARGE - LM
5 04534000 1 PIN, SIDE DISCHARGE
6 04534300 1 PLUG, MULCH
7 04534400 1 GUARD, REAR
8 04534600 1 DOOR, REAR
9 04534700 1 HANGER, BAG
10 04535900 1 BAGGER, GRASS
11 06713500 1 PIN, HAIR INT .08X.18X1.18 Y
12 04547900 1 DOOR, BAGGER
13 04556200 1 ROD, REAR GUARD
M D
OWER
6 16
8
21
7
14
B
ECK AND AGGER
Model All
1 15
19
17
20
18
14
13
3
BOM ID Number
14 06514900
15 06900512
16 07400101
17 07500301
18 08300535
19 08322400
20 06215700
21 05946800
22 06543100
23 07400034
24 04540659
25 04520659
26 06543500
8
9
11
22
26
5
2
4
Qty Description
3 NUT, PUSH .312
1 CLAMP, LM CABLE
11 SCR-TAP 12-14 X .75 PLSTITE
2 PLUG, 5/16 HOLE, .125 MATL PLASTIC
1 SPRG, TORSION
1 SPRG, TORSION
4 BLT-RDHDSQNK .31-18 X .75
2 BLT-HEX .25-20 X .75
2 NUT, LK-TOP-FLG .25-20
2 SCR-TAP .25-20 X .50 HWH TR
1 WLDMT, 21" LM DECK SHELL ARIENS
1 FRAME, BAGGER
4 NUT, LK-TOP-FLG .31-18 YWZC
16
12
23
14
20
24
