Ariens Razor Push Service Manual

Hide thumbs Also See for Razor Push:
Table of Contents

Advertisement

Quick Links

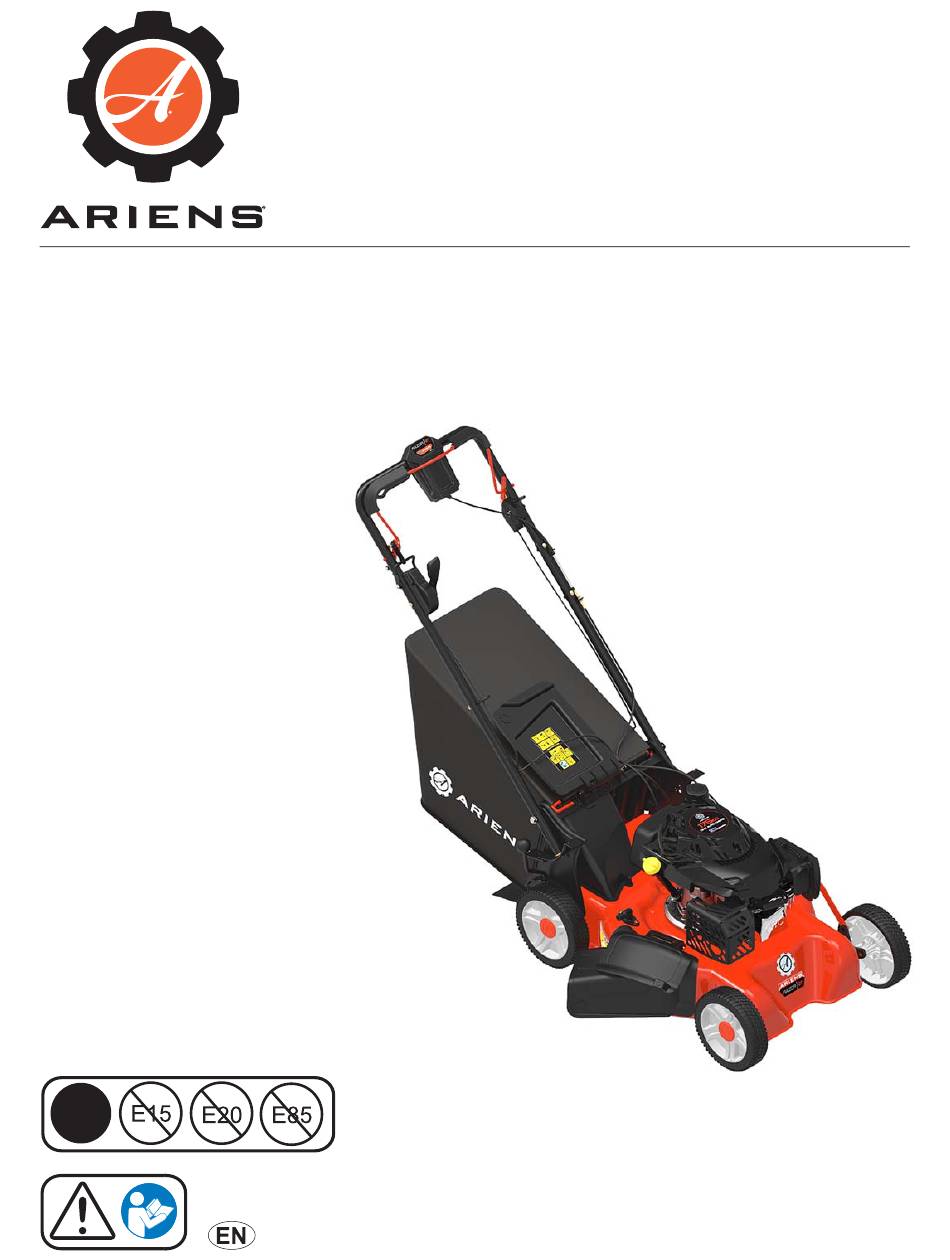

Service Guide
®
Razor
Models
911173 – Razor Push
(SN 055000 +)
911175 – Razor SP
(SN 055000 +)
911177 – Razor SP, BBC
(SN 055000 +)
911179 – Razor SP, ES
(SN 055000 +)
911188 – Razor SP
(SN 055000 +)
911189 – Razor SP, BBC
(SN 055000 +)
911190 – Razor SP, ES
(SN 055000 +)
911373 – Razor Push
(SN 055000 +)
911375 – Razor SP
(SN 055000 +)
911379 – Razor SP, ES
(SN 055000 +)
E10
ENGLISH
05088730A • 8/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Razor Push and is the answer not in the manual?

Questions and answers

Related Manuals for Ariens Razor Push

Summary of Contents for Ariens Razor Push

  • Page 1 Service Guide ® Razor Models 911173 – Razor Push (SN 055000 +) 911175 – Razor SP (SN 055000 +) 911177 – Razor SP, BBC (SN 055000 +) 911179 – Razor SP, ES (SN 055000 +) 911188 – Razor SP (SN 055000 +) 911189 –...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRACTICES & LAWS ......2 EMISSION CONTROL SYSTEM ....2 REQUIRED OPERATOR TRAINING.
  • Page 3 Installing unauthorized parts will not automatically void the warranty; however, the warranty will not apply if the installation and use of unauthorized parts damages the unit. The Ariens warranty applies solely to defects in Ariens materials and / or factory workmanship. Ariens disclaims liability for any claims or damages –...

  • Page 4: Practices & Laws

    Failure to follow these instructions and warnings may cause death or serious 4. Notice injury. If you have purchased this product from an Ariens NOTICE: Indicates information or procedures that are dealer, the dealer can provide you with training.

  • Page 5: Safety Decals

    SAFETY DECALS Stop engine, remove key, and read manual The safety decals on your machine are visual reminders of before making any repairs or adjustments. the important safety information in this manual. All messages on your unit must be fully understood and carefully followed.

  • Page 6: Safety Rules

    Children are often attracted to have the unit inspected and repaired by an authorized the machine and the mowing activity. NEVER assume that Ariens dealer before using. children will remain where you last saw them. Models 911177, 911189: Be alert and turn mower off if a child enters the area.
  • Page 7 This product is equipped with an internal combustion type Operating Conditions engine. DO NOT use unit on or near any unimproved, Watch for traffic when operating near or crossing forest-covered or brush covered land unless exhaust roadways. system is equipped with a spark arrester meeting Clear the area of objects such as rocks, wire, toys, etc., applicable local, state or federal laws.
  • Page 8 Use only Ariens Company-recommended attachments Storage that are appropriate to your use and can be used safely in NEVER store unit with fuel in fuel tank, inside a building your application.

  • Page 9: Draining Fuel System

    DRAINING FUEL SYSTEM CHECK DRIVE BELT Move unit to an open, well-ventilated area with no Models 911175, 911177, 911179, 911188, 911189, 911190, 911375, 911379 flames or sparks. Place unit in service position. See Service Position on Remove fuel tank cap and siphon fuel into a clean page 7.

  • Page 10: Replace Drive Belt

    REPLACE DRIVE BELT Disconnect drive cable spring from belt guide. See Figure 6. Remove Drive Belt IMPORTANT: Retain hardware for reinstallation. Models 911175, 911179, 911188, 911190, 911375, 911379 For Models 911177, 911189, advance to step 11. Place unit in service position. See Service Position on page 7.
  • Page 11 See Figure 8. 13. Remove blade. Refer to Operator’s Manual for instructions. Remove belt from engine sheave and remove engine sheave from crankshaft. 14. Using a needle nose pliers, compress drive cable anchor tabs and remove anchor from deck. See Remove belt from around crankshaft.
  • Page 12 See Figure 12. CAUTION: AVOID INJURY. Clutch is under 16. Loosen clutch cable adjustment nuts. spring tension. Use care when releasing spring 17. Remove cable adjustment barrel from cable bracket. from spring anchor. See Figure 14. 19. Position a pry bar or similar tool through anti-rotation arm to stabilize clutch and remove shoulder bolt.
  • Page 13 See Figure 15. 25. Remove hardware retaining inner belt guides and remove guides. See Figure 17. 21. Remove clutch spring from spring anchor. 22. Remove hardware retaining clutch and remove clutch. Figure 17 26. Remove belt from engine sheave and remove engine Figure 15 sheave from crankshaft.
  • Page 14 All Models See Figure 21. 27. Place unit in operating position and position a sturdy 32. Remove one flat steel washer, one spacer and a support, such as a wood block, under rear mower second flat steel washer from each axle end. deck edge so wheels do not contact work surface.
  • Page 15 See Figure 22. 34. Place cutting height adjustment lever in the 6.4 cm (2 1/2”) position. Figure 24 Figure 22 40. Remove drive belt and discard. See Figure 23. 35. Remove hardware retaining rear axle assembly to deck. IMPORTANT: Mounting hardware is present on both sides of unit.

  • Page 16: Install Drive Belt

    Install Drive Belt See Figure 27. Position belt around crankshaft. See Figure 25. Align engine sheave keyway with crankshaft key and Install belt onto drive pulley. reinstall engine sheave onto crankshaft. Secure belt guide to gearbox with three Torx screws. Figure 27 Install belt onto engine sheave.
  • Page 17 See Figure 29. 15. Reinstall clutch and secure to crankshaft with two flat steel washers, one hardened steel washer and 1 hex Reinstall belt guide over crankshaft and secure to bolt. Torque hardware to 67.8 N•m – 71.2 N•m deck with two tapping screws. (50 lb-ft –...
  • Page 18 19. Tighten jam nuts on clutch cable adjustment barrel See Figure 34. against cable bracket. See Figure 32. 23. Secure each wheel cover to axle plates with one tapping screw. 24. Reinstall pinion gear onto each axle end and secure with E-ring.

  • Page 19: Gearbox Assembly Replacement

    GEARBOX ASSEMBLY Install Gearbox Assembly REPLACEMENT See Figure 37. Install axle hubs onto transmission shaft ends. Models 911175, 911177, 911179, 911188, 911189, 911190, Insert gearbox shaft ends through axle plates. 911375, 911379 Remove Gearbox Assembly Install one flange bushing into each axle plate. IMPORTANT: Retain hardware for reinstallation.

  • Page 20: Wheel Replacement

    WHEEL REPLACEMENT THROTTLE / ENGINE CONTROL LEVER REPLACEMENT Remove Wheel Remove Throttle / Engine Control Lever IMPORTANT: Retain hardware for reinstallation. See Figure 39. Models 911177, 911189 Park unit on a flat, level surface. IMPORTANT: Retain hardware for reinstallation. Stop engine, remove key (if applicable) and wait for all Park unit on a flat, level surface.

  • Page 21: Install Throttle Control Lever

    Install Throttle Control Lever BLADE-BRAKE CLUTCH LEVER Secure throttle control lever to handlebar with one REPLACEMENT machine screw and flange nut. See Figure 42. Remove Blade-Brake Clutch Lever Insert cable end into throttle bracket and insert cable Models 911177, 911189 anchor into cable bracket.

  • Page 22: Install Blade-Brake Clutch Lever

    Rotate clutch actuating lever clockwise to remove Install Blade-Brake Clutch Lever tension from clutch cable spring and remove spring Secure blade-brake clutch lever to handlebar with one from lever. See Figure 44. machine screw. See Figure 45. Route clutch cable down handlebar and through hole in deck top.
  • Page 23 See Figure 47. Reposition cable adjustment barrel in cable bracket and finger tighten jam nuts. Insert a pry bar or similar tool through hole in actuating lever and rotate lever clockwise. Reconnect clutch cable spring hook around actuating lever. Figure 47 Return unit to operating position.
  • Page 24 SERVICE RECORD DATE SERVICE PERFORMED NOTES EN – 22...
  • Page 26 655 West Ryan Street Brillion, WI 54110 ariensstore.com arienscusthelp.com parts.ariens.com...
