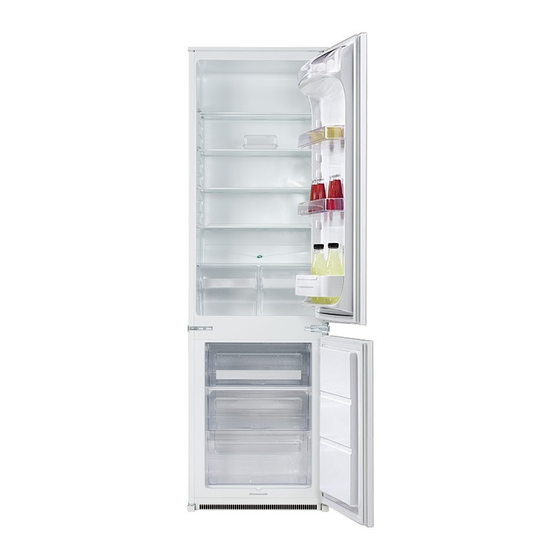

Kuppersbusch IKE 320-2-2T Operating Instructions Manual

Kuppersbusch IKE 320-2-2T Operating Instructions Manual

Integrated fridge-freezers
Hide thumbs Also See for IKE 320-2-2T:

Advertisement

Gebrauchs- und Montageanleitung
Instructions for installation and use
Instructions de montage et d'emploi
Wichtig: Unbedingt lesen und aufbewahren!
Important: Read these instructions carefully and then store them in a safe place
Important: Lire attentivement et ranger soigneusemnt ce mode d'emploi
Integrierte Kühl-Gefriergerät
Integrated Fridge -Freezers
Réfrigérateur - Congélateurs à intégrer
Modell: IKE 320-2-2T
F
GB
p.: 13-22
23-33
2223 467-91

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IKE 320-2-2T and is the answer not in the manual?

Questions and answers

Hans-Walter Rievers
March 16, 2025

Höhe Breite Tiefe

1 comments:
Mr. Anderson
March 16, 2025

The Kuppersbusch IKE 320-2-2T has a height of 177.20 cm, a width of 54 cm, and a depth of 54.60 cm.

This answer is automatically generated

Summary of Contents for Kuppersbusch IKE 320-2-2T

  • Page 1 Important: Read these instructions carefully and then store them in a safe place Important: Lire attentivement et ranger soigneusemnt ce mode d’emploi Integrierte Kühl-Gefriergerät Integrated Fridge -Freezers Réfrigérateur - Congélateurs à intégrer Modell: IKE 320-2-2T p.: 13-22 23-33 2223 467-91...
  • Page 2: General Safety

    WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.
  • Page 3: Environment Protection

    • Do not place carbonated or fizzy drinks in the Environment Protection freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. This appliance does not contain gasses which could damage the ozone layer, in either its Installation refrigerant circuit or insulation materials.
  • Page 4: Temperature Regulation

    Temperature regulation Storage of frozen food The temperature is automatically regulated and can When first starting-up or after a period out of use, be increased to achieve a higher temperature before putting the products in the compartment let (warmer) by rotating the thermostat knob toward the appliance run for at least two hours on the lower settings or reduced (colder) rotating the knob coldest setting, then turn the thermostat knob to the...
  • Page 5: Movable Shelves

    Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.
  • Page 6: Maintenance

    Hints for storage of frozen food To obtain the best performance from this appliance, • not open the door frequently or leave it open you should: longer than absolutely necessary. • Once defrosted, food deteriorates rapidly and • make sure that the commercially frozen foodstuffs were adequately stored by the retailer;...
  • Page 7: Customer Service And Spare Parts

    The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to carry out this operation when...
  • Page 8: Door Reversibility

    The Manufacturer declines all responsibility if ATTENTION! the above safety precautions are not observed. It must be possible to disconnect the appliance from This appliance complies with the following the mains power supply; the plug must therefore be E.E.C. Directives: easily accessible after installation.
  • Page 9 It is necessary that the niche is provided with a conduct of ventilation having the following dimensions: Depth 50 mm Width 540 mm Make sure that a distance of 44 mm is maintained in the lower part between the kitchen furniture and the border of the appliance.
  • Page 10 Apply covers (C-D) on joint cover lugs and into hinge holes. Snap vent grille (B) and hinge covers (E) into position. Separate parts Ha, Hb, Hc, Hd as shown in the figure. Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes.
  • Page 11 Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K). Place the small square on the guide again and fix it with the screws supplied. Should the lining up of the furniture door be necessary, use the clearance of slots.

This manual is also suitable for:

Ike 157-4Ike 187-4Ike 237-4Ike 187-8
