Summary of Contents for Kuppersbusch IKE3180-3

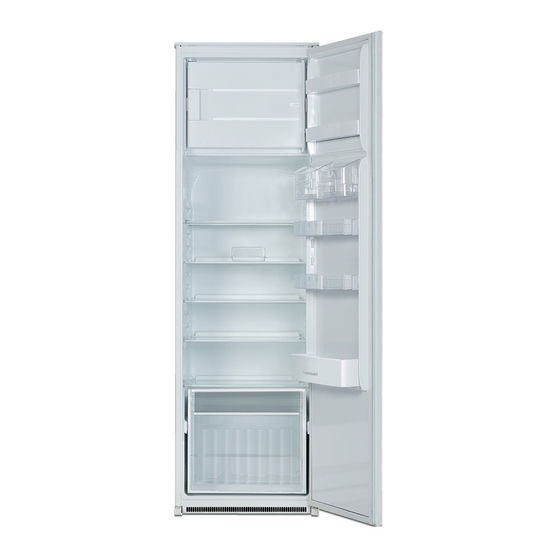

- Page 1 Brugsanvisn‐ Gebruik‐ Benutzerin‐ User Manual saanwijzing formation Køleskab Koelkast Refrigerator Kühlschrank IKE3180-3...
-
Page 2: Table Of Contents
CONTENTS Safety information Care and cleaning Safety instructions Troubleshooting Operation Installation Daily Use Technical information Hints and tips Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. -
Page 3: Safety Instructions
Do not use mechanical devices or other means to accelerate • the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. • Do not use electrical appliances inside the food storage • compartments of the appliance, unless they are of the type recommended by the manufacturer. - Page 4 electrician to change the electrical • Do not freeze again food that has been components. thawed. • The mains cable must stay below the • Obey the storage instructions on the level of the mains plug. packaging of frozen food. •...
-
Page 5: Operation
OPERATION Control panel required temperature lights up. Selection is progressive, varying from 2 to 8°C. At first button touch actual setting LED keeps blinking. Any time the button is touch the set temperature is moved to 1 position . Corresponding LED will blink for a while. Touch the setting button until the required temperature is selected. - Page 6 To freeze fresh food activate the FastFreezefunction at least 24 hours before placing the food to be frozen in the freezer compartment. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.
-
Page 7: Hints And Tips
HINTS AND TIPS Normal operating sounds • Meat (all types) : wrap in polythene bags and place on the glass shelf above the The following sounds are normal during vegetable drawer. operation: • For safety, store in this way only one or two days at the most. -
Page 8: Care And Cleaning
Hints for storage of frozen food • prepare food in small portions to enable it to be rapidly and completely frozen To obtain the best performance from this and to make it possible subsequently to appliance, you should: thaw only the quantity required; •... -
Page 9: Troubleshooting
out through a trough into a special 2. Remove any stored food, wrap it in container at the back of the appliance, over several layers of newspaper and put it in the motor compressor, where it evaporates. a cool place It is important to periodically clean the CAUTION! Do not touch defrost water drain hole in the middle of the... - Page 10 What to do if... Problem Possible cause Solution The appliance does not oper- The appliance is switched Switch on the appliance. ate. off. The mains plug is not con- Connect the mains plug to the nected to the mains socket mains socket correctly.
- Page 11 Problem Possible cause Solution Water flows inside the refrig- The water outlet is clog- Clean the water outlet. erator. ged. Food products prevent that Make sure that food products water flows into the water do not touch the rear plate. collector.
-
Page 12: Installation
Replacing the lamp Only service is allowed to replace the lighting device. Contact your Authorised The appliance is equipped with a longlife Service Centre. LED interior light. INSTALLATION separate earth in compliance with WARNING! Refer to Safety current regulations, consulting a qualified chapters. - Page 13 Installing the appliance CAUTION! Make sure that the mains cable can move freely. 1. If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure. 5. Tighten the lower pin on the opposite site.
- Page 14 The lower hinge cover (in the accessories bag) makes sure that the distance between the appliance and the kitchen furniture is correct. Make sure that the clearance between the appliance and the cupboard is 4 6. Open the door. Put the lower hinge cover in position.
- Page 15 ca. 50 mm 8 mm 90° 21 mm 90° ca. 50 mm 21 mm 13. Push the part (Hc) on the part (Ha). 18. Place the small square on the guide again and fix it with the screws supplied. 19. Align the kitchen furniture door and the appliance door by adjusting the part (Hb).
-
Page 16: Technical Information
Reversing of the freezer door 180˚ TECHNICAL INFORMATION Technical data Height 1780 mm... - Page 17 Width 560 mm Depth 550 mm Rising time Hours 20 h Voltage Volts 230 - 240 Frequency The technical information are situated in the rating plate, on the external or internal side of the appliance and in the energy label. ENVIRONMENT CONCERNS dispose appliances marked with the symbol Recycle the materials with the symbol...
- Page 21 Küppersbusch Hausgeräte GmbH Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstr. 16, D-45883 Gelsenkirchen Telefon: (02 09) 4 01-0, Telefax: (02 09) 4 01-3 03 www.kueppersbusch.de 222371465-A-082015...
