Istruzioni per l'installazione e l'uso
Istrucciones para el montaje y el uso
Instructions for installation and use
Importante: E'necessario leggere attentamente queste istruzioni e conservarle con cura
Importante: Leerlas imprescindiblement y guardarlas
Important: Read these instructions carefully and then store them in a safe place
Frigorifero integrato 4 porte
Frigirìfico automatico integrado 4 puertas

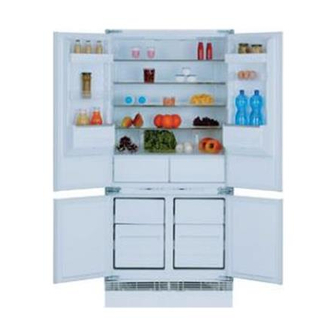

4-Door-Maxi-Cooling appliance
Modell: IKE 458-5-4T
p.:
16-30
31-45
GB
E
2223 188-53
Advertisement
Table of Contents
Related Manuals for Kuppersbusch IKE 458-5-4T
Summary of Contents for Kuppersbusch IKE 458-5-4T
- Page 1 Importante: E’necessario leggere attentamente queste istruzioni e conservarle con cura Importante: Leerlas imprescindiblement y guardarlas Important: Read these instructions carefully and then store them in a safe place Frigorifero integrato 4 porte Frigirìfico automatico integrado 4 puertas 4-Door-Maxi-Cooling appliance Modell: IKE 458-5-4T 16-30 31-45 2223 188-53...
-
Page 2: General Safety
WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. -
Page 3: Environment Protection
Installation Environment Protection • During normal operation, the condenser and compressor at the back of the appliance heat up This appliance does not contain gasses which considerably. For safety reasons, minimum could damage the ozone layer, in either its ventilation must be as shown in the instructions. refrigerant circuit or insulation materials. - Page 4 CONTENTS Warnings ................32 Use - Cleaning the interior - Use of the freezer - Control panel .
-
Page 5: Operation
OPERATION Cleaning the interior Do not use detergents or abrasive Before using the appliance for the first time, wash powders, as these will damage the finish. the interior and all internal accessories with luke- warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. -
Page 6: Storage Of Frozen Food
F. Alarm reset light Warning! When use the “Auto freeze” function: G. Alarm reset button In the event of an abnormal temperature rise inside about 6 hrs Introducing small quantities of fresh food the freezer (e.g. power cut) warning light (F) will start before (about 5 kg) to flash and a buzzer will sound. -
Page 7: Freezer Compartment
Freezer compartment • If food is to be frozen immediately after having installed the appliance or after a prolonged period out of use, push the button (I) and allow the appliance to run for at least 4 hours before placing the food in it. If the freezer is already operating, with food inside it, push the button (I) 24 hours before loading food to be frozen. -
Page 8: Use Of The Refrigerator
Use of the refrigerator Control Panel ON/OFF light Temperature setting button (coldest) Fridge button ON/OFF Auto fresh light Temperature setting button (warmest) Auto fresh button Temperature indicator J. Light ON/OFF Attention! K. Button ON/OFF Difference between the temperature displayed and Press the button (K). -
Page 9: Refrigerator Compartment
Refrigerator compartment For proper opening and closing, it is advisable to act on both doors simultaneously (as shown in the figure). • Do not place hot food or drinks in the refrigerator; wait until they trave cooled to room temperature. •... -
Page 10: Maintenance
MAINTENANCE Before carrying out any maintenance operations, including those described in this book, unplug the appliance from the mains supply. Warning This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Periodic cleaning Clean the inside of the appliance and the accesso- ries with a solution of lukewarm water and bicar-... -
Page 11: Troubleshooting
TROUBLESHOOTING If something is not working properly, make sure that all the instructions in this book trave been followed before calling the SERVICECENTRE. The compressore are not working • Power cut or power supply problem. • Mains On/Off switch in position “0”. The interior lights are not working •... -
Page 12: Installation
INSTALLATION If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child. -
Page 13: Height Adjustment
POSITIONING Height adjustment The height of the appliance is adjustable from 820 to 870 mm to fine up with existing kitchen units. Before installing the appliance between unite, adjust the height of the feet and rear wheels. The wheels are factory set for a height of 820 mm. To align the appliance to a height of 870 mm, raise it by adjusting the feet with a spanner, then remove the wheels and refit them in the lowest position. -
Page 14: Fitting The Door Panels
Fitting the door panels • Open a door a remove the bracket cover. Undo the nuts with washers and remove the bracket from the door. • Drill the small doors as shown in the figure. LEFT-HAND FRONT PANEL RIGHT-HAND FRONT PANEL BOTTOM BOTTOM RIGHT-HAND... - Page 15 • Refit the bracket on the adjustment screws and screw the nuts with washers without tightening them down. ° • Close the door and check that the small door is positioned at the required height, operating the adjustment screws if necessary. Use the same screws for vertical alignment of the small doors.
-
Page 16: Fitting The Plinth
Building the appliance in • Fit the appliance into the recess. • Rotate the bracket of 180° in order to obtain the right position ( 2). The position (1) is on the delivery. • Fix it to the wali with the appropriate bracket. •... - Page 17 griile, pressing it into position below this grille. • If using a 100 mm plinth, fit the complete height compensation strip. Alignment height of 870 mm • If using a 190 to 220 mm plinth, make a shown. • If using a plinth higher than 150 mm but less than 190 mm, cut the height compensation strip supplied with the appliance to the required depth and fit it between the plinth and the ventilation...
- Page 18 KÜPPERSBUSCH HAUSGERÄTE AG Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstr. 16, D-45883 Gelsenkirchen Telefon: (02 09) 4 01-0, Telefax: (02 09) 4 01-3 03 www.kueppersbusch.de Küppersbusch Ges. m. b. H. Eitnergasse 13, 1231 Wien, Telefon: 01 / 8 66 80-0, Telefax: 01 / 8 66 80 72 www.kueppersbusch.at ·...
