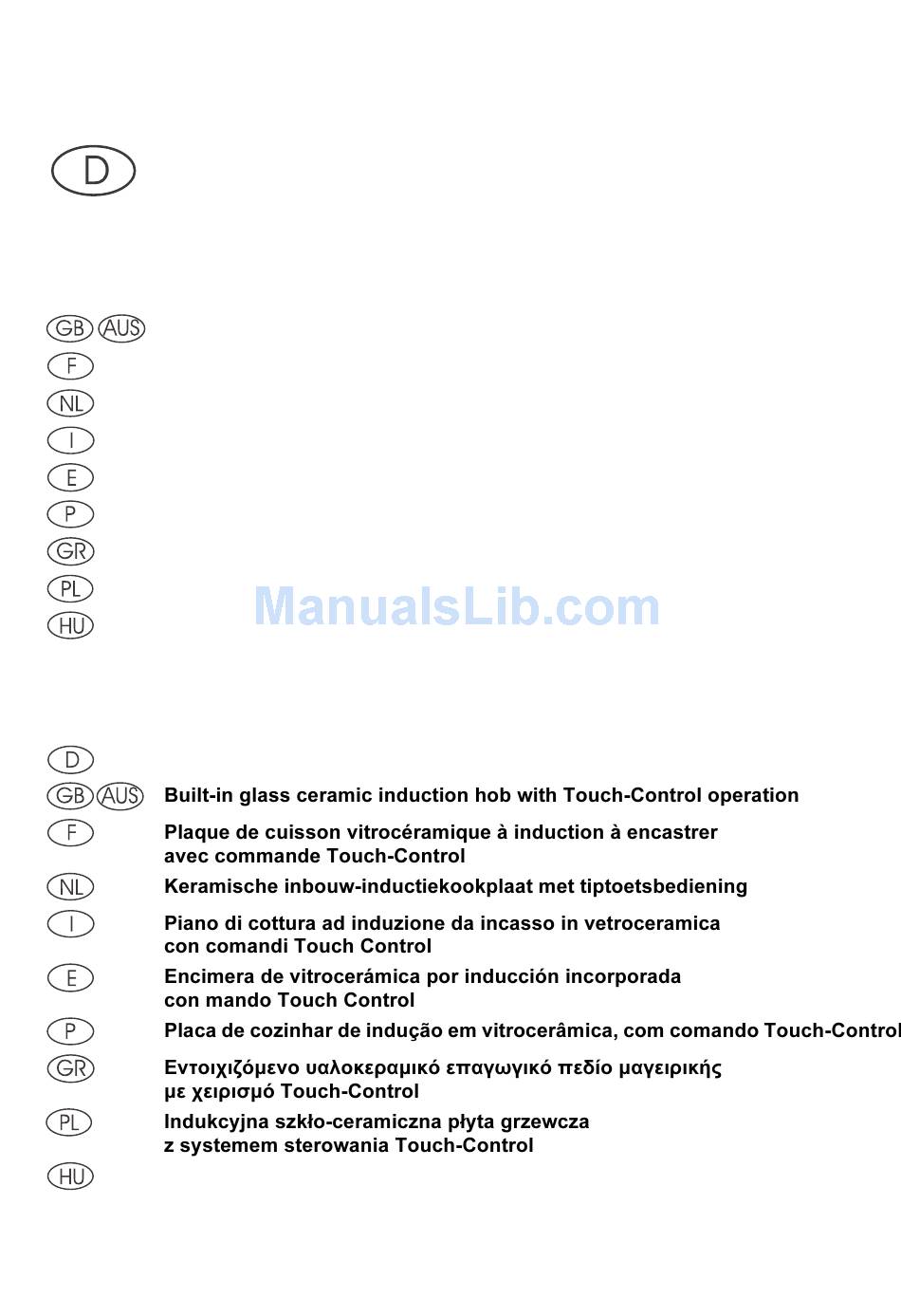

GEBRAUCHS- UND
MONTAGEANWEISUNG
INSTRUCTIONS FOR FITTING AND USE
INSTRUCTIONS DE MONTAGE ET D'UTILISATION
GEBRUIKS- EN MONTAGE-INSTRUCTIES
ISTRUZIONI PER L'USO ED IL MONTAGGIO
INSTRUCCIONES PARA EL USO Y MONTAJE
MANUAL DE INSTRUÇÕES DE USO E DE MONTAGEM
œƒ«√...≈" ◊–«"«"  ¡... "'Õ¡–ÜÀœ√«"«"
INSTRUKCJA OBSŁUGI I MONTAŻU
HASZNÁLATI ÉS BESZERELÉSI UTASÍTÁS
Einbau-Glaskeramik-Induktionskochfeld mit Touch-Control-Bedienung
Beépíthető kerámiaüveg indukciós főzőlap touch-control vezérléssel
224440 M91
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GKST 58 and is the answer not in the manual?

Questions and answers

Summary of Contents for Küppersbusch GKST 58

  • Page 1 GEBRAUCHS- UND MONTAGEANWEISUNG INSTRUCTIONS FOR FITTING AND USE INSTRUCTIONS DE MONTAGE ET D’UTILISATION GEBRUIKS- EN MONTAGE-INSTRUCTIES ISTRUZIONI PER L’USO ED IL MONTAGGIO INSTRUCCIONES PARA EL USO Y MONTAJE MANUAL DE INSTRUÇÕES DE USO E DE MONTAGEM œƒ«√…≈” ◊–«”«”  ¡… ”’Õ¡–ÜÀœ√«”«” INSTRUKCJA OBSŁUGI I MONTAŻU HASZNÁLATI ÉS BESZERELÉSI UTASÍTÁS Einbau-Glaskeramik-Induktionskochfeld mit Touch-Control-Bedienung...
  • Page 2: Table Of Contents

    You now own a glass ceramic hob with Touch-Control switches. Chapters 2 and 3 of these Operating Instructions contain information on how you can make sure that your hob gives many years of service. These Operating Instructions are for use with several types of hobs. The rating label on the front of these Instructions will show you which type you have bought.
  • Page 3: Your New Hob

    1. Operations 1.1 Your new hob This manual covers the models: .GKST 58 .., .GKST 75 .., FGKST 58 .., FGKST 75 .. 1.2 Touch-Control operating panel After the supply voltage has been connected (mains connection), a self-test is carried out which is concluded when a short acoustic signal is to be heard.
  • Page 4 The residual heat display is by means of an illuminated “H” on the appropriate cooking level display Switch on the cooking zone by means of corresponding cooking zone button . Press the minus key and select cooking level = Parboiling boost, 9.
  • Page 5: Important Tips For Induction

    The timer can be used to automatically switch off a cooking zone after a pre-set time of between 1 and 99 minutes. ¬ The required cooking zone must be activated, stand-by dot lights up. Select a cooking level from 1 to 9 by means of the minus or plus keys .
  • Page 6: Protection Against Overheating

    The ceramic hob is provided with a protection against overheating, which protects the electronics against damage. The protection against overheating works in several stages. If there is a significant increase in the heat of the ceramic hob, then a two-stage fan switches on. If this is not enough, then the power level mode will be deactivated and the power for the individual cooking zones decreased or switched off completely.
  • Page 7: Cleaning And Maintenance

    3. Cleaning and maintenance Always clean the hob after it has cooled down. Even the slightest amount of dirt will burn into the surface the next time you switch it on. Use only recommended cleaners. Steel wool, cleaning sponges and abrasive powders scratch the surface.
  • Page 8: Worktop Cut-Out

    4. Fitting 4.1 Worktop cut-out Carry out all cutting out of furniture units and worktops before fitting the appliance, and remove all sawdust and chips. The dimensions of the worktop recess can be seen in the dimension drawing (figs. 1+2). The cut sections should be sealed with a water-repellent protection paint.
  • Page 9: Electrical Connection

    4.3 Electrical connections (Connected loads and model designation: see front of the operating instructions) This appliance may only be connected to the electricity supply by an approved electrician who must ensure that the installation complies with the statutory regulations (Germany VDE, Austria ÖVE, Switzerland SEV, etc.). The electrician must ensure that these regulations and those laid down by the local electricity supply company are observed.
  • Page 10 Minimum distances to adjacent walls Cut-out dimension Outside dimensions of recess Cable routing in rear wall 224440...
  • Page 11 Minimum distances to adjacent walls Cut-out dimension Outside dimensions of recess Cable routing in rear wall 224440...
