Glass ceramic hob unit with sensor touch control (23 pages)
Summary of Contents for Küppersbusch EKI 6040.1
Page 1
Instructions for use and installation instructions Instructions d'utilisation et avis de montage Gebruiksaanwijzing en montagehandleiding Istruzioni di uso e di montaggio Instrucciones de uso y de montaje Instruções de uso e de montagem Ο∆ΗΓΙΕΣ ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ EKI 6040.1 EKI 8040.1 227826 Q91...
Disposing of the packaging For your information... Please ensure the environmentally-friendly disposal of the Please read this manual carefully before using your appliance. It packaging that came with your appliance. Recycling the contains important information on safety and on how to use and packaging material saves on resources and cuts down on waste.
Safety instructions Connection and operation • Do not put aluminium foil or plastic onto the cooking zones. Safety instructions Keep everything which could melt, such as plastics, foil and in • The appliances are constructed in accordance with the particular sugar and sugary foods away from hot cooking relevant safety regulations.

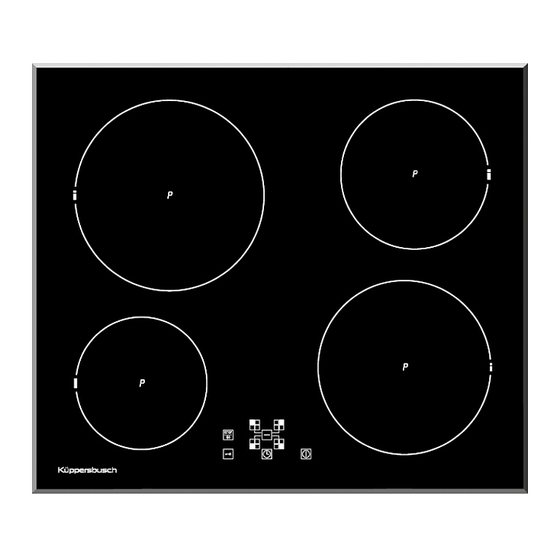

Appliance description The decorative design may deviate from the illustrations. ON/OFF key (13) This key is used to switch the entire hob on and off. It is, as it were, the main switch. 1. Induction cooking zone front left 2. Induction cooking zone back left Select/Plus key, e.g.
Operation The hob Operation time limit Operation The hob is equipped with an induction cooking mode. An induc- The induction hob has an automatic time limit function. tion coil underneath the glass ceramic hob generates an electro- The duration of continuous use of each cooking zone depends on magnetic alternating field which penetrates the glass ceramic the cooking level selected (see chart), provided that the setting of and induces the heat-generating current in the pot base.
Operation Cookware for induction hobs How to cut power consumption Cookware for induction cooking zones must be made of metal The following are a few useful hints to help you cut your con- and have magnetic properties. The base must be sufficiently sumption of energy and use your new induction hob and the large.
Operation Operating the keys The controls described here expect the pressing of a (selection) key to be followed by the pressing of a subsequent key. The next key will need to be pressed within 10 seconds, otherwise the selection will be deleted. The Plus/ Minus keys can be touched individually or be permanently pressed.
Operation STOP function The cooking process can be briefly interrupted with the STOP function, e.g. if the doorbell rings. The STOP function must be released in order to continue cooking at the same power level. If a timer has been set it will pause and will then continue.
Operation Automatic switch-off (timer) The automatic switch-off device is used to automatically switch off any cooking zone after a stipulated period of time. Cooking times ranging from 01 minute to 99 minutes can be set. 1. Switch on the hob. Switch on one or more cooking zones and set the Select/Plus keys required power settings.
Operation Automatic boost function Parboiling takes place at power level 9 with the automatic boost function. After a certain time the power level will switch down automatically to a lower simmering setting (1 to 8). When using the automatic boost function only the simmering setting with which the food is to be cooked through needs to be selected since the electronic unit switches down automatically.
Operation Keeping warm function With the function for keeping food warm you can use one of the cooking zones to keep food warm. The respective cooking zone is operated at a low power level. 1. Cookware is placed on a cooking zone and a power level (e.g. 3) is selected.
Cleaning and Care Specific soiling Cleaning and Care Heavy soiling and stains (limescaling and shiny, mother-of- pearl-type stains) can best be removed when the hob is still • Before cleaning, switch off the hob and let it cool down. slightly warm. Use commercial cleaning agents to clean the hob. •...
What to do if trouble occurs An error code ER03 is indicated and a time-limited continu- What to do if trouble occurs ous signal will sound. Food which has boiled over, cookware or other items are causing the touch control sensor keys to be consistently operated. Interference with and repairs to the appliance by unqualified Remedy: clean the surface or remove the item.
Instructions for assembly Note • The hob must under no circumstances be sealed with sili- Instructions for assembly cone sealant! This would make it impossible to remove the The KÜPPERSBUSCH hob may only be built-in in accord- hob at a later date without damaging it. ance to the instructions included in this manual: In the case of failure to observe these instructions, KÜPPERSBUSCH Ventilation...
Page 15
Instructions for assembly Clips Dimensions in mm • Drive the clips into the worktop cut-out at the intervals indicated. It is not necessary to adjust the height due to the horizontal stop. • Important! The horizontal drive of the clips must be flush with the worktop.
Instructions for assembly Electrical connection Mains cable available in the factory • The hob has been fitted with a temperature-resistant connec- • The electrical connection must be carried out by a quali- tion cable in the factory. fied electrician who is authorised to carry out such work! •...
Instructions for assembly Technical data Start of operation Hob dimensions Once the hob has been installed and the power supply has been Height/ Width/ Depth ..mm 50 x 600 x 520 provided (mains connected) an automatic test of the controls will be carried out and information for Customer Service will be Cooking zones indicated.
