Page 1: Instructions For Use
Instructions for use Gas hobs for installation in worktops GKS 3920.0 GWS 3911.0 GKS 6940.0 GKS 9951.0 For use in: Hong Kong Issue: 2014-01-14 Version: 1.3_EN Identity no.: 073587_HK... - Page 2 Instructions for use - Gas hobs Welcome...
- Page 3 Instructions for use - Gas hobs Welcome Dear customer, We thank you for your confidence in our product. We are supplying you with a high-quality Küppersbusch product. As part of quality controls conducted prior to its delivery, it was inspected to ensure that it is in its proper condition.
-
Page 4: Table Of Contents
Qualification of persons ........................ 7 Warnings in these instructions for use ..................7 Overview of the gas hobs ..............8 Gas hob GKS 3920.0 ........................8 Gas hob GWS 3911.0 ........................8 Gas hob GKS 6940.0 ........................9 Gas hob GKS 9951.0 ........................9 Installation and operation .............. - Page 5 Instructions for use - Gas hobs Contents Changing types of gas ................. 20 Injector specification ........................20 Changing gas used by high-capacity and standard burners ............21 Changing the gas used by the WOK burner ................25...
-
Page 6: Safety And Responsibility
Instructions for use - Gas hobs Safety and responsibility Safety and responsibility For the purpose of safe, appropriate use, please observe the safety instructions before you use the appliance. Appropriate use The appliance is intended to be used exclusively for preparing food in the home. According to the EN 30 standards, the gas hobs belong to appliance category 3: “Appliances for Installation in Kitchen Units or Worktops”. -
Page 7: Qualification Of Persons
Instructions for use - Gas hobs Safety and responsibility Qualification of persons Persons performing operations on the appliance during its individual life phases must be appropriately qualified. Operations Person Qualification Erection, installation User Knowledge of these instructions for use Installation of gas connections, initial Electrician (electrical connections), fitter Knowledge of specifications for electrical operation, maintenance, fault rectification,... -
Page 8: Overview Of The Gas Hobs

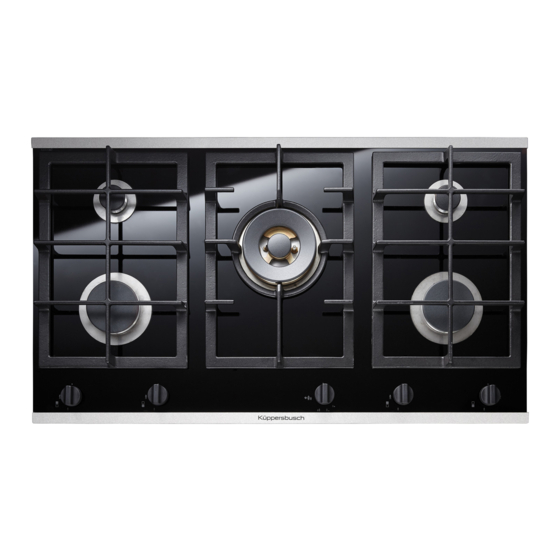

Instructions for use - Gas hobs Overview of the gas hobs Overview of the gas hobs This section contains an overview of the gas hobs and their control elements. Gas hob GKS 3920.0 ① ③ ④ ② Standard burner High-power burner ①... -
Page 9: Gas Hob Gks 6940.0
Instructions for use - Gas hobs Overview of the gas hobs Gas hob GKS 6940.0 ① ① ② ② ③ ④ ④ ③ Standard burner High-power burner control knob ① ③ High-power burner Standard burner control knob ② ④ Gas hob GKS 9951.0 ①... -
Page 10: Installation And Operation
Instructions for use - Gas hobs Installation and operation Installation and operation Installation and operation safety WARNING Fatal injury caused by explosive gas Gas connections must all be installed by a professional gas fitter. Only operate gas hobs in a well-ventilated, sufficiently large room (at least 20 m³) or install a mechanical ventilation device, e.g. -
Page 12: Installing Several Gas Hobs
Instructions for use - Gas hobs Installation and operation 3.2.2 Installing several gas hobs Take account of the space needed to install several gas hobs: The worktop may not be narrower than 35 mm between the holes cut out for the gas hobs. 6 mm 35 mm 3.2.3 Mounting clips for fastening the gas hobs... -
Page 13: Installing The Gas Hob
Instructions for use - Gas hobs Installation and operation 3.2.4 Installing the gas hob First of all install the gas hob into the hole at the Î Î rear ①, pressing the clips in slightly when doing so ②. Install the gas hob into the hole at the front ③, Î... -
Page 14: Operation
Instructions for use - Gas hobs Installation and operation Operation The appliance is only intended to be used for cooking food. WARNING Fatal injury caused by explosive gas A smell of gas means that there is a risk of explosion: DO NOT ignite gas hobs or electrical switches. - Page 15 Instructions for use - Gas hobs Installation and operation Notes on operation: Before you cook food for the first time: clean the gas hobs thoroughly. Clean the appliance every day. Do not use any pots or pans that jut out over the edge of the hob. Diameter of pots and pans: ○...
-
Page 16: Cleaning
Instructions for use - Gas hobs Cleaning Cleaning Keep the surface clean. Immediately remove dirt, e.g. lime, fat, protein, starch, salt and spices. Always clean the appliance after operation. Switch off the appliance, allow it to cool down and observe the following: The knobs can be pulled off for cleaning purposes. -
Page 17: Troubleshooting
Instructions for use - Gas hobs Troubleshooting Troubleshooting Safety when troubleshooting WARNING Fatal injury caused by explosive gas A smell of gas means that there is a risk of explosion: ○ DO NOT ignite gas hobs or electrical switches. ○ Immediately close gas shut off valves. -
Page 18: Finding Faults
Instructions for use - Gas hobs Troubleshooting Finding faults Malfunction Cause(s) Measure(s) Remove the saucepan support Î Î Slits (gas outlets) on the burner head Take the cap off the burner head Î Î blocked Clean the slits on the burner head Î... -
Page 19: Technical Data
Instructions for use - Gas hobs Technical data Technical data This section shows the technical data. The values shown serve to support orientation and may deviate slightly. GKS 3920.0 GWS 3911.0 GKS 6940.0 GKS 9951.0 Width x height x depth... -
Page 20: Changing Types Of Gas
Instructions for use - Gas hobs Changing types of gas Changing types of gas WARNING Danger caused by improper conversion to other types of gas Have only qualified gas fitters convert the appliance to another type of gas in accordance with local regulations. -
Page 21: Changing Gas Used By High-Capacity And Standard Burners
Instructions for use - Gas hobs Changing types of gas Changing gas used by high-capacity and standard burners Replacing the injectors: WARNING Danger of electric shock! Pull out the mains plug. Discontinue the supply of gas. CAUTION Hot surfaces. Remove the saucepan support ①. Î... - Page 22 Instructions for use - Gas hobs Changing types of gas Screw the glass ceramic top off the hob cavity. Î Î Remove the glass ceramic top. Î Î Dismantling the gas tap: Remove the rubber cap ①. Î Î Remove the holder ② to the side. Î...
- Page 23 Instructions for use - Gas hobs Changing types of gas Remove the top part of the gas tap. Î Î Screw the low setting injector ① out and remove Î Î it with pointed pliers ②. Screw in the new low setting injector until it Î...
- Page 24 Instructions for use - Gas hobs Changing types of gas Replace component parts ① to ③. Î Î Place the glass ceramic top into the hob cavity Î Î and screw it on. Screw the burner flange tight. Î Î Seal the appliance.
-
Page 25: Changing The Gas Used By The Wok Burner
Instructions for use - Gas hobs Changing types of gas Changing the gas used by the WOK burner Replacing the injectors: WARNING Danger of electric shock! Pull out the mains plug. Discontinue the supply of gas. CAUTION Hot surfaces. Pull the control knob off by pulling it upwards. Î... - Page 26 Instructions for use - Gas hobs Changing types of gas Remove both main adjusting injectors with an Î Î open-jawed spanner (size 7). Screw in the new main adjusting injectors until Î Î they stop. Observe the injector specification. Removing the gas hob: Example: Appliance type GWS 3911.0 Push against the gas hob from below and Î...
- Page 27 Instructions for use - Gas hobs Changing types of gas Remove the glass ceramic top. Î Î Screw the low setting injector out with a Î Î screwdriver and remove it with pointed pliers. Screw in the new low setting injector until it Î...
- Page 28 Instructions for use - Gas hobs Changing types of gas Remove the top part of the gas tap. Î Î Screw the low setting injector ① out and remove Î Î it with pointed pliers ②. Screw in the new low setting injector until it Î...
- Page 29 Instructions for use - Gas hobs Changing types of gas Replace component parts ① to ④. Î Î Place the glass ceramic top into the hob cavity Î Î and screw it on. Screw the burner flange tight. Î Î Seal the appliance.
- Page 30 Instructions for use - Gas hobs...
- Page 31 Instructions for use - Gas hobs...
- Page 32 Küppersbusch Hausgeräte GmbH Postfach 10 01 32, D-45801 Gelsenkirchen (Germany) Küppersbuschstr. 16, D-45883 Gelsenkirchen (Germany) Telephone: +49 209 401-0, fax: +49 209 401-303 www.kueppersbusch.de Shun Hing Electric Works & Engineering Co., Ltd. Room 601, East Ocean Centre, 6/F., 98 Granville Road Tsimshatsui East, Kowloon Hong Kong www.shunhinggroup.com...
