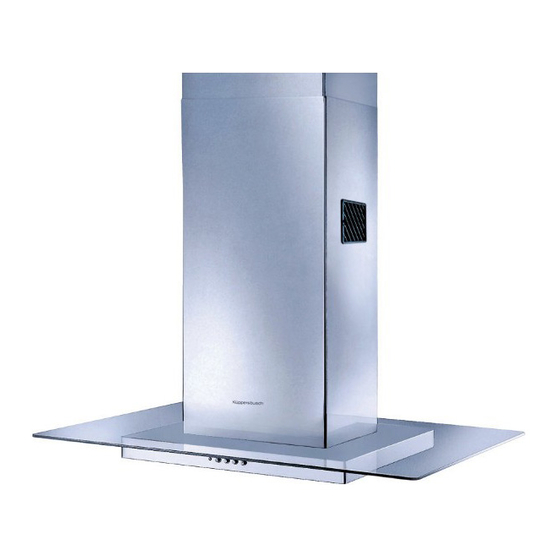

Summary of Contents for Küppersbusch IKD 9375.0 GE

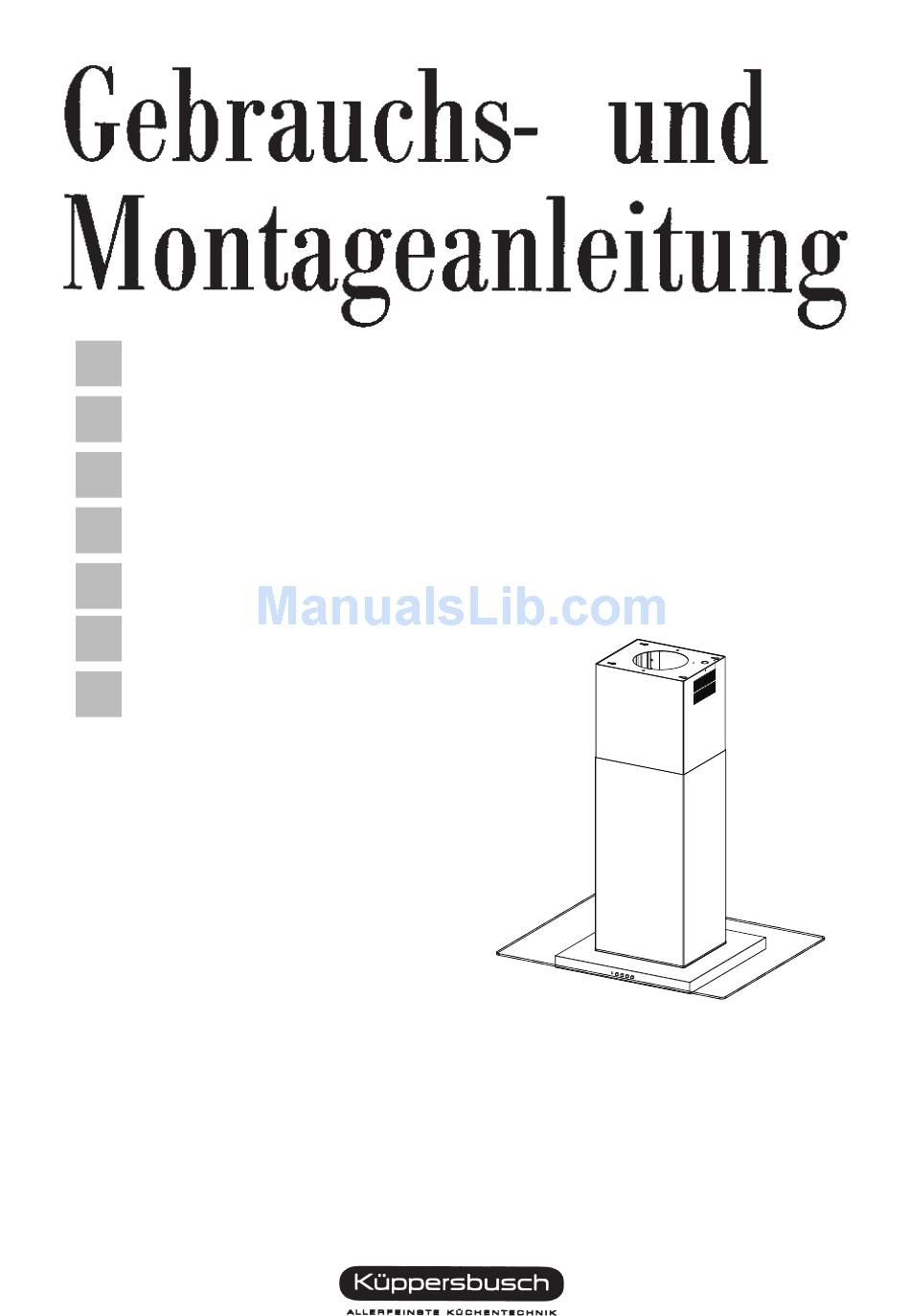

- Page 1 Bedienungsanleitung Instructions Booklet Mode d’emploi Libretto Istruzioni Gebruiksaanwijzing Manual de instrucciones Manual de Instruções IKD 9375.0 GE...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. - Page 3 CHARACTERISTICS Dimensions...
- Page 4 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Telescopic frame complete with extractor, consisting of: 7.1a Upper frame 7.1b Lower frame Reducer Flange ø 150-120 mm Flange ø 150 Air Outlet Connection Junction box Pipe clamps...
-
Page 5: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. - Page 6 FIXING THE frame • Loosen the two screws fastening the lower chimney and re- move this from the lower frame. • Loosen the two screws fastening the upper chimney and re- move this from the upper frame. If you wish to adjust the height of the frame, proceed as follows: •...
-
Page 7: Electrical Connection
Recirculation version air outlet • Fix the connection 15 to the frame using the 4 screws pro- vided. • Fix the flange 10 to the lower opening of the connection 15. • Connect the hood air outlet to the flange in the lower part of the junction using a rigid or flexible ø... - Page 8 Light Switches the lighting system on and off. Motor running led. Motor Switches the extractor motor on and off at low speed. Used to provide a contin-uos and silent air change in the presence of light cooking vapours. Speed Medium speed, suitable for most operating conditions given the optimum treated air flox/noise level ratio.
-
Page 9: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of ope- ration, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
