Summary of Contents for Küppersbusch IKD 976.2

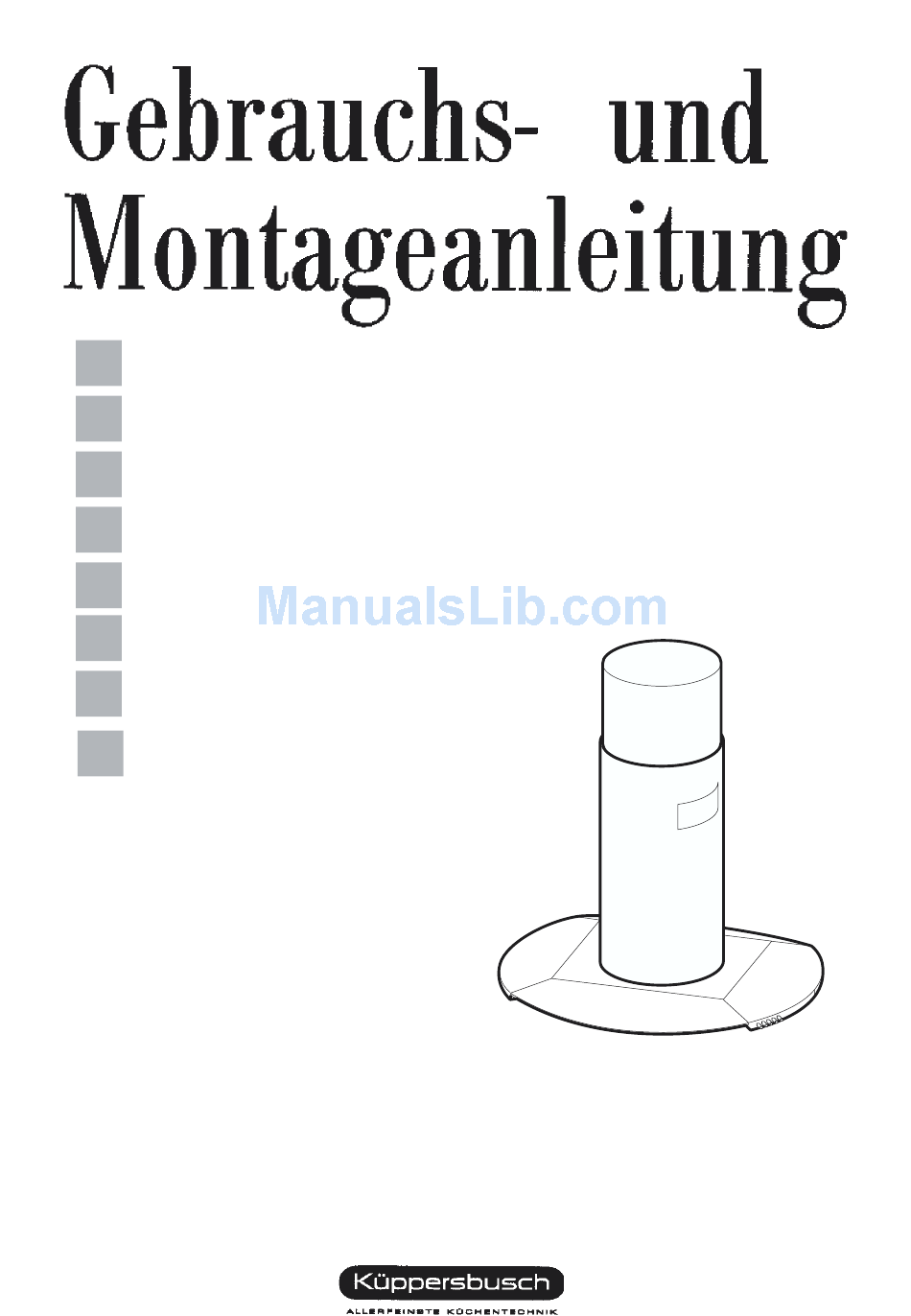

- Page 1 Bedienungsanleitung Instructions Booklet Mode d’emploi Libretto Istruzioni Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Εγχειρίδιο οδηγιών IKD 976.2 IKD 976.2 IKD 976.2 IKD 976.2 IKD 976.2 IKDEM 976.2 IKDEM 976.2 IKDEM 976.2 IKDEM 976.2 IKDEM 976.2...
- Page 2 Dear Customer, If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performan- ce and will remain efficient for many years to come. CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION MAINTENANCE...
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. - Page 4 CHARACTERISTICS Dimensions...
- Page 5 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Telescopic frame complete with extractor, consisting of: 7.1a Upper frame 7.1b Lower frame Air Outlet Grill Reducer Flange ø 150-120 mm Hood Body Air Outlet Extension Piece consisting of two Half Shells 14.1...
-
Page 6: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 21 21 21 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. -
Page 7: Ducted Version Air Exhaust System
Upper frame Upper frame Upper frame Upper frame Upper frame • Align the power supply cable feed hole • Fix the upper frame to the ceiling or shelf using: • For concrete ceilings, use the appropriate plugs for the screw size (not provided). •... -
Page 8: Electrical Connection
Flue assembly - Mounting the hood body • Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c provided. • Fit the lower chimney section onto the frame, holding it in place until the hood body has been fixed in place. -
Page 9: Control Panel
Control panel L L L L L Light Switches the lighting system on and off. S1 S1 S1 S1 Motor running led. Flashes when the grease filters are saturated. S2 S2 S2 S2 Intensive speed led. Flashes when the activated carbon odour filters are exhausted. M M M M M Motor Switches the extractor motor on and off at low speed. -
Page 10: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF-SUPPORTING GREASE FILTERS Alarm signal reset Alarm signal reset Alarm signal reset Alarm signal reset Alarm signal reset • Switch off the lights and extractor motor. • Press button V2 V2 for at least 3 seconds, until the leds start to flash. -
Page 11: Activated Charcoal Filter (Recirculation Version)
Activated charcoal filter (Recirculation version) REPLACING THE ACTIVATED CHARCOAL FILTER • The filter is not washable and cannot be regenerated. It must be replaced when led S2 S2 S2 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.
