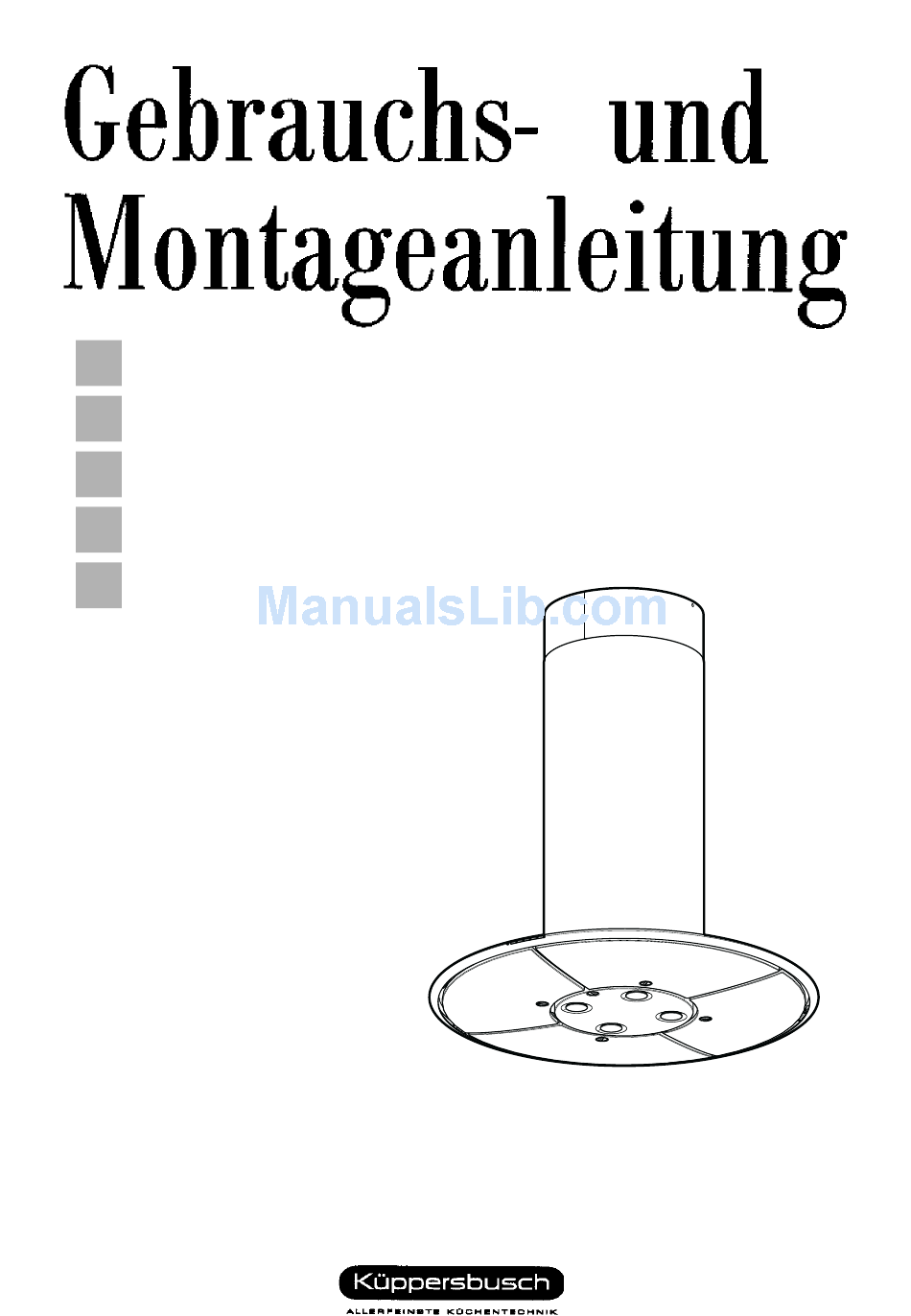

- Page 1 Bedienungsanleitung Instructions Booklet Mode d’emploi Libretto Istruzioni Manual de instrucciones IKD 9650.0 E IKD 9650.0 E IKD 9650.0 E IKD 9650.0 E IKD 9650.0 E...
- Page 2 Dear Customer, If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come. CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION MAINTENANCE...
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. - Page 4 CHARACTERISTICS Dimensions...
- Page 5 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Telescopic frame complete with extractor, consisting of: 7.1a Upper frame 7.1b Lower frame Air Outlet Grill Reducer Flange ø 150-120 mm Hood Body Air Outlet Extension Piece 14.1 Air Outlet Connection Extension...
-
Page 6: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame Before starting installation, remove the Comfort Panels to prevent them from being damaged during installation itself. Please consult the section on Maintenance on how to remove the panels. DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. •... -
Page 7: Fixing The Frame
FIXING THE FRAME • Unfasten the two screws fastening the upper chimney stack 2.1 to the frame, and remove the chimney from the upper stack. If you wish to adjust the height of the frame, proceed as follows: • Unfasten the four safety screws located at the top in the frame separation area. - Page 8 RECIRCULATION VERSION AIR OUTLET • Insert reducer flange 9 on the extractor outlet. • Push fit the extension piece 14 onto the flange. • Push fit connector 15 onto the extension piece. • Insert extension piece 14.2 laterally on connector 15 •...
-
Page 9: Electrical Connection
ELECTRICAL CONNECTION • Connect the Hood to the mains power supply, inserting a two-pole cut-out switch with contact aperture of at least 3 mm along the line. • Remove the lighting unit, by turning the knob and sliding the fixing pin lever. •... -
Page 10: Control Panel
Control panel BUTTON FUNCTIONS Turns the lighting system on and off. 0/1 Motor Fixed Turns the motor on and off. Flashing 24h Exchange Enabled by pressing and holding the button for approx. 3”. Provides 100 m 3 /h suction with a noise level of just 28dB(A). -
Page 11: Remote Control (Optional)
REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type. • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. -
Page 12: Grease Filters
Grease filters Alarm signal reset • Turn the Lights and the suction Motor off, and disable the 24h function if it has been enabled. • Press T3 for at least 3 seconds, until indicators flash to confirm. Cleaning the filters •... -
Page 13: Light Replacement
Alarm signal reset • Turn the Lights and the suction Motor off, and disable the 24h function if it has been enabled. • Press T3 for at least 4 seconds, until indicators T1 and T4 flash to confirm. Replacing the Filter •...
