Owner's Manual
INSTALL GUIDE
Covers All 45xx Series 2way Remote Starter/ Alarms
REMOTE STARTERS
CAR ALARMS
ü
Note
: Some features may not be available on certain models.
-The system must be placed into Service Mode before any service work is started on the
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
- CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
- The Hood Pin Safety Switch Must Always be Installed!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ultra Start 45 SERIES
Summary of Contents for Ultra Start 45 SERIES

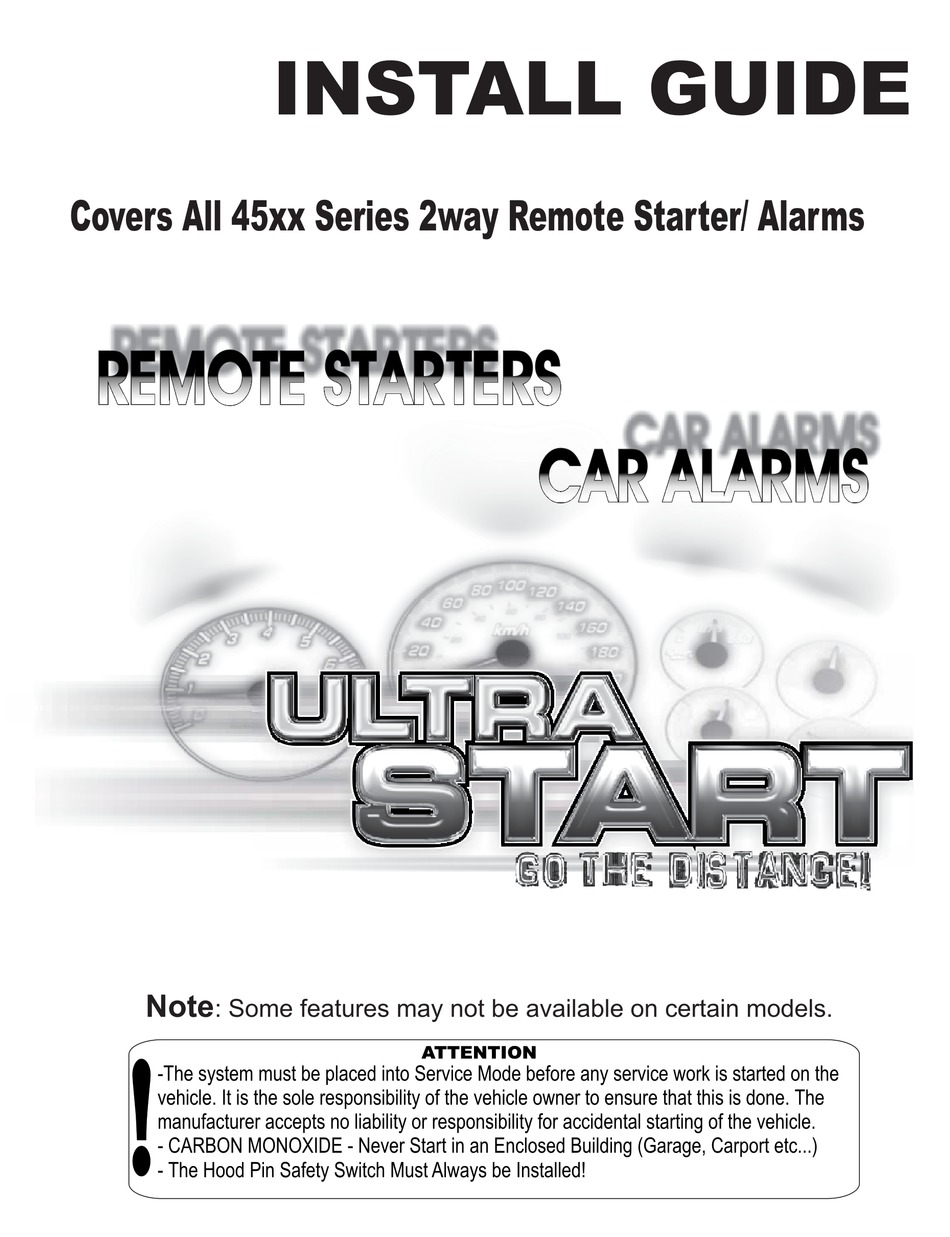

- Page 1 INSTALL GUIDE Covers All 45xx Series 2way Remote Starter/ Alarms REMOTE STARTERS CAR ALARMS ü Note : Some features may not be available on certain models. -The system must be placed into Service Mode before any service work is started on the vehicle.
-
Page 2: Table Of Contents
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 2 Table of Contents Pre-Installation Page 3 Components Feature List Pre-Installation Installation Procedures Page 4 Wiring Diagrams Page 5-7 Wire Description Page 8-9 6 Pin Connector 14 Pin Connector Auxiliary Outputs Optional Connectors Jumper Positions Quick Start Installation Page 10 Basic Installation... -
Page 3: Components
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 3 Components - Control module - 2way LCD & 1way transmitters - Antenna with built in - 6 pin main harness with dual - Program Button and LED’s 30 amp power inputs. - Multi-tone Siren - 3 pin auxiliary output harness - 14 pin harness - 4 pin Auxiliary sensor harness... - Page 4 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 4 Recommended Installation Procedures Proper Connections - Remote Starters can handle loads of up to 30 amps for extended periods of time. It is critical to insure that all high current connections are properly soldered and insulated with quality electrical tape. Failing to insure proper connections will result in warranty being VOID and can result in damage to the vehicle and remote starter module.
-
Page 5: Wiring Diagram
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 5 Wiring Diagram Starter Y ellow (+) 30amp Output Heater Green (+) 30amp Output Main Power (+) 30amp Input Main Power (+) 30amp Input Selectable White (+) 30amp Output Ignition 1 Blue (+) 30amp Output (-)250ma Output YELLOW FACTORY RE-ARM... - Page 6 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 6 Side View (-)250ma Output Door Lock Green (+)250ma Output 12volt Inverter Output Blue (-)250ma Output Door Unlock Pink (-)250ma Output Passenger Door Unlock (-)Input Sensor Pre-Warn Input Blue (-) Input Sensor Full-Warn Input Green (-)250ma Output Black...
-
Page 7: 14 Pin Connector
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 7 6 Pin Power Connector 6-pin Description Test For Wire 1-Yellow 30amp Starter Output This wire will test 0volts in off, accessory and in the ignition position.12volts during start only. 2-Green 30amp Heat/Acc Output This wire will test 0volts in the off position 12- 14volts in the accessory and run positions and 0 volts during start 3-Red... - Page 8 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 8 Continued From Previous Page 14 Pin Connector 11-Blue/White Tach A/C Tach Signal Input. Used to detect when the vehicle has started. This wire is connected to the vehicles coil, fuel injector or crank sensor wire. 12-Blue Glow Plug Diesel Glow plug input, detects both 12volt and...
-
Page 9: Plug-In The Module
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 9 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output 12volts during start position only. Green 30amp Heater Output 12volts in the accessory position off during start and 12volts during run. - Page 10 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 10 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output 12volts during start position only. Green 30amp Heater Output 12volts in the accessory position off during start and 12volts during the run position.
- Page 11 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 11 Manual Transmission “M” Models Never install an automatic transmission remote starter into a manual transmission vehicle!!! Doing so may result in serious injury or death. Do not install remote starters in convertible vehicles! The following wires must be connected In addition to the basic remote starter installation.
-
Page 12: Auto Tach Learn
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 12 Auto Tach Learn 1) Turn the ignition key to the “ON” position. (The park lights will turn on*). 2) Start the vehicle with the key, The LEDs on the antenna will turn on if a proper tach signal is detected**, then after 30-35 seconds the park lights will flash and the siren will chirp twice to confirm Tach Learn. -
Page 13: Important Tach Notes
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 13 Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM. -
Page 14: Entering Program Mode
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 14 Entering Program Mode 1) With the ignition in the OFF position, turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF-ON within three seconds. (Leave the key in the ON position) 2) Press and release the Program Button located on the antenna. The park lights will flash and the siren will chirp to confirm entering program mode. -
Page 15: Quick View Programming
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 15 Quick View Programming * See the following pages for more detailed programming instructions. Menu 1 - Press Lock 1 Flash 2 Flashes 3 Flashes 1 Ignition Lock Enabled Lock Only Disabled 2 Siren Chirp Type 1 Type 2 All Chirps... - Page 16 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 16 Menu 1- User Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Button #1 Setting 1 Ignition Auto Lock 1) Ignition Lock & Unlock Enable 1 Flash/Chirp Doors Lock/Unlock with Ignition key. 2) Ignition Lock Only 2 Flashes/Chirps Doors Lock when ignition is turned ON only.
- Page 17 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 17 Menu 1- User Settings continued from previous page Setting 5 Active/Passive Locks 1) No Auto-Lock with Passive Arm 1 Flash/Chirp No auto-lock with passive arming *2) Doors Auto-Lock with Passive Arm 2 Flashes/Chirps Doors Lock when passive arming Press &...
- Page 18 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 18 Menu 2 - Additional Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Button #2 Setting 1 Secure Valet Mode - Length of time required to set the system into Service Mode 1) Secure Valet 1 Flash/chirp Hold the Program Button for 15 seconds *2) Normal Valet...
- Page 19 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 19 Menu 3- Starter Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Button #3 Setting 1 Special Door Lock/Unlock Operations (Factory Alarm Rearm). 1) Type 1 1 Flash/chirp Unlock before start. Lock pulse after start and on shutdown. 2) Type 2 2 Flashes/chirps Lock pulse ONLY after remote start shutdown.
- Page 20 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 20 Setting 6 Anti-Grind/Starter Kill (Orange wire on 14-pin) 1) Active 1 Flash/chirp (-) when locked and during remote start (Anti-Grind). 2) Passive 2 Flashes/chirps (-) when locked /30 seconds after ignition is Off or unlock is pressed *3) Anti-grind 3 Flashes/chirps Output during remote start only.
-
Page 21: Transmitter Programming
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 21 Transmitter Programming Step 1 - Within 3 seconds turn the ignition ON-OFF-ON-OFF-ON - Leaving Key ON Step 2 - Press and hold the Program Button - The park lights will turn ON and the siren will chirp once.* Continue to hold the Program Button, the park lights will turn off and the siren will chirp 5 times quickly. - Page 22 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 22 Negative Type Door Locks 250ma Vehicle Lock To Control Lock/Unlock Relay or Switch Actuators lock Green Blue Negative Door Locks (More Than 250ma) Fused +12V Vehicle Ground Lock/Unlock Lock lock Switch Green Blue To Control Relay or Actuator Positive Type Door Locks...
- Page 23 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 23 5 Wire / Reverse Polarity Type Door Locks Fused +12V Green Blue Vehicle Lock To Actuator Lock/Unlock Switch lock Aftermarket Doorlock Actuators Ground Vacuum Type Door Locks DIAGNOSTICS Ground Fused +12V Green Blue Lock To Vacuum Pump...
-
Page 24: Diagnostics
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 24 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example when the start button is pressed the park lights flash 3 times slowly. Looking at the chart below this would indicate that the system is in Service Mode, simply follow the instructions listed in the owners manual on exiting Service Mode and the remote starter will begin to function as normal.
