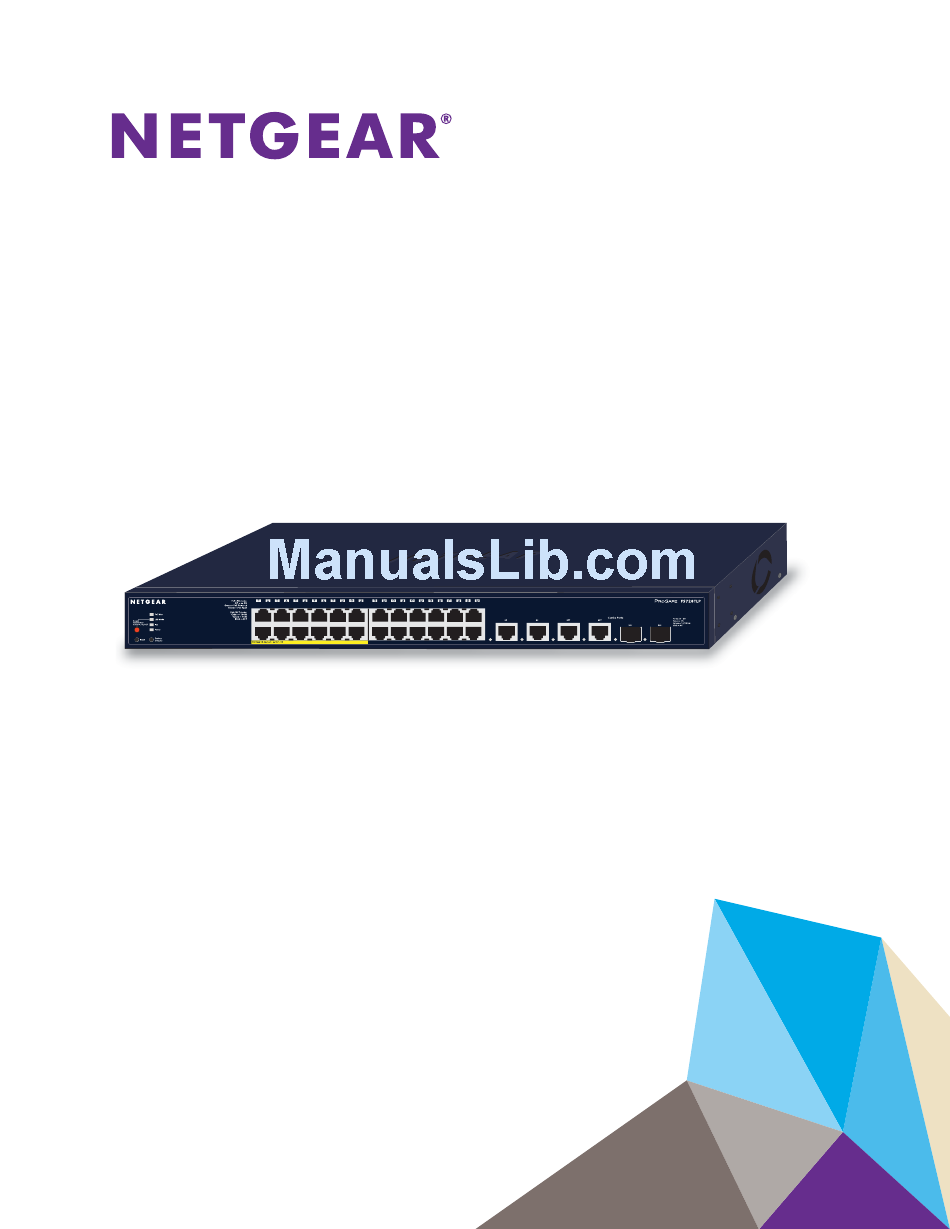

- Page 1 ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Ha rd wa re Installation Gui de July 2013 202-11250-02 350 East Plumeria Drive San Jose, CA 95134...
- Page 2 Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction and Hardware Description Overview........... . 5 Switch Features . -
Page 4: Chapter 1 Introduction And Hardware Description
Introduction and Hardware Description The NETGEAR® ProSAFE® Fast Ethernet PoE Smart Switch FS728TLP is a state-of-the-art, high-performance, IEEE-compliant network solution for users who require the flexibility of small form-factor pluggable (SFP) GBIC slots and the ease of Power over Ethernet (PoE). To simplify installation, the switch is shipped ready for use out of the box. -
Page 5: Overview
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Overview This hardware installation guide is for the NETGEAR ProSAFE Fast Ethernet PoE Smart Switch FS728TLP. The switch provides twenty-four 10/100BASE-T ports, four 10/100/1000BASE-T ports, two of which function as combo ports, and two small form-factor pluggable (SFP) GBIC slots, both of which function as combo ports. -
Page 6: Switch Features
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Figure 1. Example of a network configuration Switch Features The following list identifies the key features of the switch: • Twenty-four RJ-45 10/100 Fast Ethernet switch ports. • Four RJ-45 10/100/1000 Gigabit Ethernet switch ports, two of which (27T and 28T) function as combo ports. - Page 7 ProSAFE Fast Ethernet PoE Smart Switch FS728TLP • The switch provides full compatibility with IEEE standards: IEEE 802.3i (10BASE-T) IEEE 802.3u (100BASE-TX, 100BASE-FX) IEEE 802.3x (full-duplex flow control) IEEE 802.3z (1000BASE-X) IEEE 802.3ab (1000BASE-T) IEEE 802.3af (Power over Ethernet) IEEE 802.3az (EEE) •...
-
Page 8: Package Contents
Installation guide • Warranty support information card If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. Introduction and Hardware Description... -
Page 9: Front Panel
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Front Panel The switch provides twenty-four 10/100BASE-T ports, four 10/100/1000BASE-T copper ports, two of which (27T and 28T) are combo ports, and two small form-factor pluggable (SFP) GBIC slots, both of which (27F and 28F) function as combo ports. -
Page 10: Back Panel
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Back Panel The back panel provides a 100–240 VAC/50–60 Hz universal power inlet, which is a standard AC power receptacle that accommodates the supplied power cord. Figure 5. Back panel LEDs The following table describes the LEDs. -
Page 11: Product Label
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Table 1. LED descriptions (continued) Port Designation Twenty-four 10/100BASE-T Link/ACT • Off. No link is established on the port. ports (one LED for each port) • Solid green. A valid 100 Mbps link is established on the port. -
Page 12: Rj-45 Ports
In other words, the combo ports function on a first-come, first-served basis. The switch supports NETGEAR SFP GBIC modules such as the AGM731F and AGM732F. Factory Defaults Button and Reset Button The switch has a Factory Defaults button to clear the configuration and return the switch to the factory settings. -
Page 13: Chapter 2 Installation
Installation This chapter describes how to install the switch, which involves the steps that are described in the following sections: • Step 1: Prepare the Site • Step 2: Install the Switch • Step 3: Check the Installation • Step 4: Connect Devices to the Switch •... -
Page 14: Step 1: Prepare The Site
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Step 1: Prepare the Site Before you install the switch, ensure that the operating environment meets the requirements in that are described the following table. Table 2. Site requirements Characteristics Requirements Mounting •... -
Page 15: Install The Switch In A Rack
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Install the Switch in a Rack To install the switch in a rack, you need the 19-inch rack-mount kit that is supplied with switch. Note: To prevent the rack from overbalancing and toppling over, install devices from the bottom of the rack to the top. -
Page 16: Step 3: Check The Installation
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Step 3: Check the Installation Before you apply power to the switch, do the following: • Inspect the equipment thoroughly. • Verify that all cables are installed correctly. • Check cable routing to make sure that cables are not damaged or creating a safety hazard. -
Page 17: Step 5: Install An Sfp Gbic Module
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Step 5: Install an SFP GBIC Module If you do not plan to install an SFP GBIC module, skip this step. NETGEAR SFP GBIC modules are sold separately from the switch. To install an SFP GBIC module: Insert the SFP module into one of the SFP slots (27F or 28F). -
Page 18: Step 7: Manage The Switch Through A Web Browser Or Through The Smart Control Center
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Step 7: Manage the Switch through a Web Browser or through the Smart Control Center The switch contains management software that lets you view, change, and monitor the way the switch functions. The management software is not required for the switch to function. You can use the ports without using the management software. -
Page 19: Chapter 3 Troubleshooting
Troubleshooting This chapter describes how you can troubleshoot the switch. The chapter covers the following topics: • Troubleshooting Chart • Troubleshooting Suggestions... -
Page 20: Troubleshooting Chart
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Troubleshooting Chart The following table lists symptoms, causes, and solutions of possible problems. Table 3. Troubleshooting chart Symptom Cause Solution Power LED is off. No power is received. • Check the power cord connections for the switch at the switch and the connected device. -
Page 21: Configuration
ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Configuration If problems occur after you alter the network configuration, restore the original connections and determine the problem by implementing the new changes, one step at a time. Ensure that cable distances, repeater limits, and other physical aspects of the installation do not exceed the Ethernet limitations. -
Page 22: Appendix A Physical And Technical Specifications
Physical and Technical Specifications This appendix provides the physical and technical specifications for the switch. Table 4. Physical and technical specifications Feature Description Network protocols and • IEEE 802.3i (10BASE-T) supported standards • IEEE 802.3u (100BASE-TX, 100BASE-FX) • IEEE 802.3x (full duplex-flow control) •... - Page 23 ProSAFE Fast Ethernet PoE Smart Switch FS728TLP Table 4. Physical and technical specifications (continued) Feature Description Dimensions (H x W x D) • 1.7 x 17.3 x 8.03 in. • 43 x 440 x 204 mm Weight • 6.44 lb •...
