Installing Modules

Refer to the documentation shipped with the module for configuration information.
To install a module, remove the blank bracket (if present) covering the slot where the
module will be installed. Slide the module into the chassis using the card guides, and
secure the module to the chassis by tightening the captive screw. Each module slot
provides 1.5 Amps, which is enough power to accommodate most any type of
application modules.

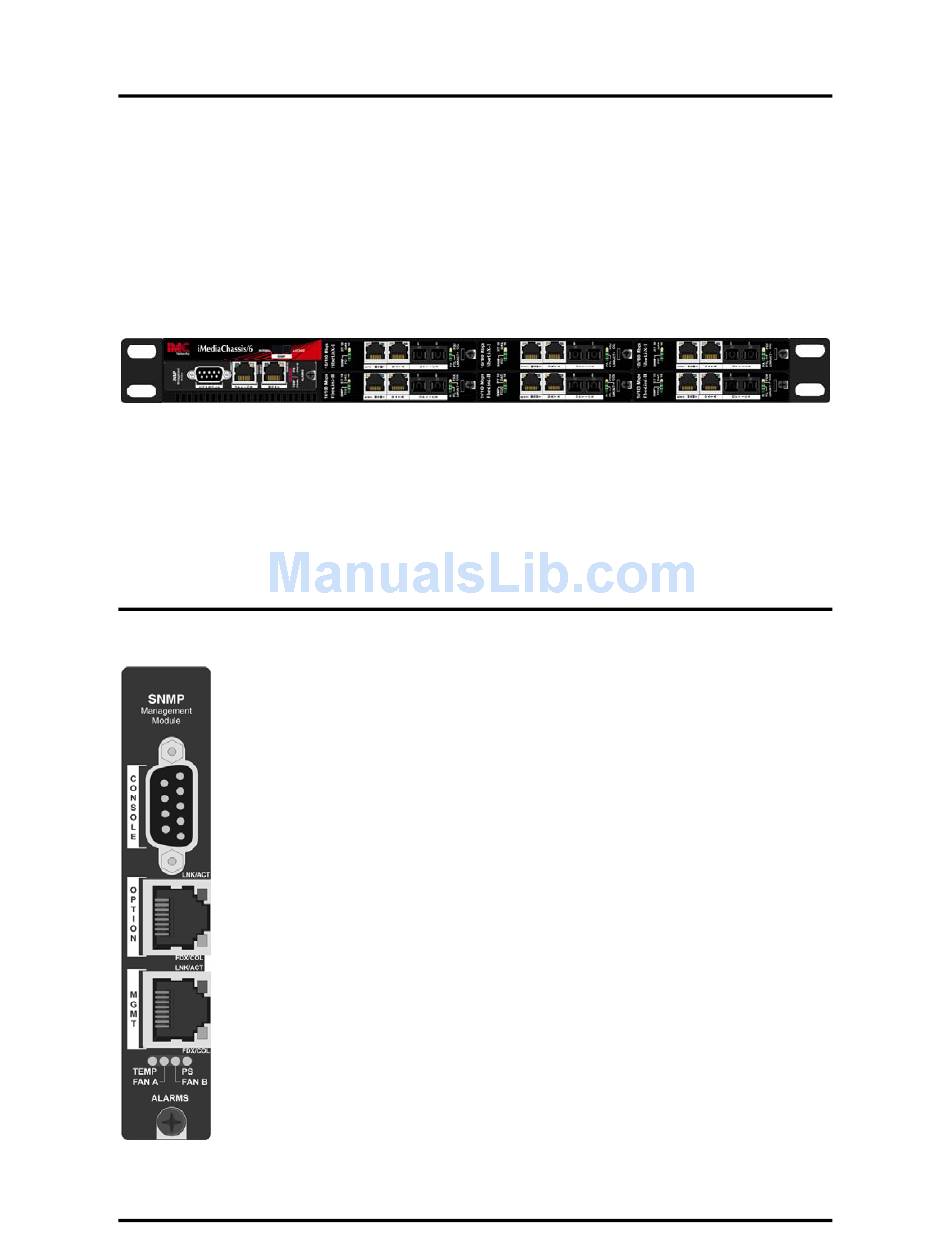

Installing the SNMP Management Modules
In order to manage an iMediaChassis/6, a SNMP Management Module must be
installed. SNMP Management Modules install in the first slot, on the far left of the
chassis. This slot is ONLY for the management module; do not install Application
Modules such as media conversion and mode conversion modules in this slot. Follow
the instructions for installing a module.

SNMP Management Module LEDs

Each SNMP Management Module features the following LEDs.
LNK/ACT:
Glows green when a link is established on port.
Blinks green when data activity occurs.
FDX/COL:
Glows yellow when port is in Full-Duplex mode.
Blinks yellow when port is operating in Half-Duplex mode and collisions
occur.
TEMP:
Glows yellow when temperature of unit surpasses a user-defined level.
PS:
Glows yellow when one power supply malfunctions.
FAN A/FAN B:
Glows yellow when a fan malfunctions.
