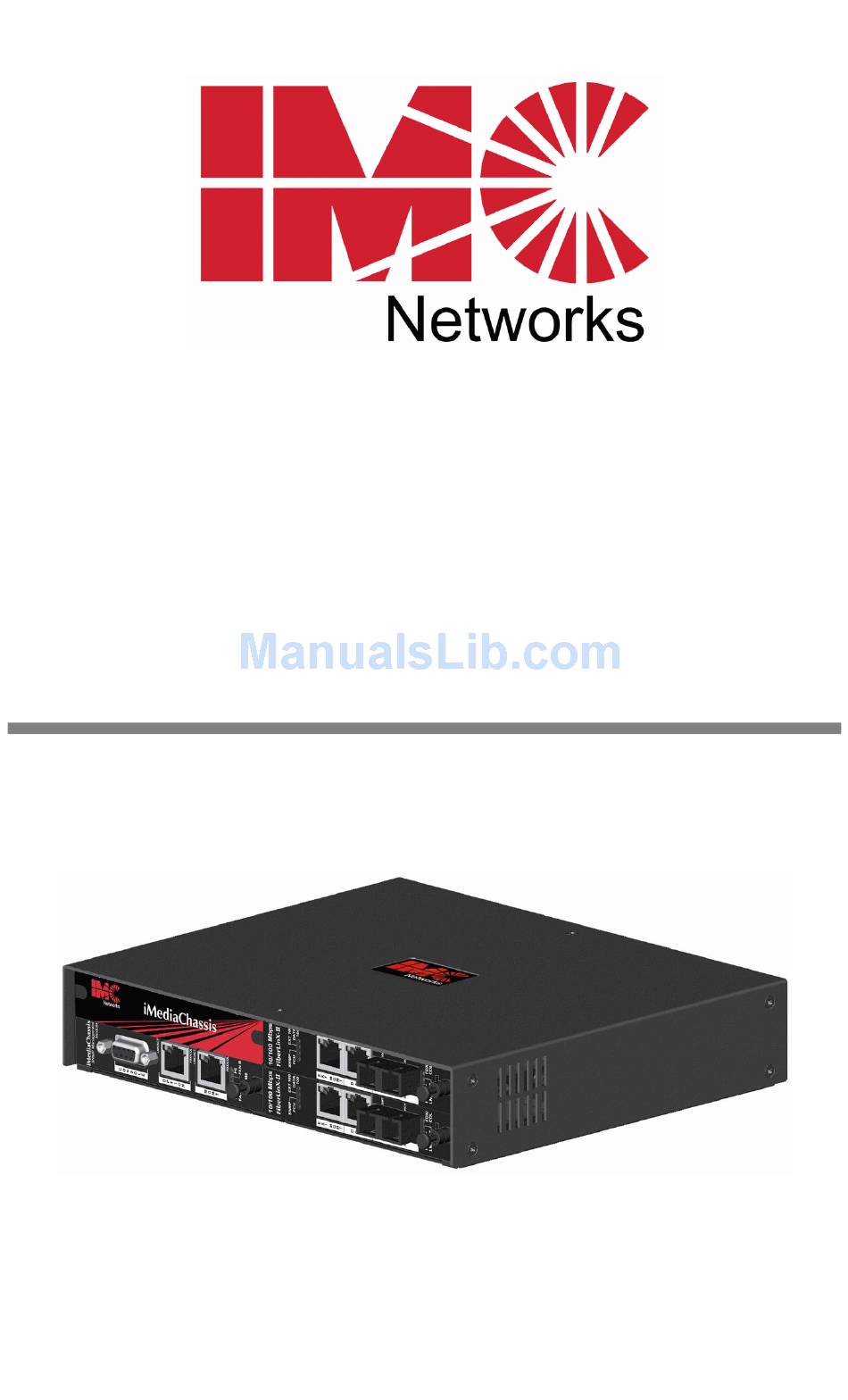

  • Page 1 Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty ........................ii About the iMediaChassis/3 ..................4 Installing the iMediaChassis/3 ..................5 Installing Application Modules ...................5 Installing Management Modules ................6 Connecting Chassis and Modules ................7 Configuring an SNMP-Management Card ..............7 SNMP Write Lock .....................7...

  • Page 4: About The Imediachassis/3

    About the iMediaChassis/3 The iMediaChassis/3 is a modular chassis platform designed for use with the IMC Networks SNMP-manageable series of modules (iMcV). The iMediaChassis/3 features three slots for installing application series modules plus an additional slot for installing an SNMP management module. The included SNMP Lock feature allows the management slot to save SNMP settings while the management module is removed.

  • Page 5: Installing The Imediachassis/3

    Installing the iMediaChassis/3 Before installing the application modules into an iMediaChassis/3, install the chassis first. When installing the chassis, be sure to observe the following precautions to prevent electrical or mechanical damage: • Stay within the chassis power rating to prevent overload of supply circuits or damage to overcurrent protection and supply wiring.

  • Page 6: Installing Management Modules

    Slot 2 Management Slot Slot 3 An SNMP Management Module must be installed in the iMediaChassis/3 to enable module and chassis management (except when using modules with built-in management, such as the iMcV-Giga-FiberLinX-II). The SNMP Management module installs in the management slot located at the bottom left of the chassis. This slot is only for the management module;...

  • Page 7: Connecting Chassis And Modules

    Connecting Chassis and Modules An iMediaChassis/3 with an installed management module connects to the LAN via an external 10/100 twisted pair connection. Connect the chassis to the network by plugging one end of a CAT-5 twisted pair cable into the port labeled MGMT on the management card, or the management-enabled application card.
  • Page 8 The switch has two settings. OFF is the normal operating position and ON is the locked position. IMPORTANT USAGE INFORMATION Leave the SNMP Write Lock switch in the OFF position during day-to-day operation. ONLY move the switch to the ON position when changing the SNMP management board.

  • Page 9: Using Telnet

    DHCP client will initiate a dialogue with the server during the boot up sequence. The server will then issue an IP address to the iMediaChassis/3. Once the new IP address is received, the iMediaChassis/3 will reboot so that the new IP address will take effect.

  • Page 10: About Iconfig

    About Serial Port Configuration The SNMP management module used with the iMediaChassis/3 features a serial port that includes an IBM-compatible DB-9 serial connector. To connect an iMediaChassis/3 to a computer, use a straight- DB-9 Pin Connection Chart through (pin-to-pin) cable.
  • Page 11 Main Serial/Telnet Configuration Screen After running through an initial self-test, the screen will display the following message: “<Press Enter> for Device Configuration.” Press Enter to display the main configuration screen: Saved Values. <These values will be active after reboot> IP Address 000.000.000.000 Subnet Mask 000.000.000.000...

  • Page 12: Assigning Ip Information

    NOTE The F2 key functions as a Delete key on VT-100 terminal emulators. Reboot after making any modifications to the Saved Values or changes will not take effect. To reboot, type the word reboot at the prompt on the main configuration screen, or cycle the power.

  • Page 13: Removing Trap Destinations

    To remove password protection, select P and instead of entering a password press Enter. It is the responsibility of the network administrator to store and maintain the password lists. If passwords are lost, neither the end user nor IMC Networks can retrieve them. Enabling/Disabling DHCP To Enable/Disable DHCP, press D.
  • Page 14 Displays a list of installed modules including slot location. Downloading Files The iMediaChassis/3 accepts firmware downloads from a central server by using TFTP protocol. Use serial configuration or a Telnet session to perform this download. Make sure the IP Address and the name of the file are correct in the Current Values section of the Main Configuration screen.

  • Page 15: Before Using Iview²

    Before using iView² iView² is a network management application designed for use on the IMC Networks intelligent networking devices. It features a graphic user interface (GUI) and gives network managers the ability to monitor and control products from a variety of platforms.

  • Page 16: Power Supply

    Refer to the management software documentation for information on how MIB files are integrated into the software. Power Supply The iMediaChassis/3 ships with one or two AC or DC power supplies, or one of each, depending on the model. DC Power Supply Wiring Instructions The following image shows the wiring configuration for a Telco application of -48 VDC power supply for the iMediaChassis/3.

  • Page 17: Temperature Control

    IMC Networks for repair or replacement. Last Gasp Alarm The iMediaChassis/3 includes the Last Gasp feature which sends a Trap when both power supplies malfunction, when both power supplies are powered down, or when the AC line fails.

  • Page 18: Specifications

    Humidity: 5 to 90% (non-condensing); 0 to 10,000 ft. altitude Dimensions: H=1.73” W=7.50” D=8.74” (4.4 x 19.0 x 22.0 cm) Heat Output: 171 BTUs IMC Networks Technical Support Telephone: (949) 465-3000 (800) 624-1070 (U.S.A. and Canada) Toll Free: Europe: +32-16-550880...

  • Page 19: Safety Certifications

    (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 20 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMediaChassis/3 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
