Summary of Contents for IMC Networks iMcV-PSE-MidSpan

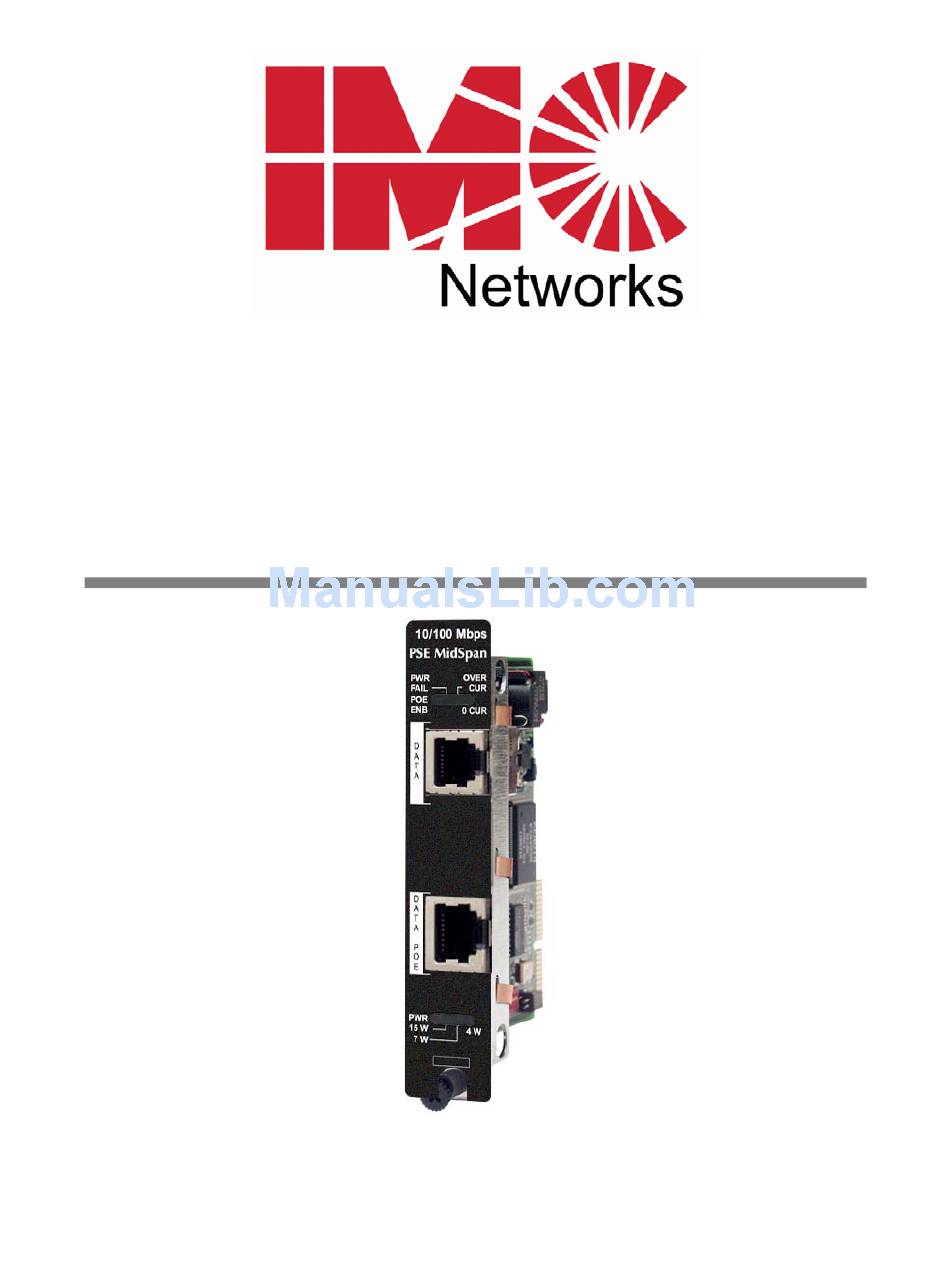

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii Introduction to the iMcV-PSE-MidSpan ..............1 Application Diagram ..................1 LED Indicators....................2 Installation ......................3 Configuring the iMcV-PSE-Midspan with iView² ..........4 Fiber Optic Cleaning Guidelines.................6 Electrostatic Discharge Precautions..............6 Safety Certifications....................7... - Page 4 Notes...
-
Page 5: Introduction To The Imcv-Pse-Midspan
RJ-45 ports are provided, one for data and one for a combination of data and a Power over Ethernet (PoE) supply. Application Diagram The following diagram shows how the iMcV-PSE-MidSpan would be used with an iMediaChassis in a typical network:... -
Page 6: Led Indicators
LED Indicators The iMcV-PSE-MidSpan features several diagnostic LEDs. The LED functions are as follows: PoE ENA Glows green when PoE functionality is enabled. PWR FAIL Glows red when an overcurrent or internal fault is detected within the PSE-MidSpan PoE circuit. -
Page 7: Installation
Installation The iMcV-PSE-Midspan may be installed in the iMediaChassis/3, iMediaChassis/6 and iMediaChassis/20. Each module will take one slot in the chassis. NOTE Due to power limitations in iMediaCenter series chassis, the installation of an PSE- Midspan into an iMediaCenter chassis is highly discouraged and will void the PSE- Midspan’s warranty. -
Page 8: Configuring The Imcv-Pse-Midspan With Iview²
Configuring the iMcV-PSE-Midspan with iView² The PSE-MidSpan has been designed for use with a managed chassis, configured through iView² software. To configure the PSE-MidSpan, open the iView2 software and select the chassis in which the PSE-MidSpan has been installed. When Auto Discovery detects the chassis and identifies the PSE-MidSpan, select it to configure The screen that appears will show the PSE-Midspan’s LEDs and settings. - Page 9 IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Physical Specifications Dimensions: 4.19” x .78” x 2.75” Environmental Operating Temperature: 32° - 122° F (0° - 50° C) Storage Temperature: 0°...
-
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 © 2008 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-AddDrop-Insert is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
