  • Page 1 Please note: In order to keep the file size small this PDF-File exists only of the internal pages of the original manual which contains the important technical information!

  • Page 2: Handling And Care

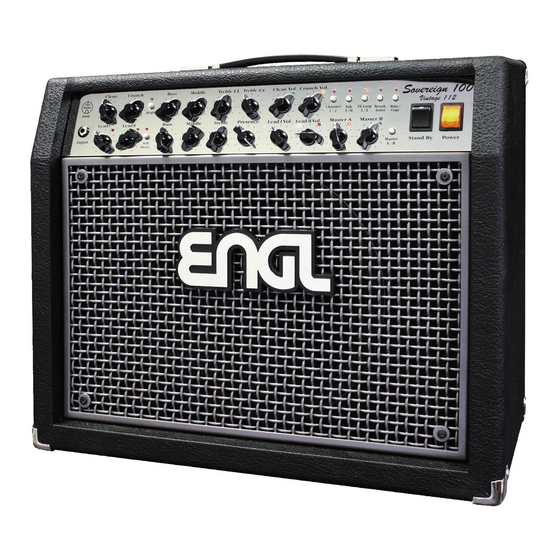

    The ENGL SOVEREIGN 100 is on the cutting edge of modern guitar technology, it boasts a number of efficient features and operating modes: three channels, Clean, Crunch and Lead equipped with three Gain controls and a several Sound pushbuttons. Clean channel settings are variable from crystal-clear clean rhythm tone to loud high-gain tone ideal for clean soloing.

  • Page 3: Front Panel

    The last page contains a front- and backpanel illustration! FRONT PANEL TIP 1 1 GAIN ..........................Input sensitivity control for the Clean channel. TIP 2 2 BRIGHT (Lo/Hi) ......................Alters the EQ by boosting the upper treble range in the Clean Channel; effectiveness decreases at higher GAIN (1) settings.
  • Page 4 14 LEAD Controls the amount of distortion in the LEAD mode; the GAIN (12) and LEAD controls are used to define the relationship between the Crunch and Lead signals. CAUTION: Extremely high gain and volume levels in the Crunch and Lead mode can produce strong feedback.

  • Page 5: Rear Panel

    REAR PANEL 28 AC SOCKET Connect AC cord here ATTENTION: Ensure you use an intact AC cord with an insulated plug only! Before you power the amp up, ensure the voltage value printed beside the AC socket corresponds to the available current. 29 AC FUSE BOX Contains mains fuse (rear chamber) and spare fuse (front chamber) NOTE: Ensure replacement fuses bear identical ratings (refer to the table)!
  • Page 6 37 POWER TUBE FUSE Fuse (refer to the description of the E.C.S. on page 10) for the left power tube (the far left tube when viewed from the rear of the chassis); the LED above the fuse illuminates when this fuse is blown. Replacement fuses (160 mAM) are located at the housing´s rear panel.
  • Page 7 TIP 1 GAIN settings depend on what type of pickups are installed in your guitar. The recommended setting for humbuckers or active pickups lies between the 11 and 2 o’clock positions, and 1 to 4 o’clock for single coils, for a pure clean response. More over increased gain will produce a touch of overdrive in the preamp.
  • Page 8 Additional TIP: The SOVEREIGN 100 is equipped with removable wheels, which are located in the speakers housing and packed separately when the amp is being delivered. You can incline the amp by removing the rear wheels, to alter the response-angel of the speakers.

  • Page 9: Technical Data

    Technical Data Rated power: 100 W Power Outlet Impedances : 4, 8 and 16 ohms Minimum Input level: - 43 dB Maximum Input Level: - 3 dB Effects loop: SEND - 10 dB (average), - 3 dB (max.) RETURN dB (max.) LINE output: dB (at 1kHz!) Levels are based on 0db =>...
  • Page 10 EVERB TO RAIN OR MOISTURE ! OWERAMP UTPUT PRING OVER- LOAD WIRED FOR: 100 W All-tube Guitar Combo Amp EFFECT SOVEREIGN 100, TYPE 740 HANNEL EVERB ETURN 160 mA 160 mA 160 mA 160 mA MADE IN GERMANY CRUNCH / V.
