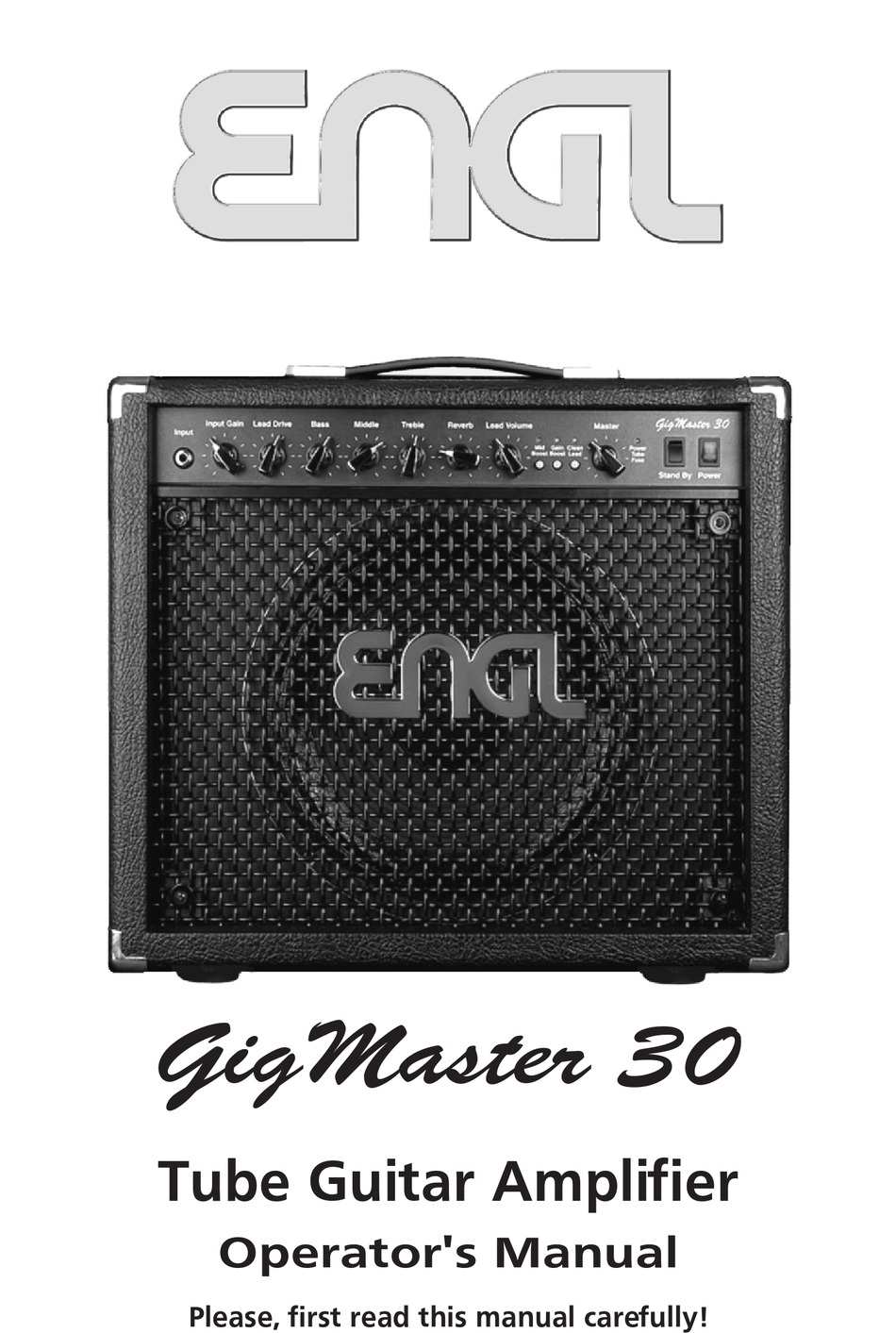

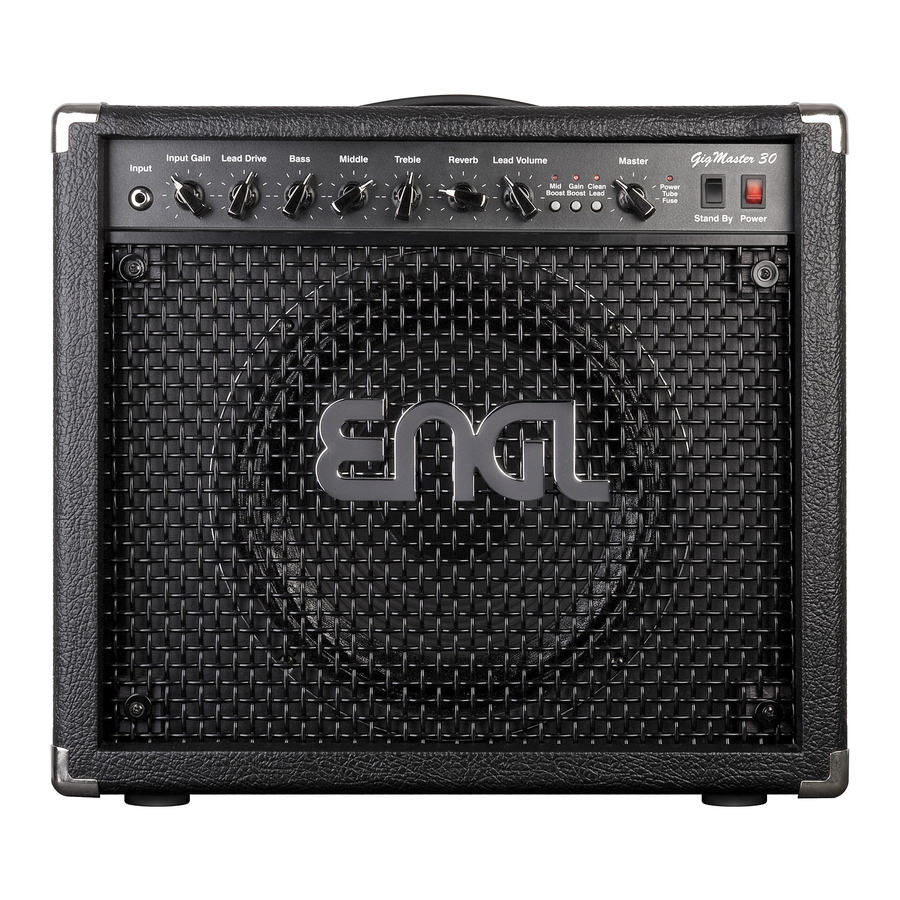

- Page 1 GigMaster 30 Tube Guitar Amplifier Operator's Manual Please, first read this manual carefully!
-
Page 2: Front Panel Features
All critical information pertaining to the operation of this amp is preceded by "NOTE" or "CAUTION." Please pay particular attention to these safety tips. The ENGL team wishes you all the best—may you and your amp enjoy a "harmonically rich" future together! Front Panel Features... - Page 3 7 Reverb: Reverb intensity knob. Twist it to adjust the amount of reverb for Clean and Lead. Turn the Reverb control knob clockwise to increase the effect's intensity. The signal remains completely dry when the knob is set to the 7 o'clock position or if Reverb is deactivated via a footswitch. You can switch the reverb unit on and off using a footswitch connected to jack 18.
-
Page 4: Rear Panel Features
18 Footswitch FX Off/On; Reverb: Use this ¼" Stereo jack to connect a conventional footswitch with two switching functions, for example, the ENGL Z-4 (2 x off/on - Single Pole Single Throw or SPST for short). This type of footswitch lets you switch the FX Loop and Reverb off and on. - Page 5 Output A (jack 26) and Output B (jack 27), for example a combination of the internal 8-ohm speaker of the Combo E300 and an external 8-ohm cabinet, e.g. the ENGL models E112 or E412. CAUTION: If you intend to use a 16-ohm cabinet only, make absolutely certain you connect it to Output A (jack 26).
-
Page 6: Technical Data
Running the amp at mains voltages exceeding the nominal mains input voltage over longer periods can also shorten component life. * Replace tubes with selected tubes that satisfy ENGL selection criteria to forestall microphonic properties, undesirable noise and unbalanced power amp signals. -
Page 7: Troubleshooting
(Refer to "Wiring of Principal Connectors" for pin assignments.) -> If you are using footswitches other than an ENGL Z-4 or Z-11, are the switches or relays inside the boards or switching loop systems off / on Single Pole Single Throw (SPST) switches? In other words,... - Page 8 ON/OFF or -> 1. Use a dual footswitch such as the ENGL Z-4, connecting it to the amp via a stereo cord equipped with ¼" jack plugs. You can switch channels and Gain Boost via the dual footswitch connected to port 20, Mid Boost and M.V.B.
