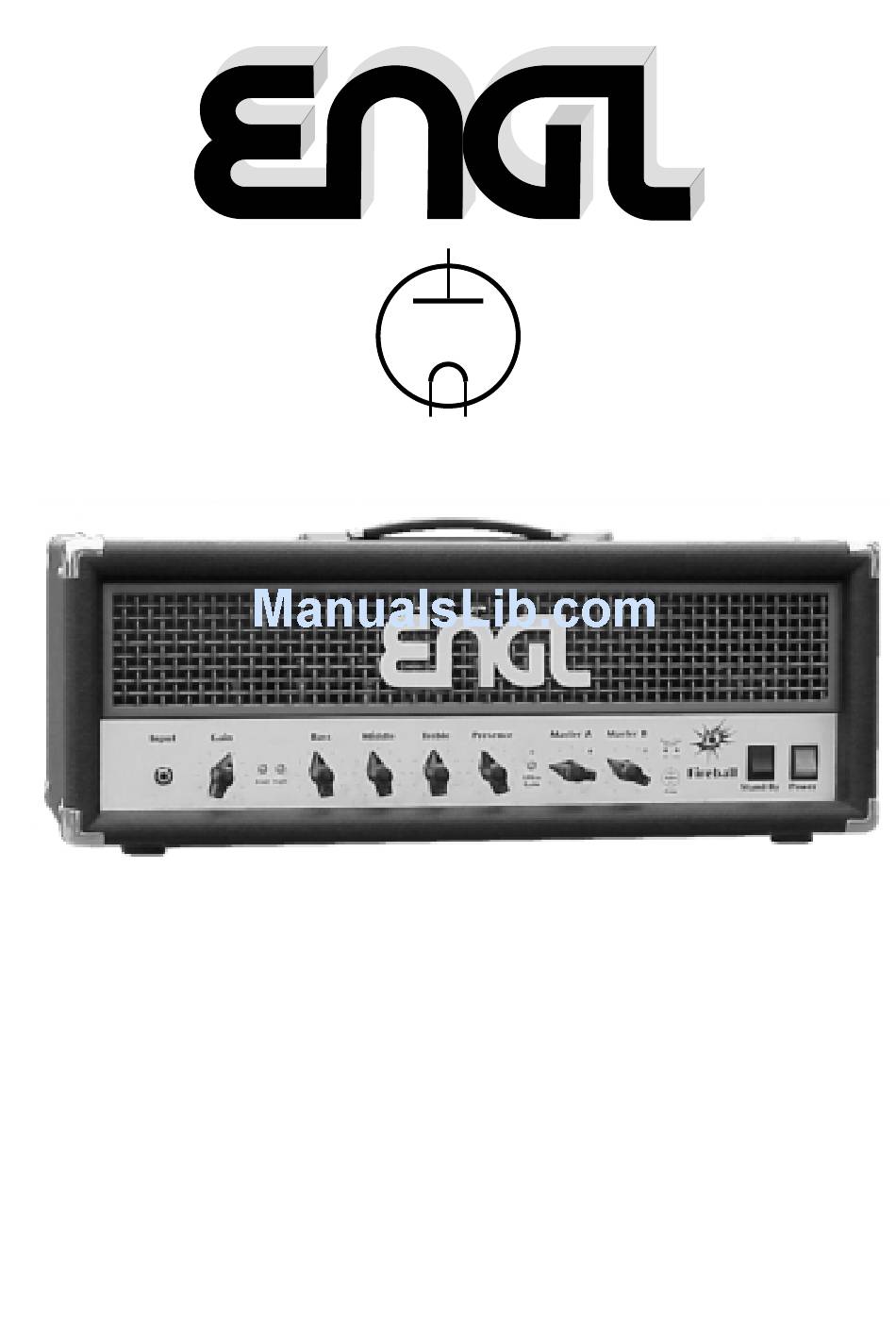

- Page 1 Tube Fireball Full Tube Guitar Amplifier Operator´s Manual Please, first read this manual carefully!
-

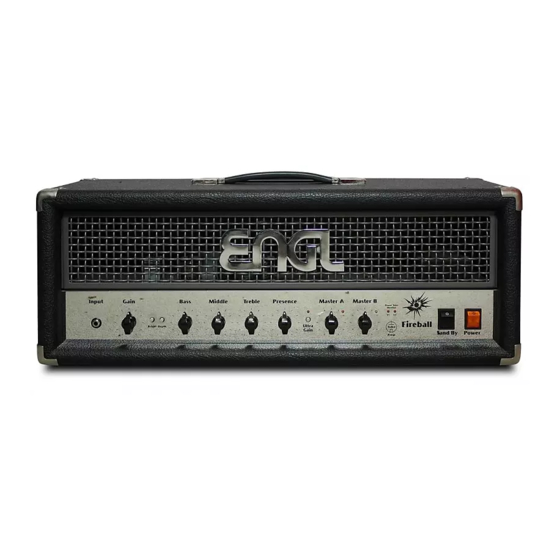

Page 2: Front Panel
Its vast gain reserves make the FIREBALL the king of the hill, the no. 1 rock amp in the business. Delivering tight bottom end, smooth top end, and incredible sound pressure levels, this amp puts into the hands of today's guitarists the sonic tools they need to carve out highly defined, expressive tones of their own. - Page 3 8 Presence This control shapes the Treble response in the power amp stage. A TIP from the Designer: To help you get acquainted with the amp's fundamental sounds, I recommend that you set all tone controls to the center or 12 o'clock position. For ultra hi-gain sounds, your best bet is to turn the treble and presence knobs well down to prevent the pickups and speakers from interacting at hi levels and generating feedback (the recommended setting is somewhere in the 8 to 12 o'clock range).
-
Page 4: Rear Panel
2 x 210": ENGL 210, 16 ohms (8 ohms parallel), connected to jack 22 and 23. 2 x 212": ENGL 212, 16 ohms (8 ohms parallel), connected to jack 22 and 23. 2 x 412": ENGL 412 slanted or straight, 8 ohms (16 Ohm serial), connected to jack 24 and 25. - Page 5 ON/OFF Options for controlling the Fireball amp remotely: 1. Two-way footswitch (e.g. ENGL Z-4): Connect it to the amp (jack 18) via a stereo ¼" cord. Functions: Normal - Ultra Gain, Master A - Master B. 2. MIDI-Switcher (e.g. ENGL Z-11): Connect the unit to the amp viaw stereo ¼" cords. The buttons on the Switcher control Normal - Ultra Gain, Master A - Master B.
-
Page 6: Handling And Care
"Instruction for the prevention of fire, electric shock or injury of persons". Be sure to read it before you plug the preamp in and switch it on! ENGL Gerätebau GmbH, Germany; internet: http\\www.engl-amps.com Text, design, graphics, photography and layout by Horst Langer...
