Summary of Contents for Engl Powerball

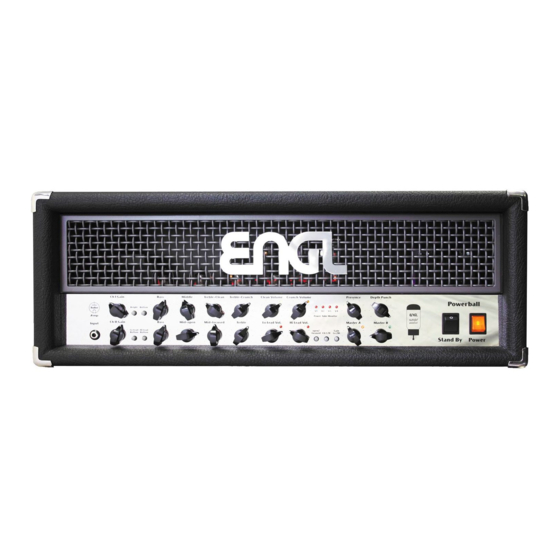

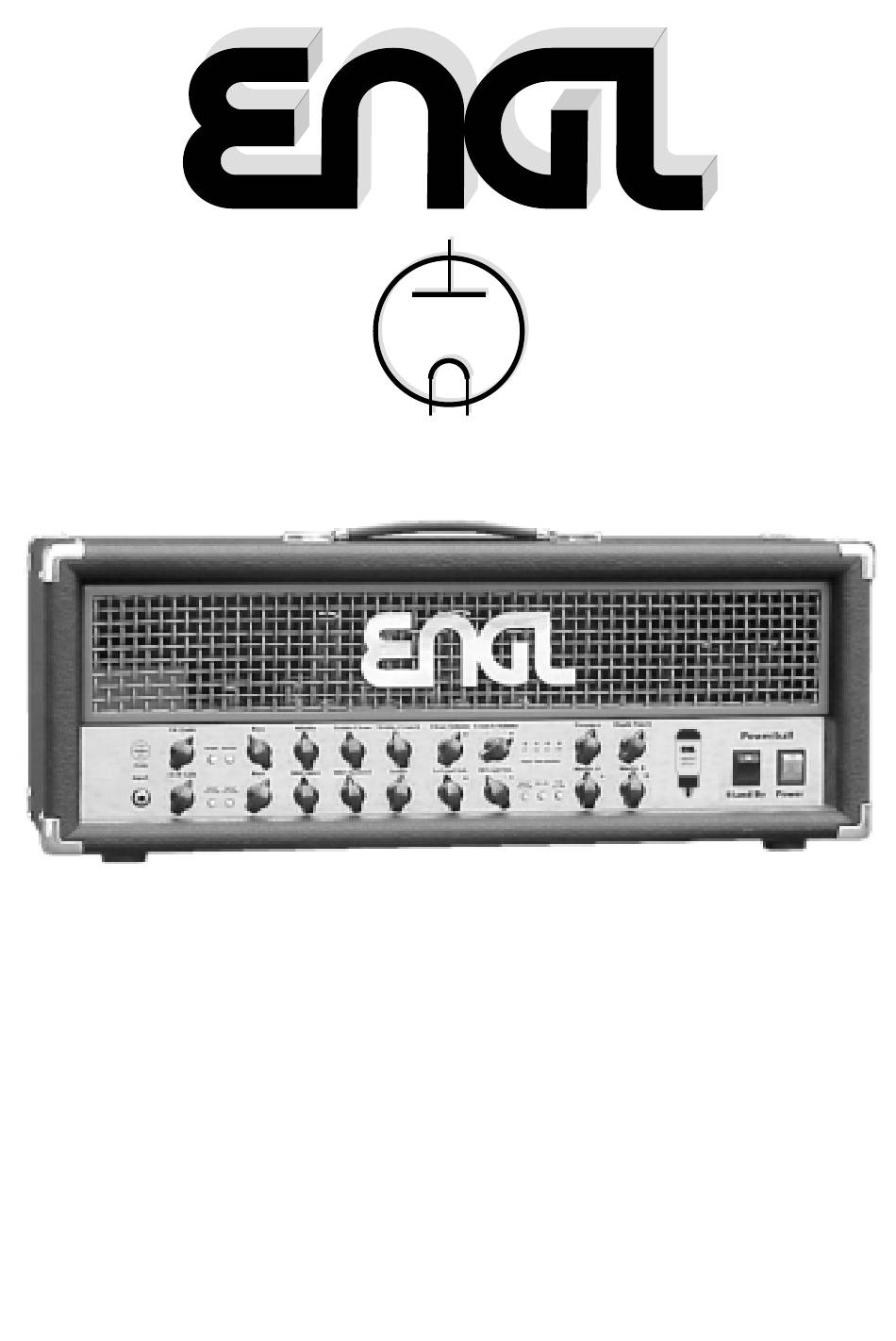

- Page 1 Tube Tube Powerball Full Tube Guitar Amplifier Operator´s Manual Please, first read this manual carefully!
-
Page 2: Front Panel
Powerball is no exception. On that note, please read and heed the guidelines on handling all-tube amps. You'll find them on the last page of this manual. The ENGL team is convinced that this amp will delight and inspire you. The... - Page 3 5 Bass Bottom end voicing control of the preamps´s passive EQ for Main Channel I, Clean und Crunch. 6 Middle Mid-range voicing control of the preamps´s passive EQ for Main Channel I, Clean und Crunch. 7 Treble-Clean Upper range voicing control of the preamps´s passive EQ for Main Channel I, Clean mode. 8 Treble-Crunch Upper range voicing control of the preamps´s passive EQ for Main Channel I, Crunch mode.
- Page 4 Master volume A for power amp output (located post FX loop). The red LED next to the knob lights up when this knob determines the master volume level. Master A/B switching can be accessed via a footswitch connected to jack 35 (e.g. ENGL Z-4) or 37 (ENGL Custom Footswitch Z-5). 30 Master B Master volume B for power amp output (located post FX loop).
-
Page 5: Rear Panel
(refer to the table)! 35 Footswitch Master A - B; Style open - focused 1/4" Stereo jack designed to take a dual footswitch (e.g. ENGL Z-4) for the following functions: 1. Switching between the two Master volume controls A and B (mono terminal);... -
Page 6: Technical Data
The different options for controlling the Powerball amp remotely: 1. Two-way footswitch (e.g. ENGL Z-4): Connect it to the amp via a stereo ¼" cord. You will need one two-way footswitch for switching channels via Jack 36 and another footswitch for switching Master A/B and Style via Jack 35. - Page 7 Sound setting samples: Ch I Gain Bass Middle Treble-Clean Treble-Crunch Clean Volume Crunch Volume Presence Depth Punch Bright Bottom Tube Power Tube Monitor 6L6GC Ch II Gain Bass Mid-open Mid-focused Treble Lo Lead Vol. Hi Lead Vol. Master A Master B powered Input Lo Lead...
-
Page 8: Handling And Care
Text, design, graphics, photography and layout by Horst Langer, ENGL Amp Designer W e r e s e r v e t h e r i g h t t o m a k e u n a n n o u n c e d t e c h n i c a l u p g r a d e s !
