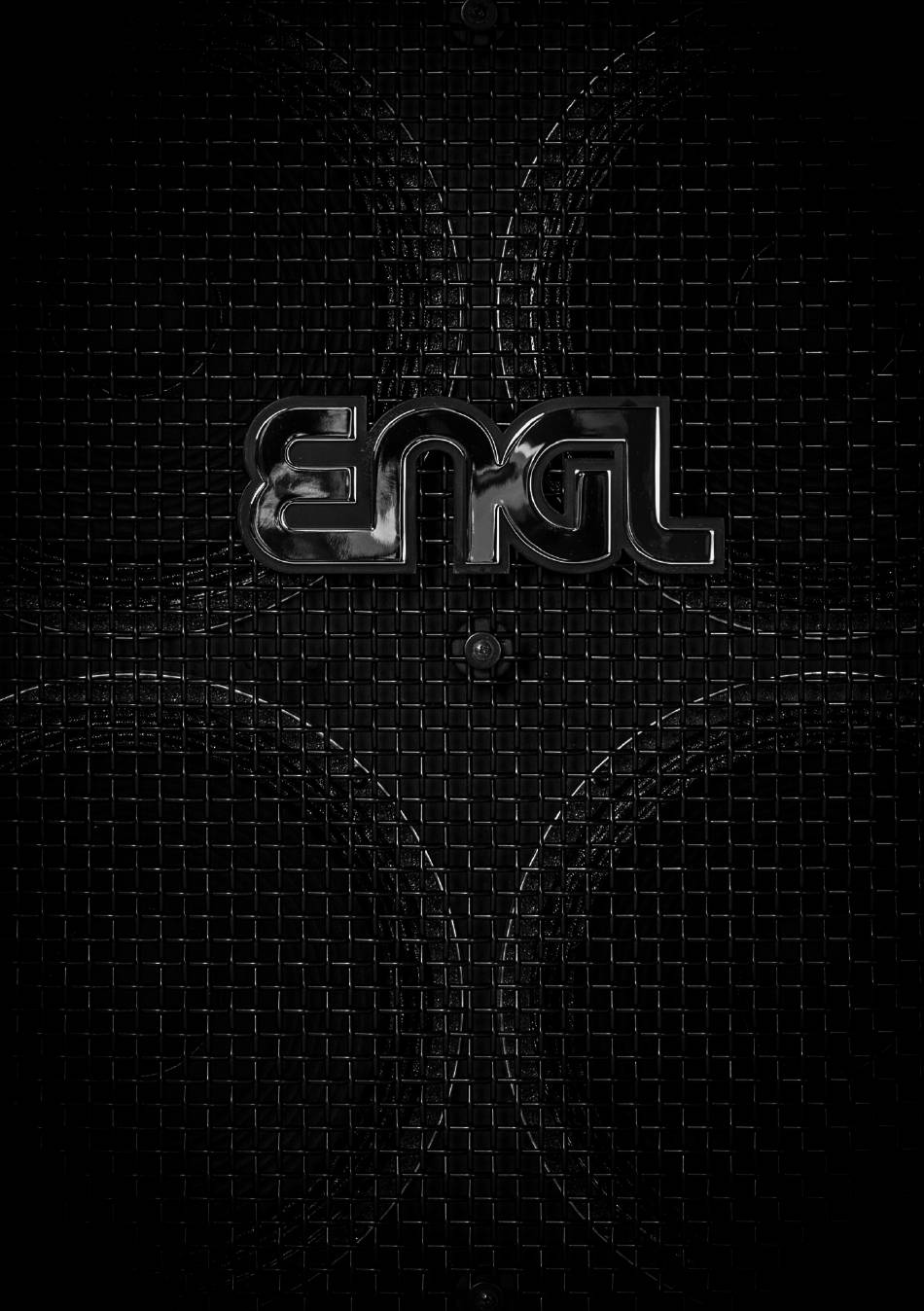

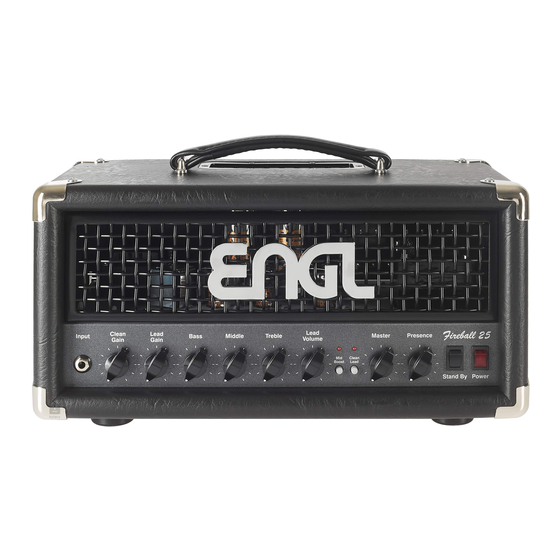

- Page 1 E633 Fireball 25 Operator´s Manual...
- Page 2 Input Input ¼“ (6.3mm) unbalanced input. Plug your guitar in here using a shielded cord. Clean Gain Gain control for the Clean channel. Lead Gain Gain control for the Lead channel. Bass Bottom end voicing control of the preamp´s passive EQ. Middle Mid-range voicing control of the preamp´s passive EQ.
- Page 3 Stand By Power amp Stand By switch: Use this switch to silence (0 position) the amp when you take a longer break. The amp‘s tubes stay nice and toasty, and the amp is ready to roll immediately when you ramp it back up to full power.
- Page 4 Mid Boost, FX Loop, (conventional 6.3mm / ¼“ TRS). Use this jack to connect a conventional footswitch with two switching functions, i.e. the ENGL Z4 (2 x off/on – Single Pole Single Throw or SPST for short). Tip: switching Mid Boost on and off.
- Page 5 You can feed this signal to another linear power amp. Another option is to patch it through an outboard filter to emulate a speaker, or for example into the ENGL CA- BLOADER (IR-Loader with an integrated microphone and power amp simulation), and feed this externally processed signal to a recording device or PA system.
- Page 6 Power Tube Fuses 2 x 0,16 AM (M: medium-blow) Important: Replace these with fuses with the same type and rating only! Tubes ENGL ECC83 First Quality (FQ) V2 / V3 / V4 ENGL ECC83 Selected V5 / V6 ENGL 6L6GC Hand-Matched Duet...
- Page 7 A FEW COMMENTS ON TUBE AMPLIFIERS Be sure to read this section before powering the amp up! This amp´s input is extremely sensitive due to its high gain factor. In combination with inherent micro- phonics of tubes, at certain settings this can elicit powerful feedback from the speakers – even without a guitar being connected! This occurs primarily when Crunch and Lead channels (that is, all channels whose preamp is easily overdri- ven) are activated and the following settings are dialed in:...
- Page 8 TROUBLESHOOTING The output volume fluctuates or drops: • Take all effect devices (in front of the preamp and FX Loop) out of the signal chain. • Check all used cables. • Check the used guitar or use another guitar. • Use a patch or guitar cable to patch the FX Send with the FX Return jack.
- Page 9 This packaging can be used several times - do not throw it away! Tubes When replacing the power amp tubes, the operating point (BIAS) must be set. If you use ENGL tubes with the same “grade”, the operating point does not have to be set.
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 www.engl-amps.com...
