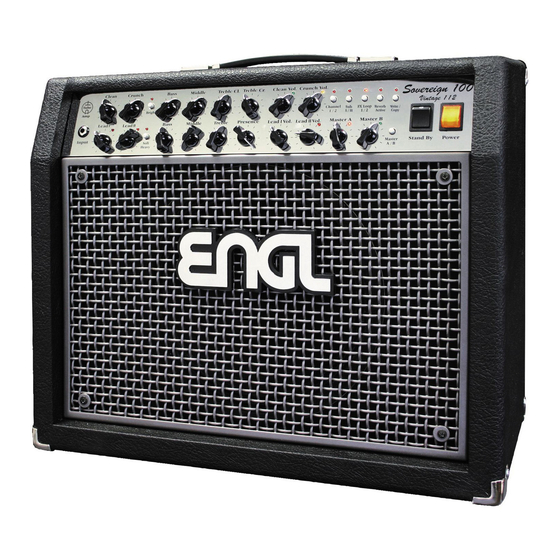

- Page 1 Sovereign 100 Tube Guitar Amplifier with MIDI-Control Operator´s Manual Please, first read this manual carefully!
- Page 2 Tube Tube Technology Technology...
-
Page 3: Table Of Contents
Table of Contents page Introduction 4, 5 Features and Functionality at a Glance Contents Front Panel Features: 6 - 8 Input; Clean and Crunch Channel Control Features Channel selection, Reverb, FX Loop 1/2 8, 9 Write/Copy 10 - 12 Lead I and Lead II Channel Control Features Power Amp section: Master A/B 12, 13 Stand By, Power... - Page 4 A/B Master switching that has proven its merits in countless ENGL amps (it has featured in E920 power amps since the late '80s and in the legendary SAVAGE 120 head since '93!). Your Sovereign Combo also sports...
-
Page 5: Features And Functionality At A Glance
Clean Crunch Lead I four fundamental sounds in finest tube quality Lead II , along with that comes courtesy of total freedom tonal expression with Presence knobs for both Lead channels, as Gain switching four-band EQ well as Clean Crunch enabling you to dial in two separate Treble knobs precisely the amount of high end you need... -
Page 6: Contents
Simply plug in, play and be inspired by the tone of your ENGL amp! A few words of wisdom from the designer: Though this amplifier is relatively easy to handle and you're probably raring to give it a go, I recommend that you read the owner's manual thoroughly before you power it up. - Page 7 A tip from the designer: The amount of distortion depends on your guitar's pickups. In Clean mode, single-coil pickups may begin saturating the preamp when the knob is set to about the two o'clock position; pickups with very high output levels (humbuckers or active pickups) will evoke mild overdrive at even lower settings.
- Page 8 Lead I Lead II ) is active. Channels may also be switched via MIDI program change, the ENGL Custom Z-9 Footswitch, or a dual footswitch. 12 Sub I/II Sub channel selector button; selects Sub Channel I or II: Depending on the main...
-
Page 9: Write/Copy
13 FX Loop 1/2 This button switches to and fro between FX Loop 1 FX Loop 2 . The red LED above the button lights up to indicate FX Loop 2 is on. You can also select loops via MIDI program change or Custom Z-9 Footswitch. - Page 10 successfully. You can cancel the copy operation by releasing the key, but only for as long as the LED lights up continuously. IMPORTANT note; please read and heed MIDI preset 1 activates when the amp is powered up. If you want to edit and/or store other MIDI presets, you must connect a MIDI foot board or another MIDI send device to the MIDI In...
- Page 11 18 Gain Lo/Hi Pressing this button ups input sensitivity, thereby increasing the amplification factor and the amount of distortion in both main channel 2's Lead I and Lead II modes. The LED above this button lights up to indicate Hi Gain is active.
- Page 12 You can also broaden the volume and tonal ranges by working your guitars' volume knob. If your arsenal includes MIDI gear - for instance, the ENGL Z- 15 MIDI Footcontroller - you can use the amp's master volume mute circuit to swiftly and conveniently set the power amp's level to 0 during short breaks or when switching axes.
- Page 13 into Output Power Amp 4 ohms 8 ohms 16 ohms (51, 52, 53). If none of these ports is in use, flipping the Standby switch will not activate the power amp. This ensures the amp is not operated without a connected load. In addition, an electronic surveillance system monitors the four power tubes.
-
Page 14: Rear Panel Features
This 5-pin DIN port accepts data sent by a MIDI sender (for example, the ENGL MIDI Z-12, Z-15, or Z-9 foot controllers) or from or routed through another MIDI device. Switch no. 34 lets you activate the amp's power supply if you have an ENGL MIDI foot controller connected to this port. - Page 15 Poly channel to OMNI mode and vice versa. 36 FOOTSWITCH: SERIAL AMP CONTROL PORT This serial data input accepts the Custom ENGL Z-9 Footswitch (optional), which lets you control various amp functions remotely. Connect the Z-9 Footswitch to the amp port using a cord equipped with stereo ¼"...
-
Page 16: Noise Gate Threshold Level
The MIDI In port is disabled when the Z-9 Footswitch is connected. A configuration table for the functions of the Sovereign 100 amp is printed on page 35. Connect only the ENGL Z-9 Footswitch to this 6.3 mm (1/4") stereo jack! - Page 17 Noise is a definite no-no in many situations. For example, studio etiquette demands that you keep a lid on extraneous noise during short breaks. It's in the nature of high- gain rigs to generate undesirable peripheral noise in overdriven channels. This is attributable to the physical properties of an amp's constituent components, in particular its active components.
- Page 18 wet signal (that is, the processed signal generated by the connected effect device) is patched to the power amp (serial, 100% wet). Set this knob to when this loop is not in use! NOTE: 42 FX LOOP 2 SEND Connect this FX Loop 2 output to a signal processor's input/return jack using the shortest possible shielded cord equipped with 1/4"...
- Page 19 A tip from the designer: The ENGL Sovereign's preamp and power amp supply two different signals. The reason for this is that the Presence control, the power tubes and output transformer all shape the power amp signal's tone. You may have to adjust the voicing controls on your amp, mixer desk or recorder to adjust the line out signal accordingly.
-
Page 20: Poweramp Output 4, 8 16 Ohms
mixing console or recording gear. The advantage of a balanced circuit is that it is immune to ground loops, provided of course it is wired correctly. You can also patch the line out signal to an unbalanced input using an adapter. To do this, you'll need a shielded cord equipped with an XLR connector and an RCA connector or ¼"... - Page 21 internal speaker (1x12", 8 ohms) connected to one of the 4-ohm jacks. When you unplug the cable for the external cabinet, ensure you plug the internal speaker back into one of the 8-ohm jacks! Summary: External 16 Z + internal 8 Z -> external to 8-ohm + internal to 4-ohm output.
-
Page 22: On The Subject Of Sounds And Settings
A few words from the designer on your ENGL Sovereign Amp's sounds and settings as well as some practical tips: On the Subject of Sounds and Settings A great deal of effort went into tuning this tremendously versatile combo amp; I devoted particularly painstaking attention to the details: The Clean and Crunch channels are matched so that their Gain ranges overlap somewhat;... -
Page 23: A Few Comments On The Noise Gate
Despite being so easy to use, the ENGL Sovereign 100 Amp puts into the hands of the innovative, creative guitarist an all but inexhaustible bonanza of sound-shaping resources. And I am convinced that... -
Page 24: Handling And Care
Programming sounds (settings, actually) to MIDI presets: For reasons of convenience and handling ease, we made programming sounds to MIDI presets a piece of cake. Because this amp offers many programmable switching functions, Copy is indeed a handy tool. It lets you copy the settings of one MIDI preset to another. -
Page 25: Glossary
Running the amp at mains voltages exceeding the nominal mains input voltage over longer periods can also shorten component life. Replace tubes with selected tubes that satisfy ENGL selection criteria to forestall microphonic properties, undesirable noise and unbalanced power amp signals. - Page 26 This foot board must like the ENGL Z-15 - be able to send MIDI controller 07 data. In order to afford access to Master Volume Mute, this function must be enabled using the corresponding encoding button on the back of the amp.
-
Page 27: Troubleshooting
You can set the encoding button (35) to OMNI reception to check if the preamp is actually receiving data. -> Is another foot board (the ENGL Z-9 or a two-way footswitch) connected and therefore blocking MIDI reception? The amp is not providing an output signal / no sound is emanating from the speaker. -
Page 28: Important Note Concerning The Cooling Fans
amp and another device that is grounded via a power plug of its own? Two or more circuits sharing a common electrical ground line can cause audible hum. If low-frequency noise is emanating from your rig, be sure to consult a specialist. ->... -
Page 29: Technical Data
MIDI controller 7 (main volume), value 0-5 = Master Volume Mute, Mute, value > 5 = default Master Volume level; Proprietary ENGL asynchronous data protocol Serial Amp Control: two fans each 12 Volts DC - 1,2 watts; Cooling: approx. 57,5 x 48 x 27 cm (l x h x d);... - Page 30 Tube Map: cooling fan output connector transformer power transformer amp chassis electrolytic capacitor: reverb main connector: as viewed anode supply red plug -> reverb spring input from above; smoothing black plug -> reverb spring output Front panel, Input the tubes and their function: V 5 - ECC83 (12AX7): input stage, 2.
-
Page 31: Wiring Of Principal Connectors
Pin 2 - power supply page: 14 approx.11 volts AC * *: AC voltage is routed to pin 1 and 2 only when button 34 is set to ENGL MIDI Footcontroller. Dual Footswitch (37) Serial Amp Control Port (36) Stereo Stereo 1/4"... - Page 32 "0". or quit the mode with "9". 1. MIDI foot board (for example, the ENGL Z-12 or ENGL Z-15 pictured above): Connect the foot board to the amp using a standard 5-pin DIN cable. All 5 terminals of both connectors must be wired in a 1:1 configuration: MIDI data transmission requires two wires, and the ENGL MIDI foot board uses two more wires for purposes of power supply.
- Page 33 Noting Settings: Clean Crunch Bass Middle Treble Cl. Treble Cr. Clean Vol. Crunch Vol. Sovereign 100 Tube Vintage 112 Bright Channel FX Loop Reverb Write / 1 / 2 I / II 1 / 2 Active Copy Lead I Lead II...
- Page 34 <----- 9 -----> 11 12 13 14 15 Clean Crunch Bass Middle Treble Cl. Treble Cr. Clean Vol. Crunch Vol. Sovereign 100 Tube Vintage 112 Bright Channel FX Loop Reverb Write / 1 / 2 I / II 1 / 2...
- Page 35 Column 1 lists the Function button on the Z-9. Column 2 lists the sound-shaping and special functions that can be assigned to it. Column 2 lists sound-shaping and special functions on the ENGL Sovereign 100 Amp that can be controlled remotely via the Z-9 Custom Footswitch.
- Page 36 Tube Tube Technology Technology Gerätebau GmbH Germany Internet: http://www.engl-amps.com Text, design, graphics, photography and layout by Horst Langer, Amp Designer...
Need help?
Do you have a question about the SOVEREIGN 100 and is the answer not in the manual?
Questions and answers

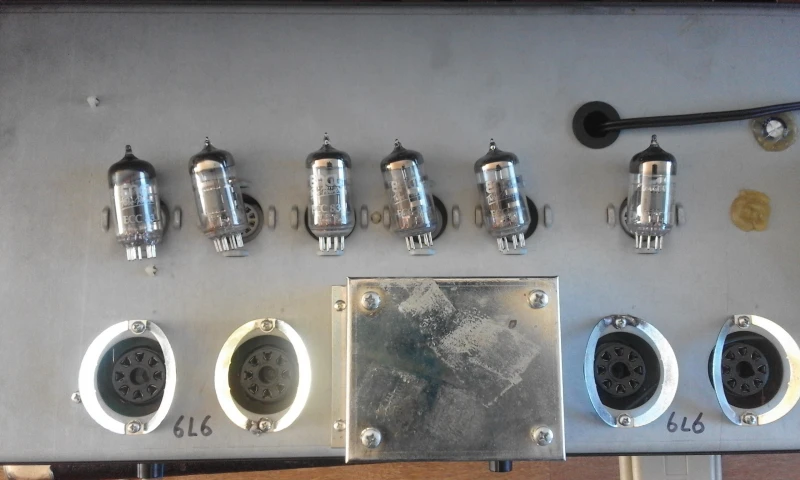

My pre amp has 5x ECC83 and 1x 7025/ 12AX7WA...why 6 six tubes? I want to change it, do I have to use the same tubes? The manual shows 4x ECC83 tubes
