USER MANUAL

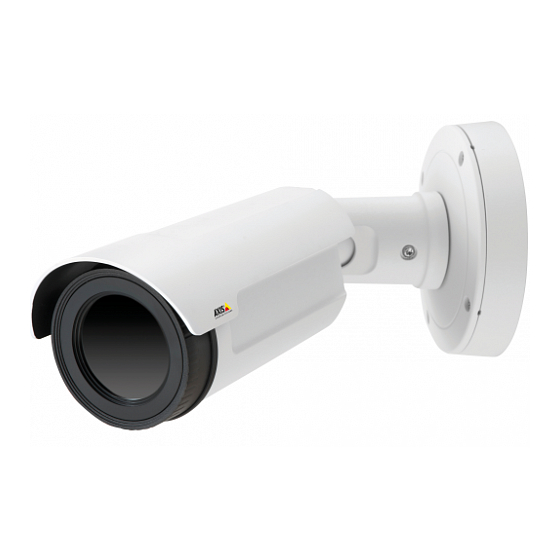

AXIS Q1931–E Thermal Network Camera

Advertisement

Table of Contents
loading

Related Manuals for Axis Q1931–E

Summary of Contents for Axis Q1931–E

  • Page 1 USER MANUAL AXIS Q1931–E Thermal Network Camera...
  • Page 2 Radio frequency emission when installed according to the systems may also be beneficial, for developing shell scripts and instructions and used in its intended environment. applications. Later versions of this document will be posted to the Axis • Immunity to electrical and electromagnetic phenomena when website, as required.
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff (selected countries only) •...

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    AXIS Q1931–E Thermal Network Camera Hardware Overview Hardware Overview Power connector I/O and audio terminal connector Network connector Status indicator LED MicroSD memory card slot Control button Foot Mounting bracket Connectors For technical specifications, see page 53. Network connector - RJ45 Ethernet connector. Supports Power over Ethernet (PoE).

  • Page 6: Led Indicators

    Resetting the product to factory default settings. See page 46. • • Connecting to an AXIS Video Hosting System service. See page 39. To connect, press and hold the button for about 1 second until the Status LED flashes green. •...

  • Page 7: Accessing The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 8: Access From The Internet

    Set the Root Password To access the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which appears when the product is accessed for the first time.
  • Page 9 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC), on page 11 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 10 Microphone button – Click to mute or unmute the microphone. In Simplex - speaker only mode, the Microphone and Talk buttons must both be active to send audio to the Axis product. Click either button to stop audio transmission. Use the slider to control the volume of the speakers and the microphone.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS Q1931–E Thermal Network Camera Media Streams The AMC Control Panel can be used to configure various video and audio settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...

  • Page 13: Accessing Audio Streams

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime adds latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Setting Up The Product

    Setting Up the Product Setting Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video And Audio

    AXIS Q1931–E Thermal Network Camera Video and Audio Video and Audio The video and audio settings can be used to optimize video and audio quality. You can configure the following: • Video stream settings. See page 15. • Stream profiles. See page 17.
  • Page 16 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 17: Stream Profiles

    To select a default stream profile for the Live View page, go to Setup > Live View Config. Camera Settings The Video & Audio > Camera Settings page provides access to advanced image settings for the Axis product. Image Appearance The image Brightness can be adjusted in the range 0–100, where a higher value produces a brighter image.
  • Page 18 To set up a dynamic mask, which will always mask the specified part of monitored area, see Privacy Mask, on page 19 To use an overlay image, the image must first be uploaded to the Axis product: 1. Go to Video & Audio > Overlay Image.

  • Page 19: Privacy Mask

    Half-duplex - Audio can be transmitted to and from the Axis product but only in one direction at a time. To transmit audio using the Live View page, use the Talk and Listen buttons, see AMC Audio Controls, on page 10.

  • Page 20: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see...
  • Page 21 AXIS Q1931–E Thermal Network Camera Video and Audio Note Audio clips cannot be used if the product’s audio functionality is enabled. The audio functionality is enabled on the Audio tab under Video & Audio > Video Stream.

  • Page 22: Live View Config

    AXIS Q1931–E Thermal Network Camera Live View Config Live View Config You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of the Live View page. • Stream Profile. See page 17.
  • Page 23 Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 24 Live View Config For more information about I/O ports, see I/O Ports, on page 44. Note A multi-connector cable (available from Axis) is required when connecting external I/O devices to the Axis product. See Multi-Connector Cable (sold separately), on page 47...

  • Page 25: Detectors

    Motion Detection Parameters, on page 26. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Setting Up an Action Rule, on page 30.

  • Page 26: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 27: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 28 AXIS Q1931–E Thermal Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 29: Events

    Events The Axis product can be configured to perform actions when different events occur, for example, start a recording when motion is detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.

  • Page 30: Setting Up An Action Rule

    AXIS Q1931–E Thermal Network Camera Events Available actions include: • Output Port — activate an I/O port to control an external device. • Overlay Text — display an overlay text, see Using Overlay Text in an Action Rule, on page 18.

  • Page 31: Recipients

    AXIS Q1931–E Thermal Network Camera Events Recipients Recipients receive media files and notification messages. The following recipients are available: Recipient Use with action Email Send Images Send Notification Send Video Clip Send Images Send Video Clip HTTP Send Images Send Notification...

  • Page 32: Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates, on page 36.

  • Page 33: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. See Storage, on page 43 for more information about storage devices. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 34: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 35: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 36 Axis product: Server/Client certificates - to authenticate the Axis product CA certificates - to authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 37: Date & Time

    2. Click Install certificate and upload the certificate. Audio Support Select Enable audio support to allow clients to retrieve audio streams from the Axis product. For information on how to configure audio settings, see Audio Settings, on page 19. Note Deselecting this option will disable audio globally in the Axis product, for configured events and profiles with audio as well.

  • Page 38: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.

  • Page 39: Advanced Tcp/Ip Settings

    To make manual settings, select Use the following DNS server address and specify the following: Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separated by semicolons. The host name is always the first part of a fully qualified domain name, for example, myserver is the host name in the...
  • Page 40 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 41 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 42 To use SNMP v3, HTTPS must be enabled, see HTTPS, on page 35. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings, on page 46. UPnP The Axis product includes support for UPnP .

  • Page 43: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The Axis product supports SD cards with the following file systems: ext4 — recommended due to its resilience against data loss if the card is ejected or if there is abrupt power loss. To access •...

  • Page 44: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 45: Support

    System Overview To get an overview of the Axis product’s status and settings, go to System Options > Support > System Overview. Information that can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log items.

  • Page 46: Reset To Factory Default Settings

    System Options File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 47: Multi-Connector Cable (Sold Separately)

    Multi-Connector Cable (sold separately) Multi-Connector Cable (sold separately) When connecting external equipment to the Axis product, a multi-connector cable (available from Axis) is required in order to maintain the product’s IP rating. The multi-connector cable can be purchased from your Axis reseller.
  • Page 48 AXIS Q1931–E Thermal Network Camera Multi-Connector Cable (sold separately) Connection diagram I/O configured as input I/O configured as output I/O connector...

  • Page 49: Troubleshooting

    Always read the upgrade instructions and release notes available with each new release, before upgrading the firmware. To upgrade, follow these instructions: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2.

  • Page 50: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 51 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 52 AXIS Q1931–E Thermal Network Camera Troubleshooting The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product. See Technical Specifications, on page 53. Video and image problems, general Image unsatisfactory Check the video stream and camera settings under Setup > Video & Audio > Video Stream and Setup >...

  • Page 53: Technical Specifications

    AXIS Q1931–E Thermal Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Models AXIS Q1931–E Image sensor Uncooled Micro bolometer 384x288 pixels, pixel size 17 µm Lens 7 mm: f 1.2 FoV horizontal 55°, Vertical 40° 13 mm: f 1.0 FoV horizontal 28°, Vertical 21°...
  • Page 54 Open API for software integration, including the ONVIF specification available at Integration Programming www.onvif.org, as well as VAPIX® and AXIS Camera Application Platform from Axis Interface Communications, specifications available at www.axis.com Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection Intelligent video Video motion detection, audio detection.

  • Page 55: Performance Considerations

    RJ45 network cable, 5 m Tools Torx T20 screwdriver Video AXIS Camera Companion (software included on CD) — Basic surveillance for small management businesses, where video is recorded to edge storage software AXIS Camera Station (sold separately) — Fully featured surveillance for medium-sized...
  • Page 56 AXIS Q1931–E Thermal Network Camera Technical Specifications • Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected.
  • Page 57 User Manual Ver. M1.17 AXIS Q1931–E Thermal Network Camera Date: July 2013 © Axis Communications AB, 2013 Part No. 52747...
