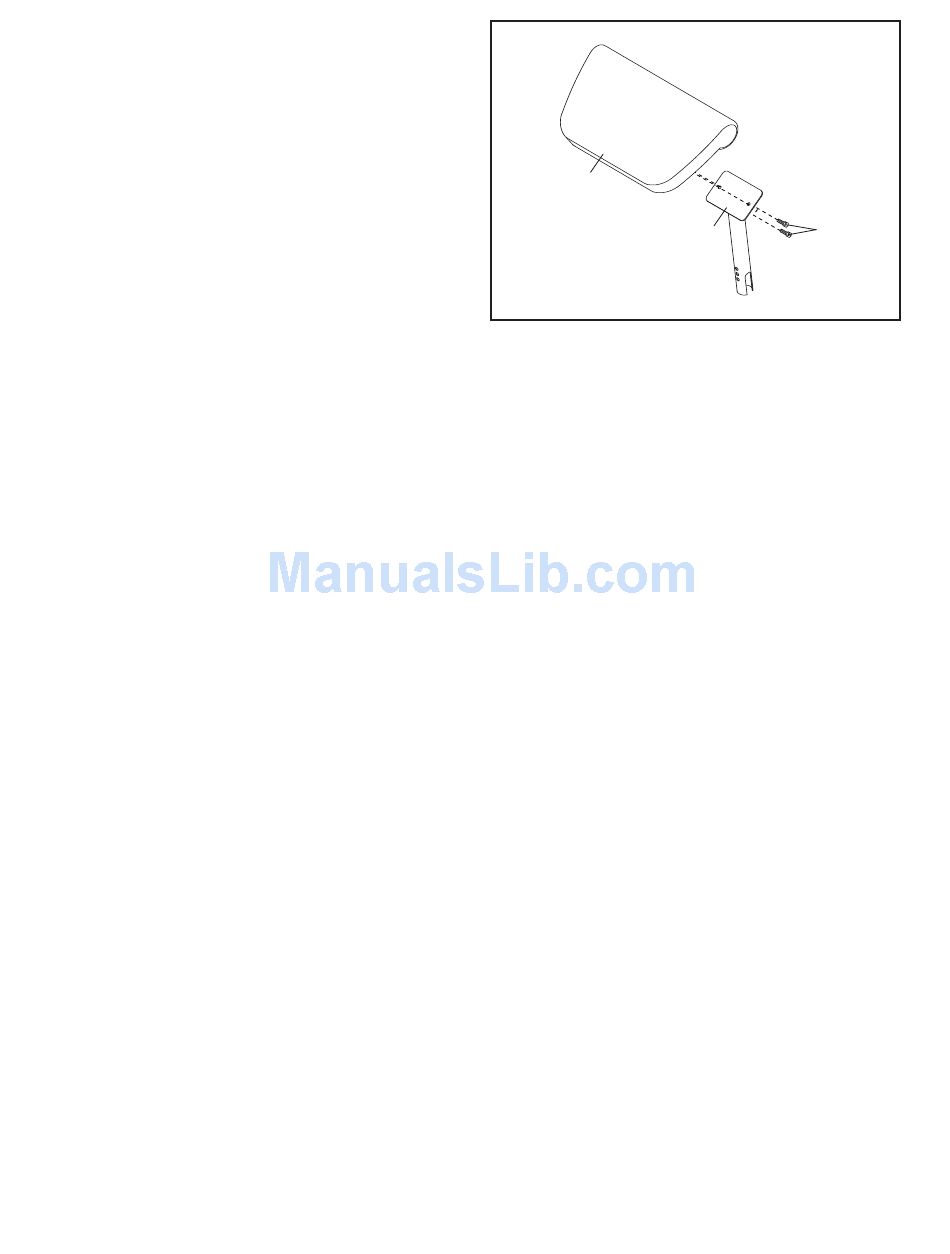

34. Orient the Curl Pad (14) so that the holes on the
back are closer to the lower edge. Attach the Curl
Pad to the Curl Post (13) with two M6 x 16mm
Screws (62).
35. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 18.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT:
If the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAM on page 21 for proper cable routing. If there is any slack in the cables, remove the
slack by tightening the cables (see MAINTENANCE on page 22).
