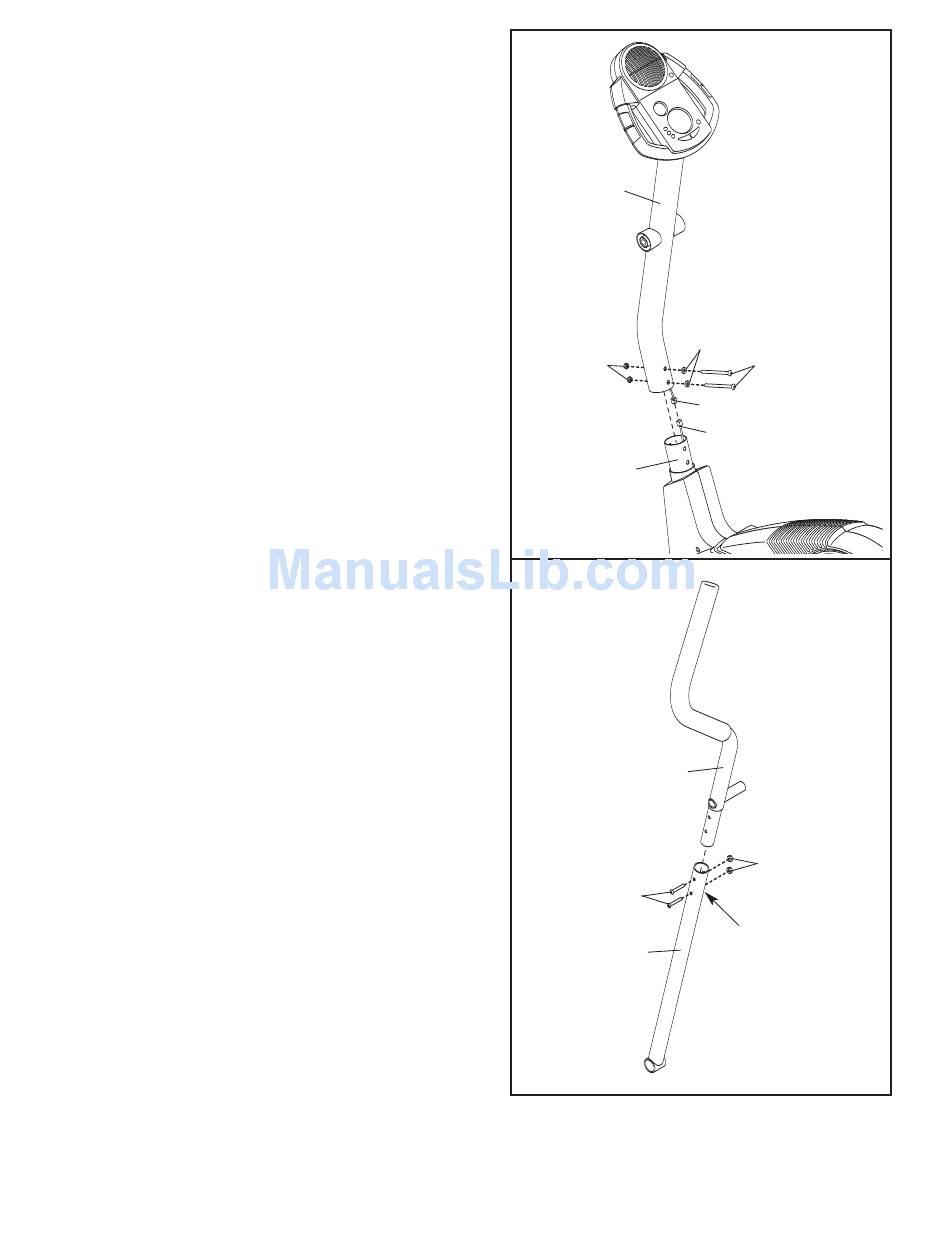

5. Whilst another person holds the Upright (2) near the
Frame (1) as shown, connect the Upper Wire (44) to
the Lower Wire (70).
Slide the Upright (2) onto the Frame (1); be careful
not to pinch the Wires (44, 70). Attach the Upright
with two M10 x 76mm Button Bolts (27), two M10
Split Washers (59), and two M10 Nylon Locknuts (33).
Do not tighten the Button Bolts yet.
6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Arms (5); make sure that the Handlebar
Arm is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Arm with two M8 x 45mm Button Bolts
(50) and two M8 Nylon Locknuts (38). Make sure
that the Nylon Locknuts are inside of the hexago-
nal holes. Do not fully tighten the Button Bolts
yet.
Attach the Right Handlebar to the other Handlebar
Arm (not shown) in the same way.
5
2
33
1
6
50
5
6
Make sure that
the wires do not
get pinched and
damaged during
this step.
59
27
44
70
6
38
Hexagonal
Holes
