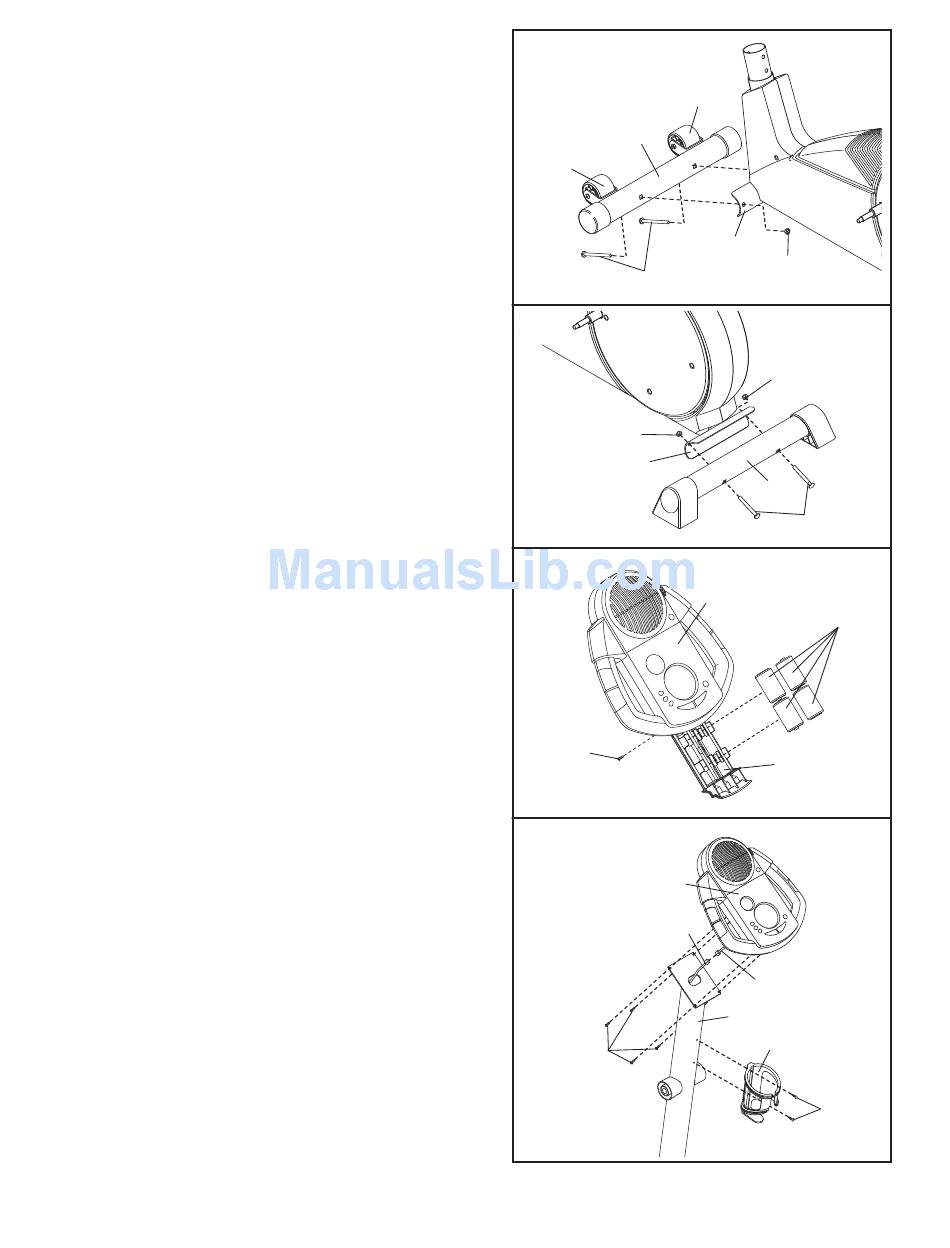

1. Identify the Front Stabiliser (10). Whilst another per-
son lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm
Carriage Bolts (34) and two M10 Nylon Locknuts
(33). Make sure that the Front Stabiliser is turned
so the Wheels (22) are not touching the floor.
2. Whilst another person lifts the back of the Frame (1)
slightly, attach the Rear Stabiliser (9) to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33).
3. The Console (23) requires four "D" batteries (not
included); alkaline batteries are recommended.
Remove the screw from the battery drawer, pull the
battery drawer open, and insert four batteries. Make
sure that the batteries are oriented as shown by
the markings inside the battery drawer. Close the
battery drawer and reattach the screw. Note: When
the batteries are installed correctly, the fan will turn on
for a moment.
4. Hold the Console (23) near the Upright (2). Connect
the console wire to the Upper Wire (44). Insert the
excess wire into the Upright.
Attach the Console (23) to the Upright (2) with four
M4 x 16mm Screws (52). Be careful to avoid
pinching the wires.
Attach the Water Bottle Holder (63) to the Upright (2)
with two M4 x 22mm Screws (42).
1
10
22
34
2
33
1
3
Screw
4
52
5
22
1
33
33
9
34
23
Batteries
Battery
Drawer
23
44
Console Wire
2
63
42
