NordicTrack Revitalize Inversion System 2.0 User Manual page 7

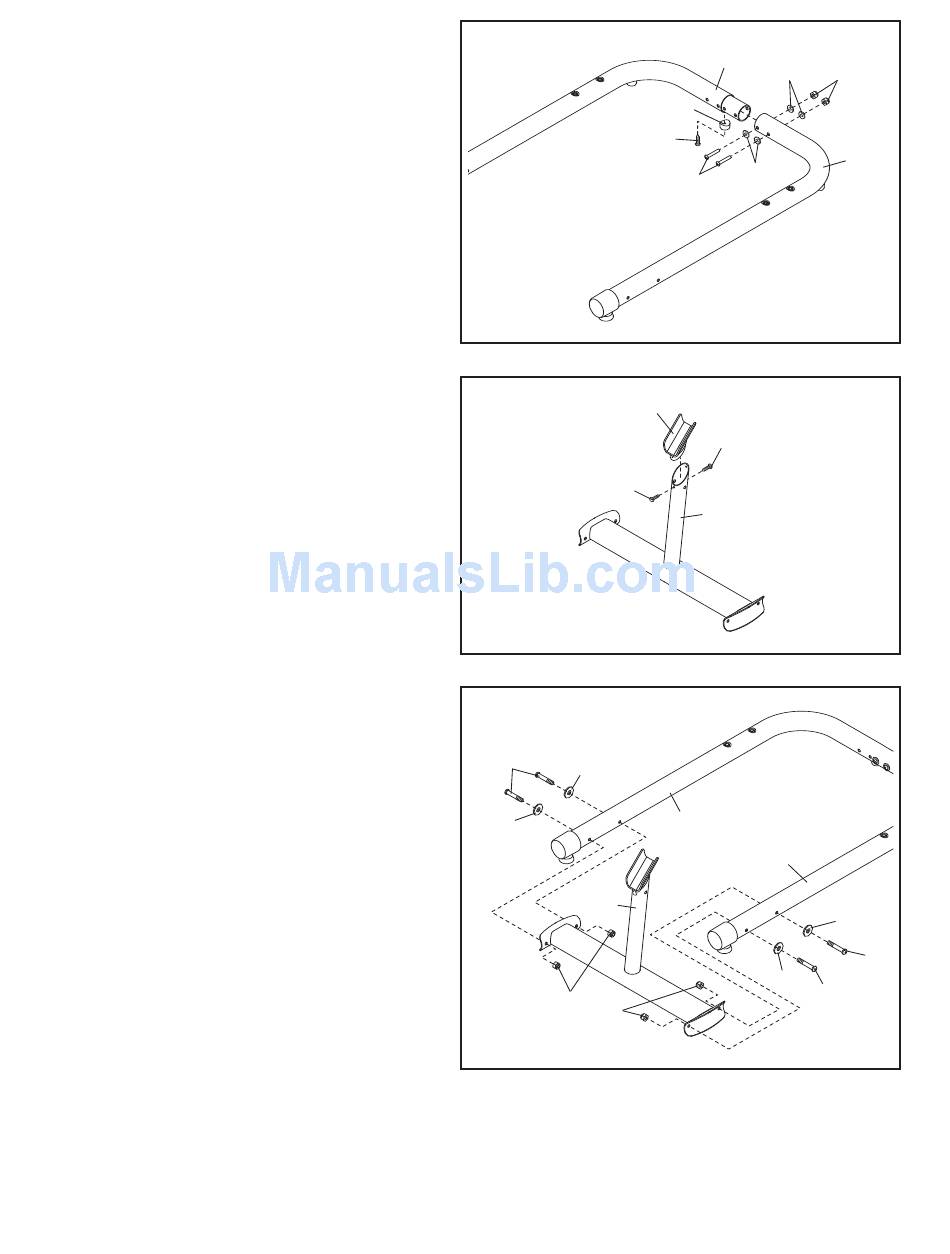

2. Attach the Left Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
M10 Curved Washers (50), and two M10
Locknuts (65). Do not tighten the Locknuts
yet.
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (59).
3. Attach the Support Bracket (15) to the Center
Base (3) with two M4 x 15mm Screws (58).
4. Attach the Center Base (3) to the Left and
Right Bases (1, 2) with four M10 x 80mm
Button Bolts (52), four M10 Curved Washers
(50), and four M10 Locknuts (65). Do not
tighten the Locknuts yet.
