PART IDENTIFICATION CHART

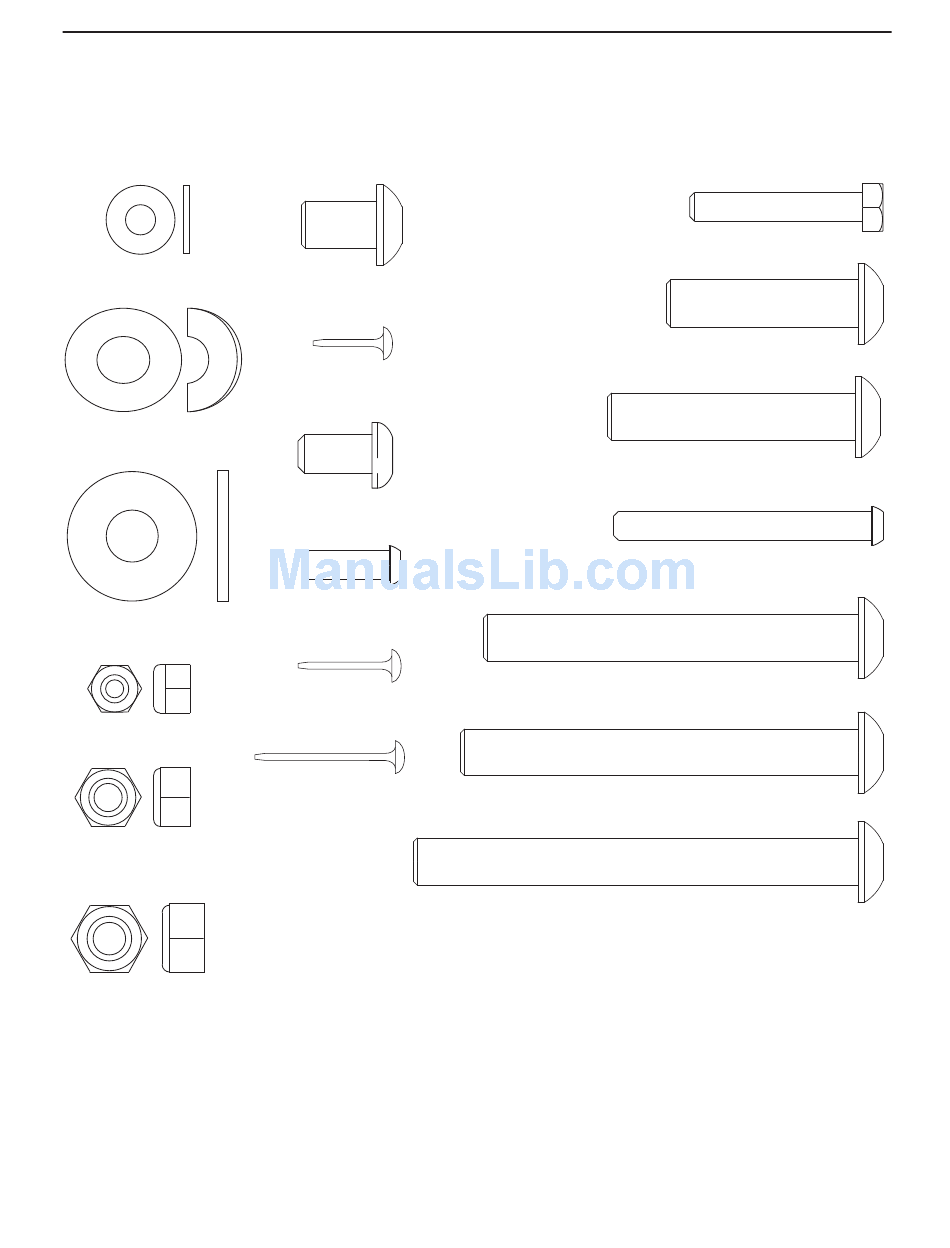

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may
have been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M6 Washer (62)
M10 Curved Washer (50)
M10 Large Washer (64)
M6 Nut (43)
M8 Locknut (57)
M10 Locknut (65)
M10 x 16mm
Button Screw (54)
M4 x 15mm
Screw (58)
M8 x 16mm
Button Bolt (61)
M6 x 18mm
Button Screw (55)
M4 x 20mm
Screw (59)
M4 x 30mm
Screw (63)
M10 x 40mm Button Bolt (69)
M10 x 53mm Button Bolt (49)
M6 x 55mm Button Screw (56)
M10 x 80mm Button Bolt (52)
M10 x 85mm Button Bolt (51)
M10 x 95mm Button Bolt (53)
5
M6 x 37mm Bolt (33)
