Using the TMA 1600-III
NOTE: If you purchased a standard ScanMaker 1000XL Plus without the TMA 1600-III, see only the section on
positioning reflective materials without the TMA 1600-III, on page 5.
I. Installing the TMA 1600-III
1. Make sure that the scanner power is turned off.

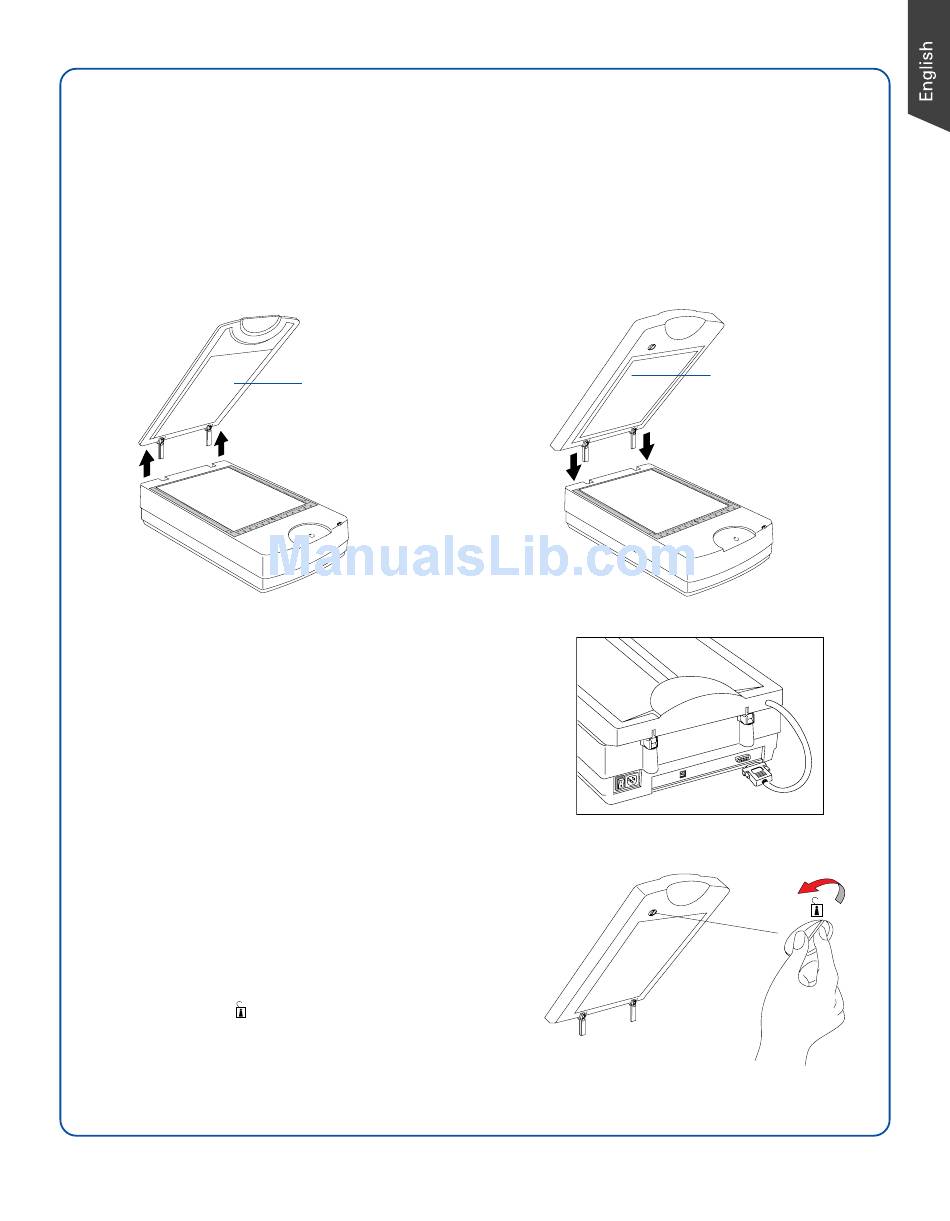

2. Remove the scanner lid, then attach the TMA 1600-III by sliding the posts at the rear of the TMA 1600-
III into the holes.
3. Plug the connector of the TMA 1600-III into the scanner's
15-pin accessory port.
II. Unlocking the TMA 1600-III
1. Remove the yellow "Step 3" sticker from the TMA
1600-III.
2. Look for the locking knob at the base of the TMA
1600-III.
3. Turn the locking knob counterclockwise to the
unlock position " ".
NOTE: If you need to transport your TMA 1600-III, you will have to
lock it back. For more details, please see the ScanMaker 1000XL
Plus User Guide.
Scanner lid
3
TMA 1600-III
