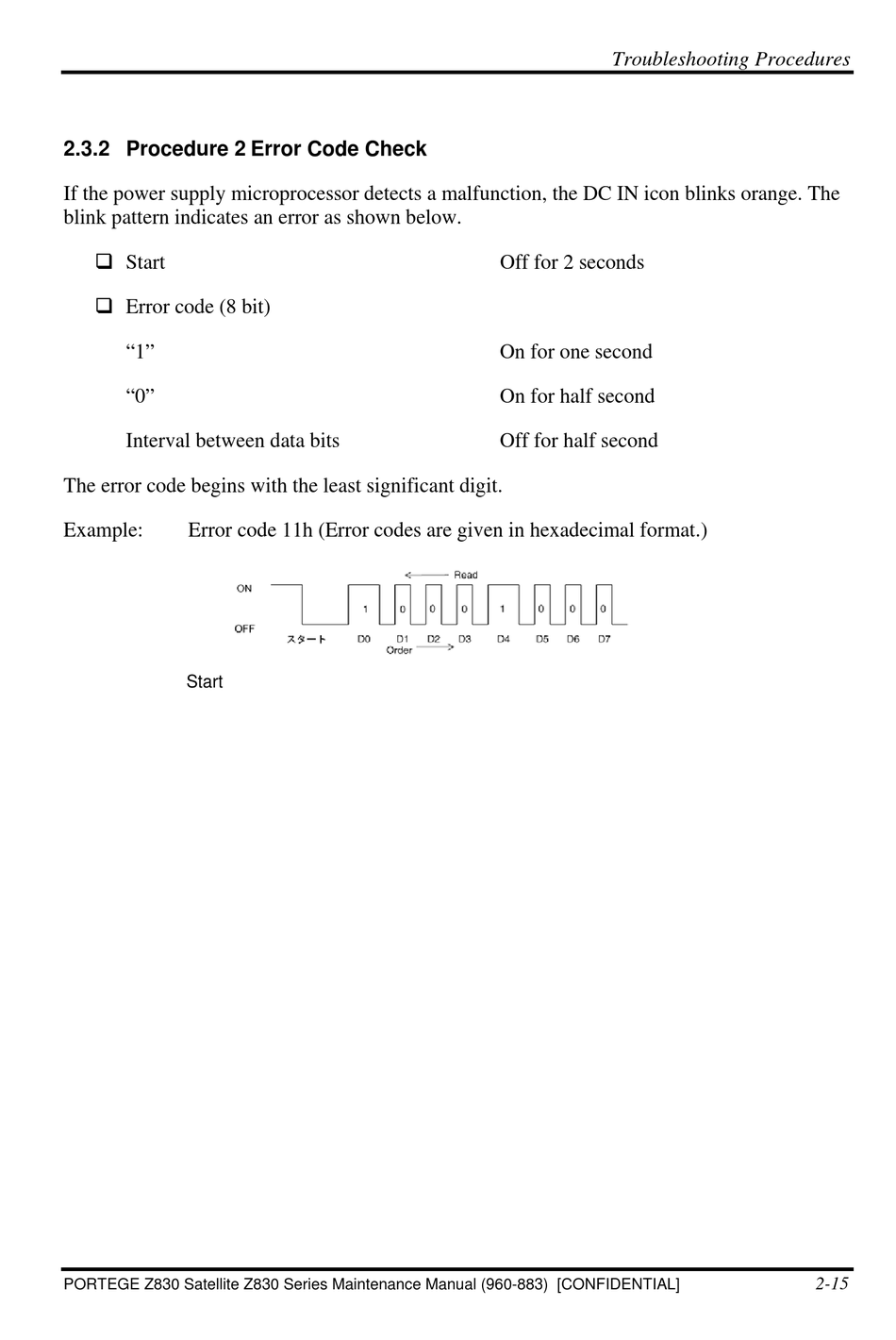

2.3.2 Procedure 2 Error Code Check

If the power supply microprocessor detects a malfunction, the DC IN icon blinks orange. The
blink pattern indicates an error as shown below.
 Start
 Error code (8 bit)
"1"
"0"
Interval between data bits
The error code begins with the least significant digit.
Example: Error code 11h (Error codes are given in hexadecimal format.)
Start
PORTEGE Z830 Satellite Z830 Series Maintenance Manual (960-883) [CONFIDENTIAL]
Troubleshooting Procedures
Off for 2 seconds
On for one second
On for half second
Off for half second
2-15
